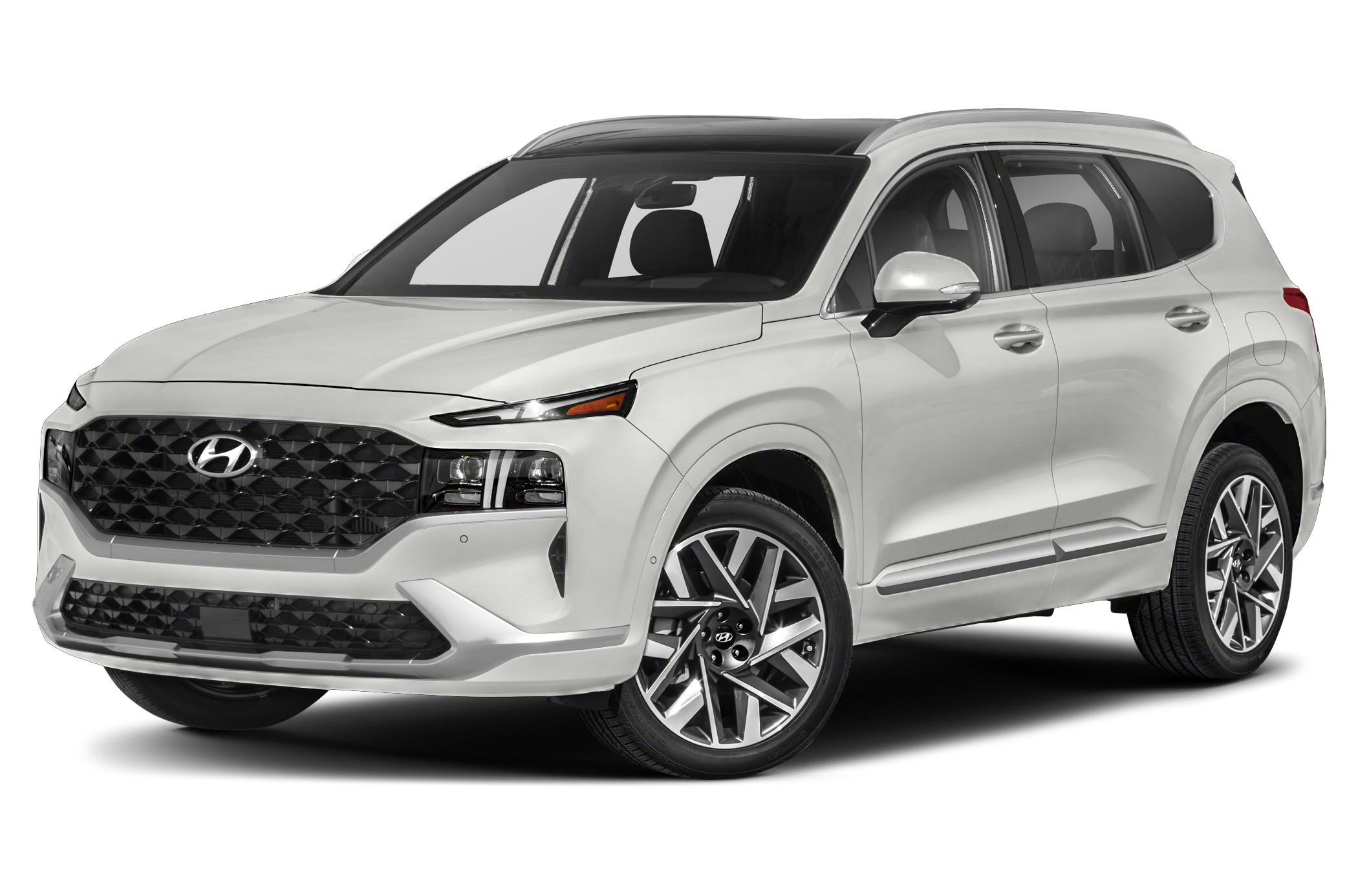

2022 Hyundai SANTA FE SE specs & colors
Sport Utility
MSRP
- SE FWD *Ltd Avail*
- $27,200
- SE FWD
- $27,700
- SE AWD *Ltd Avail*
- $28,900
- SE AWD
- $29,400
- SEL FWD
- $29,450
- SEL AWD
- $31,150
- XRT FWD
- $32,750
- XRT AWD
- $34,450
- Limited FWD
- $39,410
- Limited AWD
- $41,110
- Calligraphy FWD
- $41,410
- Calligraphy AWD
- $43,110
Key specs
Color options
Interior
Gray
Black
Black / Beige
Packages
$0
Starting MSRP
- standard equipment
$205
Starting MSRP
- Cargo Tray
- Cargo Net
- First Aid Kit
Specifications
Highlights
|
Regular Unleaded I-4
Engine Type
|
|
22 City / 25 Hwy
MPG
|
|
191 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Drum - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
14 in
Front Brake Rotor Diam x Thickness
|
|
12 in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
150
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
2.5 L/152
Displacement
|
|
Regular Unleaded I-4
Engine Type
|
|
191 @ 6100
SAE Net Horsepower @ RPM
|
|
181 @ 4000
SAE Net Torque @ RPM
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
22 City / 25 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
|
Optional
Bluetooth®
|
Measurements
|
39 in
Second Head Room
|
|
41 in
Front Head Room
|
|
59 in
Front Shoulder Room
|
|
65 in
Track Width, Front
|
|
N/A
Cargo Area Width @ Beltline
|
|
42 in
Second Leg Room
|
|
8 in
Min Ground Clearance
|
|
N/A
Liftover Height
|
|
66 in
Height, Overall
|
|
58 in
Second Shoulder Room
|
|
188 in
Length, Overall
|
|
58 in
Front Hip Room
|
|
44 in
Front Leg Room
|
|
56 in
Second Hip Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
75 in
Width, Max w/o mirrors
|
|
N/A
Cargo Volume to Seat 3
|
|
109 in
Wheelbase
|
|
5
Passenger Capacity
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
65 in
Track Width, Rear
|
|
112 ft³
Passenger Volume
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Rear Door Opening Height
|
|
36 ft³
Cargo Volume to Seat 2
|
|
72 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
Safety
|
Standard
Stability Control
|
|
Optional
Blind Spot Monitor
|
|
Standard
Lane Departure Warning
|
|
Standard
Backup Camera
|
|
Optional
Rear Cross Traffic Alert
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Lock to Lock Turns (Steering)
|
|
N/A
Steering Ratio (:1), Overall
|
|
37 ft
Turning Diameter - Curb to Curb
|
|
Rack-Pinion
Steering Type
|
Suspension
|
Strut
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
|
Multi-Link
Suspension Type - Rear
|
|
Strut
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
P235/60TR18
Rear Tire Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
P235/60TR18
Front Tire Size
|
|
18 X 7.5 in
Rear Wheel Size
|
|
Compact
Spare Tire Size
|
|
18 X 7.5 in
Front Wheel Size
|
|
Compact in
Spare Wheel Size
|
Weight & Capacity
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
18 gal
Fuel Tank Capacity, Approx
|
|
200 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight
|
|
200 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
0 lbs
Total Option Weight
|
|
3,799 lbs
Base Curb Weight
|
|
2,000 lbs
Maximum Trailering Capacity
|
|
2,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Curb Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
2,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Maximum Payload Capacity
|
Compare trims
Wondering which trim is right for you?
Our 2022 Hyundai SANTA FE trim comparison will help you decide.
