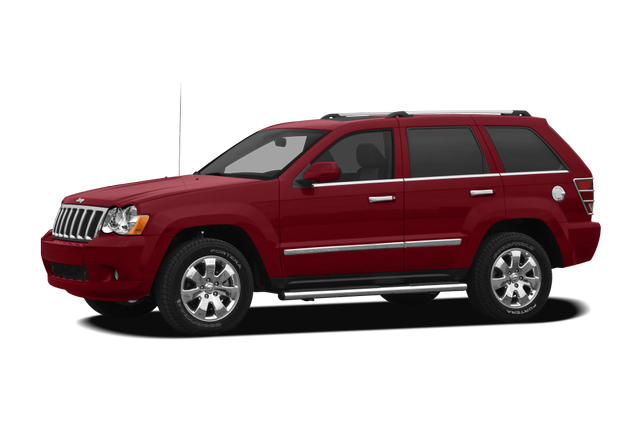

2009 Jeep Grand Cherokee Overland specs & colors

Sport Utility

Change trim

MSRP

Change trim

$41,410

Starting MSRP
Current listing price

Showing the 2009 Jeep Grand Cherokee RWD 4dr Overland *Ltd Avail*

Shop Now

Color options

Exterior

Interior

Dark Slate Gray

Dark Khaki / Light Graystone

Packages

22P CUSTOMER PREFERRED ORDER SELECTION PKG

$0

Starting MSRP

3.0L V6 turbo diesel engine
5-speed auto trans

25P CUSTOMER PREFERRED ORDER SELECTION PKG

$0

Starting MSRP

5.7L "Hemi" V8 engine
5-speed auto trans

25P CUSTOMER PREFERRED ORDER SELECTION PKG

$0

Starting MSRP

5.7L "Hemi" V8 engine
5-speed auto trans

Specifications

Front Wheel Material	Aluminum
Rear Wheel Material	Aluminum
Spare Wheel Material	Aluminum
Front Wheel Size	18 x 7.5 in
Rear Wheel Size	18 x 7.5 in
Spare Wheel Size	18 x 7.5 in

EPA MPG Equivalent - Combined	N/A
Fuel Economy Est-Combined	16 MPG
EPA MPG Equivalent - Hwy	N/A
EPA MPG Equivalent - City	N/A
Cruising Range - City	295.40 mi
Cruising Range - Hwy	400.90 mi
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - City	14 MPG
EPA Fuel Economy Est - Hwy	19 MPG

Trans Type	5
Fourth Gear Ratio (:1)	0.75
Drivetrain	Rear Wheel Drive
Final Drive Axle Ratio (:1)	3.73
Reverse Ratio (:1)	3.00
Third Gear Ratio (:1)	1.00
Fifth Gear Ratio (:1)	0.67
First Gear Ratio (:1)	3.00
Trans Description Cont.	Automatic w/OD
Second Gear Ratio (:1)	1.67 & 1.50

Rear Brake Rotor Diam x Thickness	12.6 x 0.6 in
Front Brake Rotor Diam x Thickness	12.9 x 1.2 in
Disc - Rear (Yes or )	Yes
Brake ABS System (Second Line)	N/A
Brake Type	Power
Brake ABS System	4-Wheel
Disc - Front (Yes or )	Yes

Wt Distributing Hitch - Max Trailer Wt.	7400 lbs
Maximum Trailering Capacity	N/A lbs
Dead Weight Hitch - Max Trailer Wt.	N/A lbs
Dead Weight Hitch - Max Tongue Wt.	N/A lbs
Wt Distributing Hitch - Max Tongue Wt.	740 lbs

Cargo Volume to Seat 2	29.5 ft³
Min Ground Clearance	N/A in
Length, Overall	188.0 in
Wheelbase	109.5 in
Second Shoulder Room	58.5 in
Front Hip Room	56.2 in
Cargo Area Length @ Floor to Seat 1	N/A in
Track Width, Front	62.0 in
Cargo Box (Area) Height	N/A in
Cargo Box Width @ Wheelhousings	N/A in
Rear Door Opening Height	N/A in
Width, Max w/o mirrors	85.5 in
Front Head Room	39.7 in
Passenger Volume	108.9 ft³
Track Width, Rear	62.0 in
Rear Door Opening Width	N/A in
Second Leg Room	34.2 in
Second Hip Room	55.3 in
Front Shoulder Room	59.1 in
Height, Overall	68.9 in
Cargo Area Width @ Beltline	N/A in
Cargo Volume to Seat 1	66.8 ft³
Front Leg Room	41.7 in
Liftover Height	33.4 in
Passenger Capacity	5
Cargo Area Length @ Floor to Seat 2	N/A in
Second Head Room	39.3 in

Auto dimming rearview mirror w/microphone	Optional
Bright front license plate brow	Optional
18" x 7.5" aluminum chrome clad wheels	Optional
Cloth covered headliner	Standard
Trailer sway damping	Optional
Pwr adjustable pedals w/memory	Optional
Pwr sunroof	Optional
Bright belt molding	Optional
Rear wheel drive	Standard
Cargo compartment cover	Standard
Chrome bodyside molding	Optional
Sirius satellite radio-inc: 1-year service	Standard
Parksense rear park-assist system	Optional
Glove box lamp	Standard
245/60R18 all-terrain OWL tires	Optional
Body color sill molding	Optional
Overhead console	Standard
Deluxe insulation group	Standard
Parkview rear back-up camera	Optional
Vehicle info center	Standard
Front & rear 12-volt pwr outlets	Optional
Tire pressure monitoring display	Optional
Illuminated entry	Standard
160-amp alternator	Standard
(6) Boston Acoustics speakers	Optional
Universal garage door opener	Optional
Wood & leather-wrapped steering wheel w/audio controls	Optional
Tinted sunscreen glass	Standard
Cargo net	Optional
Pwr door locks	Standard
Rain sensing windshield wipers	Optional
Luxury door trim panel	Optional
Class IV receiver hitch	Optional
Child safety rear door locks	Standard
Fog lamps	Optional
Pwr rack & pinion steering	Standard
Floor carpeting	Standard
5-speed automatic transmission (N/A w/EXL Engine)	Optional
5.7L "Hemi" multi-displacement V8 engine -inc: variable valve timing, hydraulic engine cooling (REQ: NAS Emissions)	Optional
Rear window defroster	Standard
Hydraulic engine cooling	Optional
3.73 axle ratio	Optional
Deep-tint sunscreen glass	Standard
Remote keyless entry	Standard
Air conditioning w/dual zone automatic temp control	Optional
Rear reading lamp	Standard
Locking glove box	Standard
Pwr accessory delay	Standard
Bright side roof rails w/adjustable crossbars	Optional
Fixed long mast antenna	Standard
LATCH-ready child seat anchor system	Standard
Enhanced accident response system unlocks the doors, shuts off the fuel pump and turns on interior lights after airbag deploys	Standard
Dual note horn	Standard
Dual illuminated visor vanity mirrors	Optional
Traveler/mini trip computer	Standard
Remote start	Optional
Sirius satellite traffic-inc: 1-year service	Optional
UConnect hands-free communication	Optional
Luxury front & rear floor mats w/logo	Standard
"Flipper" liftgate glass	Standard
Supplemental side curtain air bags	Standard
Pwr front windows w/(1) touch up/down feature	Standard
Full-length floor console	Standard
Anti-lock 4-wheel disc brakes w/brake assist	Standard
Child seat upper tether anchorages	Standard
Trailer tow group-inc: 7 & 4 pin wiring harness, class IV receiver hitch	Optional
Tip start system	Standard
Dash liner insulation	Optional
Security alarm	Optional
625-amp maintenance-free battery	Standard
Rear window wiper/washer	Standard
Smartbeam headlamps	Optional
Passenger assist handles	Standard
Cargo compartment lamp	Standard
MyGig multimedia system -inc: AM/FM stereo w/6-disc in-dash CD/DVD changer, touch-screen display, MP3 playback, hard disc drive, auxiliary audio input, 276-watt amp, navigation system	Optional
Automatic headlamp leveling system	Optional
Speed control	Standard
Tilt/telescoping steering column	Standard
Fold-away auto-dimming heated pwr body color mirrors w/memory	Optional
Electronic stability program	Standard
Sentry Key theft deterrent system	Standard
60/40 folding rear seat	Standard
Pwr steering cooler	Standard
Carpeted cargo area	Standard
Black windshield molding	Optional
Body color fascias w/bright insert	Optional
Dana 44/226mm rear axle	Optional
Leather-trimmed low-back front heated bucket seats w/edge welting & lumbar adjustment	Optional
Cargo-area tie down loops	Standard
Instrument cluster w/tachometer	Standard
Bright grille	Optional
Pwr 8-way driver seat & 4-way pwr front passenger seat w/memory	Optional
3-point rear center seat belts	Standard
Floor tunnel insulation	Optional
Bright door handles	Optional
Driver & front passenger advanced multistage airbags w/occupant sensors	Standard
Heated second-row seats	Optional
Full size spare tire w/matching wheel	Optional
Front door tinted glass	Standard
Trim-panel-mounted storage net	Standard
115-volt pwr outlet	Optional
7 & 4 pin wiring harness	Optional

Compare trims

Wondering which trim is right for you?

Our 2009 Jeep Grand Cherokee trim comparison will help you decide.

Maximum Alternator Capacity (amps)	160
Cold Cranking Amps @ 0° F (Primary)	750

Displacement	5.7L/345
Engine Type	Gas V8
SAE Net Horsepower @ RPM	357 @ 5200
SAE Net Torque @ RPM	389 @ 4350

Suspension Type - Rear	Live Axle
Suspension Type - Front (Cont.)	w/Stabilizer bar
Suspension Type - Rear (Cont.)	w/Stabilizer bar
Suspension Type - Front	SLA independent

Fuel Tank Capacity, Approx	21.1 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Pwr Rack & Pinion
Steering Ratio (:1), Overall	15.8
Turning Diameter - Wall to Wall	N/A ft
Turning Diameter - Curb to Curb	37.1 ft
Lock to Lock Turns (Steering)	2.85

Front Tire Size	245/60R18
Rear Tire Size	P245/60R18
Spare Tire Size	P245/60R18

Curb Weight - Front	N/A lbs
Curb Weight	N/A lbs
Base Curb Weight	4604 lbs
Total Option Weight	0.00 lbs
Curb Weight - Rear	N/A lbs
Maximum Payload Capacity	N/A lbs
