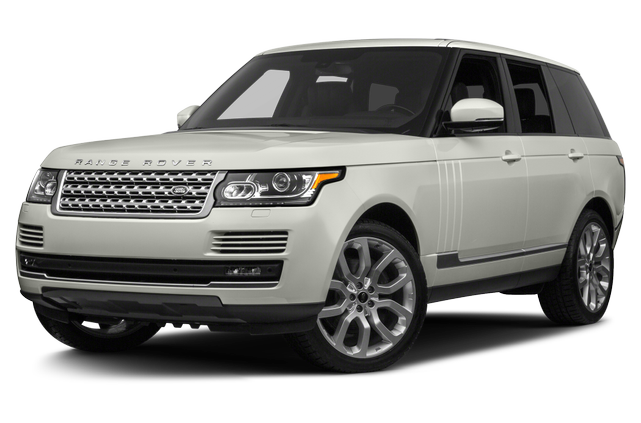

Showing the 2016 Land Rover Range Rover 4WD 4dr SV Autobiography LWB
Shop NowInterior
Cirrus
Ebony
Navy
Tan
Espresso
Cherry
Pimento
Brogue
Almond
Ivory
| Front Wheel Size | 21 X 9.5 in |
| Rear Wheel Size | 21 X 9.5 in |
| Spare Wheel Size | Full-Size in |
| Front Wheel Material | Aluminum |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | 800 |
| Maximum Alternator Capacity (amps) | 150 |
| Engine Type | Intercooled Supercharger Premium Unleaded V-8 |
| Displacement | 5.0 L/305 |
| SAE Net Horsepower @ RPM | 550 @ 6000 |
| SAE Net Torque @ RPM | 502 @ 2500 |
| Engine Oil Cooler | Regular Duty |
| EPA Fuel Economy Est - Hwy | 19 MPG |
| Cruising Range - City | 387.80 mi |
| EPA Fuel Economy Est - City | 14 MPG |
| Fuel Economy Est-Combined | 16 MPG |
| Cruising Range - Hwy | 526.30 mi |
| Estimated Battery Range | N/A mi |
| Drivetrain | Four Wheel Drive |
| Trans Type | 8 |
| Trans Description Cont. | Automatic w/OD |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 4.70 |
| Second Gear Ratio (:1) | 3.13 |
| Third Gear Ratio (:1) | 2.10 |
| Fourth Gear Ratio (:1) | 1.67 |
| Fifth Gear Ratio (:1) | 1.29 |
| Sixth Gear Ratio (:1) | 1.00 |
| Reverse Ratio (:1) | 3.32 |
| Trans Power Take Off | N/A |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Model | Electronic |
| Transfer Case Gear Ratio (:1), High | N/A |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Transfer Case Power Take Off | No |
| Seventh Gear Ratio (:1) | 0.84 |
| Eighth Gear Ratio (:1) | 0.67 |
| Suspension Type - Front | Double Wishbone |
| Suspension Type - Rear | Multi-Link |
| Axle Type - Front | Independent |
| Axle Type - Rear | Independent |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 15 in |
| Rear Brake Rotor Diam x Thickness | 14.4 in |
| Drum - Rear (Yes or ) | N/A |
| Fuel Tank Capacity, Approx | 27.7 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | 42.7 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P275/45WR21 |
| Rear Tire Size | P275/45WR21 |
| Spare Tire Size | Full-Size |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 6614 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 661 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 6614 lbs |
| Base Curb Weight | 5320 lbs |
| Curb Weight - Front | N/A lbs |
| Curb Weight - Rear | N/A lbs |
| Option Weight - Front | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | N/A lbs |
| As Spec'd Payload | N/A lbs |
| Maximum Payload Capacity | N/A lbs |
| Gross Combined Wt Rating | 14661 lbs |
| Gross Axle Weight Rating | N/A lbs |
| Curb Weight | N/A lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 0.00 lbs |
| Passenger Capacity | 4 |
| Front Head Room | 39.3 in |
| Front Leg Room | 42.5 in |
| Front Shoulder Room | 60.7 in |
| Front Hip Room | N/A in |
| Second Head Room | 38.3 in |
| Second Leg Room | 47.5 in |
| Second Shoulder Room | 58.3 in |
| Second Hip Room | N/A in |
| Wheelbase | 122.9 in |
| Length, Overall w/rear bumper | N/A in |
| Length, Overall | 204.7 in |
| Width, Max w/o mirrors | 78.1 in |
| Height, Overall | 72.4 in |
| Track Width, Front | 66.5 in |
| Track Width, Rear | 66.3 in |
| Overhang, Front | N/A in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Ground to Top of Load Floor | N/A in |
| Ground Clearance, Front | N/A in |
| Ground Clearance, Rear | N/A in |
| Min Ground Clearance | 8.7 in |
| Rear Door Opening Height | N/A in |
| Rear Door Opening Width | N/A in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cargo Area Width @ Beltline | 50.8 in |
| Cargo Box Width @ Floor | N/A in |
| Cargo Box Width @ Wheelhousings | 44.1 in |
| Cargo Box (Area) Height | 32.4 in |
| Liftover Height | N/A in |
| Tailgate Width | N/A in |
| Cargo Volume | N/A ft³ |
| Cargo Volume to Seat 1 | 82.8 ft³ |
| Cargo Volume to Seat 2 | 32.1 ft³ |
| Cargo Volume to Seat 3 | 32.1 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| AM/FM/HD/Satellite w/Seek-Scan, In-Dash Mounted Single CD, MP3 Player, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Steering Wheel Controls, Multi-Source Rear Controls, Voice Activation, Radio Data System, Weatherband, DVD-Audio, External Memory Control and Internal Memory | Optional |
| Audio Theft Deterrent | Standard |
| A/V Remote | Optional |
| Automatic Equalizer | Standard |
| Real-Time Traffic Display | Standard |
| Radio: 1700 Watt Meridian Signature Reference -inc: 29 speakers w/3D surround, InControl apps and WiFi pre-wire | Optional |
| 2 LCD Monitors In The Front and 2 LCD Row Monitors In The Rear | Optional |
| Rear Entertainment System w/DVD And Digital Media | Optional |
| Digital Signal Processor | Standard |
| 1700w Premium Amplifier | Optional |
| Window Grid And Roof Mount Diversity Antenna | Standard |
| 2 Wireless Headphones | Optional |
| Streaming Audio | Optional |
| Body-Colored Front Bumper w/Metal-Look Rub Strip/Fascia Accent and 1 Tow Hook | Optional |
| Speed Sensitive Rain Detecting Variable Intermittent Wipers w/Heated Jets | Standard |
| Power Liftgate/Tailgate Rear Cargo Access | Standard |
| Black Side Windows Trim and Black Front Windshield Trim | Standard |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Aluminum Panels | Standard |
| Wheels: 21" Unique SV Autobiography - Style 706 -inc: Seven spoke alloy w/high gloss polished finish, | Optional |
| Fixed Rear Window w/Variable Intermittent Wiper and Defroster | Standard |
| Black Power w/Tilt Down Heated Auto Dimming Side Mirrors w/Power Folding and Turn Signal Indicator | Optional |
| Door Auto-Latch | Optional |
| Headlights-Automatic Highbeams | Optional |
| Deep Tinted Glass | Standard |
| Steel Spare Wheel | Standard |
| Chrome Grille | Optional |
| Front And Rear Fog Lamps | Optional |
| Front Windshield -inc: Electrically Heated Glass and Sun Visor Strip | Standard |
| Tires: P275/45WR21 Performance AS BSW | Optional |
| Body-Colored Rear Step Bumper w/1 Tow Hook | Standard |
| Full-Size Spare Tire Mounted Inside Under Cargo | Optional |
| Laminated Glass | Standard |
| Chrome Door Handles | Optional |
| Metal-Look Bodyside Insert and Body-Colored Bodyside Cladding | Standard |
| LED Brakelights | Standard |
| Auto On/Off Projector Beam High Intensity Low/High Beam Daytime Running Auto-Leveling Directionally Adaptive Auto High-Beam Headlamps w/Washer and Delay-Off | Optional |
| Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade | Optional |
| Head-Up Display | Optional |
| Cargo Net | Optional |
| Folding Cargo Cover | Standard |
| Power Fuel Flap Locking Type | Standard |
| Compass | Standard |
| 2 Seatback Storage Pockets | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror and Illuminated Rear Visor Mirror | Optional |
| Memory Settings -inc: Door Mirrors, Steering Wheel and Head Restraints | Optional |
| Cargo Area Concealed Storage | Standard |
| Driver Foot Rest | Standard |
| Redundant Digital Speedometer | Standard |
| Instrument Panel Covered Bin, Refrigerated/Cooled Box Located In The Rear Armrest And Console, Driver / Passenger And Rear Door Bins | Optional |
| Distance Pacing w/Traffic Stop-Go | Optional |
| Full Leather Headliner | Optional |
| HVAC -inc: Underseat Ducts, Residual Heat Recirculation, Headliner/Pillar Ducts and Console Ducts | Standard |
| Cargo Space Lights | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Driver And Front Passenger Armrests Front Center Armrest w/Storage and Rear Center Armrest w/Pass-Thru w/Storage | Standard |
| 40-40 Folding Bucket Front Facing Heated Power Reclining Ventilated, Rear Seat w/Massaging Lumbar, Power Fore/Aft, Power Cushion Tilt and 2 Foot/Leg Rests | Optional |
| Seats w/Leather Back Material | Optional |
| 5 12V DC Power Outlets | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Altimeter, Oil Level, Trip Odometer and Trip Computer | Standard |
| Carpet Floor Trim and Carpet Trunk Lid/Rear Cargo Door Trim | Standard |
| Air Filtration | Standard |
| Voice Recorder | Standard |
| Outside Temp Gauge | Standard |
| Power Tilt/Telescoping Steering Column | Standard |
| Heated & Cooled Front Bucket Seats -inc: 20-way driver and passenger power front seats w/massage, memory function, adjustable bolsters, winged headrests and climate (heated/cooled) seats | Optional |
| Picnic Table | Optional |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Rear Console w/Storage and 5 12V DC Power Outlets | Optional |
| HomeLink Garage Door Transmitter | Standard |
| Illuminated Locking Glove Box | Standard |
| Valet Function | Standard |
| Voice Activated Dual Zone Front And Rear Automatic Air Conditioning w/Steering Wheel Controls | Optional |
| Interior Trim -inc: Genuine Wood Instrument Panel Insert, Genuine Wood Door Panel Insert, Leather/Genuine Wood Console Insert, Aluminum/Metal-Look Interior Accents and Leather Upholstered Dashboard | Optional |
| Proximity Key For Doors And Push Button Start | Standard |
| Power Anti-Whiplash w/Tilt Front Head Restraints and Power w/Tilt Rear Head Restraints | Optional |
| Metal-Look Gear Shifter Material | Standard |
| Rear Cupholder | Standard |
| Day-Night Auto-Dimming Rearview Mirror | Standard |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Immobilizer | Standard |
| Front And Rear Map Lights | Standard |
| Driver Information Center | Standard |
| Passenger Seat | Optional |
| Full Semi-Aniline Perforated Leather Seat Trim | Optional |
| Digital/Analog Appearance | Standard |
| FOB Controls -inc: Cargo Access, Windows and Sunroof/Convertible Roof | Standard |
| Perimeter Alarm | Standard |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Down | Standard |
| Rear HVAC w/Separate Controls | Standard |
| Driver Seat | Standard |
| Leather Door Trim Insert | Optional |
| Cruise Control w/Steering Wheel Controls | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Trip Computer | Standard |
| Remote Releases -Inc: Proximity Cargo Access and Keyfob Rear Window | Standard |
| Smart Device Integration | Standard |
| Trunk/Hatch Auto-Latch | Standard |
| Front Cupholder | Standard |
| Interior Lock Disable | Standard |
| Power Rear Windows, Fixed 3rd Row Windows and w/Power 2nd Row Sun Blinds | Optional |
| Heated Leather/Genuine Wood Steering Wheel w/Auto Tilt-Away | Optional |
| Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry and Panic Button | Standard |
| Integrated Navigation System w/Voice Activation | Standard |
| 27.7 Gal. Fuel Tank | Optional |
| Multi-Link Rear Suspension w/Air Springs | Standard |
| Permanent Locking Hubs | Standard |
| Trailer Wiring Harness | Optional |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake | Standard |
| 4-Corner Auto-Leveling Suspension | Standard |
| Transmission: 8-Speed Automatic -inc: steering wheel mounted paddle shift and 2-speed electronically controlled transfer gearbox | Standard |
| GVWR: TBD | Optional |
| Front And Rear Active Anti-Roll Bars | Optional |
| Automatic w/Driver Control Height Adjustable Automatic Ride Control Sport Tuned Adaptive Suspension | Optional |
| Engine: 5.0L V8 Supercharged -inc: intelligent stop/start | Optional |
| Engine Oil Cooler | Standard |
| Electronic Transfer Case | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| TBD Axle Ratio | Standard |
| 150 Amp Alternator | Standard |
| Automatic Rear Locking Differential | Optional |
| 1 Skid Plate | Standard |
| Double Wishbone Front Suspension w/Air Springs | Standard |
| 90-Amp/Hr 800CCA Maintenance-Free Battery | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher | Optional |
| Class IV Towing Equipment -inc: Hitch and Trailer Sway Control | Optional |
| Full-Time Four-Wheel Drive | Standard |
| Lane Departure Warning | Optional |
| Low Tire Pressure Warning | Optional |
| Forward Collision Mitigation and Rear Collision Warning | Optional |
| Curtain 1st And 2nd Row Airbags | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Automated Parking Sensors | Optional |
| ABS And Driveline Traction Control | Standard |
| Right Side Camera | Optional |
| Aerial View Camera System | Optional |
| Front Camera | Optional |
| Blind Spot | Optional |
| Left Side Camera | Optional |
| Terrain Response 2 Auto Electronic Stability Control (ESC) And Roll Stability Control (RSC) | Optional |
| Side Impact Beams | Standard |
| Back-Up Camera w/Washer | Standard |
| Collision Mitigation-Front | Optional |
| Airbag Occupancy Sensor | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners | Optional |
| Power Rear Child Safety Locks | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
Wondering which trim is right for you?
Our 2016 Land Rover Range Rover trim comparison will help you decide.
