2016 Land Rover Range Rover Diesel HSE specs & colors

Starting MSRP
Current listing price

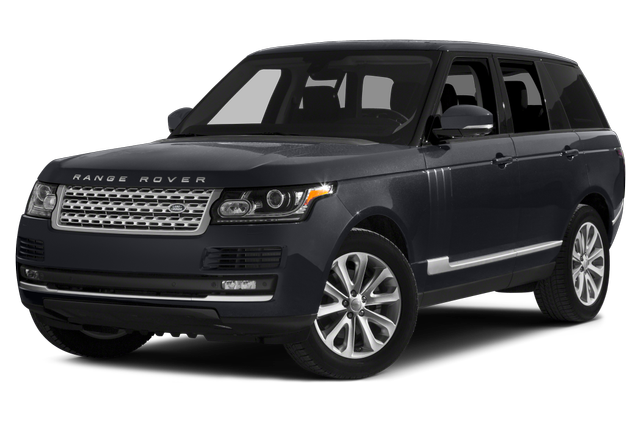

Showing the 2016 Land Rover Range Rover 4WD 4dr Diesel HSE

Shop Now

Key specs

Color options









Starting MSRP

  • Placed in cargo area
  • Rubber Mats
  • Retention Net

Protection Pack


Starting MSRP

  • 4-Zone Climate Control
  • Power Rear Climate Seats
  • recline

4 Zone Climate Comfort Pack


Starting MSRP

  • configurable mood lighting
  • Blind Spot Monitor w/Closing Vehicle Sensing
  • reverse traffic detection

Vision Assist Pack

See all packages


Starting MSRP

  • Head-Up Display
  • WiFi Pre-wire
  • Traffic Sign Recognition

Driver Assistance Pack


Starting MSRP

  • 4-Zone Climate Control
  • Power Rear Climate Seats
  • recline

4 Zone Climate Comfort Pack w/o Front Cooler Box


Spare Wheel Size Compact in
Front Wheel Size 20 X 8.5 in
Rear Wheel Material Aluminum
Front Wheel Material Aluminum
Rear Wheel Size 20 X 8.5 in
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 800
Maximum Alternator Capacity (amps) 150

SAE Net Horsepower @ RPM 254
Displacement 3.0 L/183
Engine Type Intercooled Turbo Diesel V-6
SAE Net Torque @ RPM 440 @ 1750
Engine Oil Cooler Regular Duty

EPA Fuel Economy Est - City 22 MPG
EPA Fuel Economy Est - Hwy 28 MPG
Estimated Battery Range N/A mi
Cruising Range - Hwy 658.00 mi
Cruising Range - City 517.00 mi
Fuel Economy Est-Combined 24 MPG

Final Drive Axle Ratio (:1) N/A
Drivetrain Four Wheel Drive
Fifth Gear Ratio (:1) 1.29
Eighth Gear Ratio (:1) 0.67
Sixth Gear Ratio (:1) 1.00
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Model Electronic
Reverse Ratio (:1) 3.32
Trans Type 8
Seventh Gear Ratio (:1) 0.84
Trans Description Cont. Automatic w/OD
Third Gear Ratio (:1) 2.10
Trans Description Cont. Again N/A
Transfer Case Gear Ratio (:1), High N/A
Second Gear Ratio (:1) 3.13
Transfer Case Power Take Off No
Fourth Gear Ratio (:1) 1.67
Trans Power Take Off N/A
First Gear Ratio (:1) 4.70

Axle Type - Front Independent
Suspension Type - Rear Multi-Link
Suspension Type - Front Double Wishbone
Axle Type - Rear Independent

Frame Type N/A

Drum - Rear (Yes or ) N/A
Front Brake Rotor Diam x Thickness 13.8 in
Rear Brake Rotor Diam x Thickness 13.8 in
Brake Type 4-Wheel Disc
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Disc - Rear (Yes or ) Yes

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 23.5 gal

Turning Diameter - Curb to Curb 40.4 ft
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A

Front Tire Size P255/50WR20
Spare Tire Size Compact
Rear Tire Size P255/50WR20

Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 7716 lbs
Maximum Trailering Capacity 7716 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 772 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs

Gross Vehicle Weight Rating 6945.00 lbs
As Spec'd Payload N/A lbs
Gross Combined Wt Rating 14661 lbs
Total Option Weight 0.00 lbs
Base Curb Weight 4918 lbs
Option Weight - Front 0.00 lbs
Curb Weight N/A lbs
Option Weight - Rear 0.00 lbs
Curb Weight - Rear N/A lbs
Curb Weight - Front N/A lbs
Maximum Payload Capacity N/A lbs
As Spec'd Curb Weight N/A lbs
Gross Axle Weight Rating N/A lbs

Cargo Volume to Seat 1 71.7 ft³
Cargo Volume to Seat 2 32.1 ft³
Cargo Volume to Seat 3 32.1 ft³
Second Hip Room N/A in
Front Leg Room 42.5 in
Passenger Capacity 5
Second Head Room 39.2 in
Cab to End of Frame N/A in
Cargo Box (Area) Height 32.4 in
Front Hip Room N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Wheelbase 115 in
Second Leg Room 40.2 in
Front Shoulder Room 60.7 in
Track Width, Front 66.5 in
Overhang, Front N/A in
Height, Overall 72.3 in
Front Head Room 39.3 in
Length, Overall 196.8 in
Ext'd Cab Cargo Volume N/A ft³
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Top, Rear N/A in
Min Ground Clearance 8.7 in
Liftover Height N/A in
Ground Clearance, Front N/A in
Ground to Top of Load Floor N/A in
Length, Overall w/rear bumper N/A in
Rear Door Opening Width N/A in
Rear Door Opening Height N/A in
Cargo Volume N/A ft³
Cargo Area Length @ Floor to Seat 2 43.3 in
Cargo Box Width @ Wheelhousings 44.1 in
Track Width, Rear 66.3 in
Tailgate Width N/A in
Cargo Area Length @ Floor to Seat 1 78.1 in
Overhang, Rear w/o bumper N/A in
Second Shoulder Room 59.4 in
Cargo Area Width @ Beltline 50.8 in
Width, Max w/o mirrors 78.1 in
Ground Clearance, Rear N/A in

Radio w/Seek-Scan, MP3 Player, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation, Radio Data System, Weatherband and DVD-Audio Standard
Audio Theft Deterrent Standard
380w Regular Amplifier Standard
Radio: 380 Watt Meridian Audio w/8" Touchscreen -inc: USB/iPod port w/full iPod integration, 13 speakers, virtual 10 disc CD changer, satellite and HD radio, InControl Apps, Bluetooth telephone connectivity w/audio streaming and InControl Remote & Protect Standard
Digital Signal Processor Standard
Real-Time Traffic Display Standard
Automatic Equalizer Standard
Window Grid And Roof Mount Diversity Antenna Standard

Silver Grille Optional
Body-Colored Rear Step Bumper w/1 Tow Hook Standard
Deep Tinted Glass Standard
Compact Spare Tire Mounted Inside Under Cargo Standard
LED Brakelights Standard
Door Auto-Latch Optional
Black Side Windows Trim and Black Front Windshield Trim Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Fixed Rear Window w/Variable Intermittent Wiper and Defroster Standard
Auto On/Off Projector Beam High Intensity Low/High Beam Daytime Running Auto-Leveling Headlamps w/Washer and Delay-Off Standard
Steel Spare Wheel Standard
Perimeter/Approach Lights Standard
Body-Colored Power w/Tilt Down Heated Auto Dimming Side Mirrors w/Power Folding and Turn Signal Indicator Optional
Speed Sensitive Rain Detecting Variable Intermittent Wipers w/Heated Jets Standard
Rear Fog Lamps Standard
Laminated Glass Standard
Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade Optional
Body-Colored Door Handles Standard
Metal-Look Bodyside Insert and Body-Colored Bodyside Cladding Standard
Power Liftgate/Tailgate Rear Cargo Access Standard
Aluminum Panels Standard
Tires: P255/50WR20 AS BSW Optional
Front Windshield -inc: Electrically Heated Glass and Sun Visor Strip Standard
Body-Colored Front Bumper w/1 Tow Hook Standard
Wheels: 20" 5 Split Spoke Alloy - Style 502 Optional

Trunk/Hatch Auto-Latch Standard
Power Rear Windows and Fixed 3rd Row Windows Standard
Leather Door Trim Insert Optional
Folding Cargo Cover Standard
Power Tilt/Telescoping Steering Column Standard
Integrated Navigation System w/Voice Activation Standard
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Down Standard
Front Cupholder Standard
Proximity Key For Doors And Push Button Start Standard
Outside Temp Gauge Standard
Rear HVAC w/Separate Controls Standard
Rear Cupholder Standard
Driver Information Center Standard
Instrument Panel Covered Bin, Driver / Passenger And Rear Door Bins Standard
Full Cloth Headliner Standard
Smart Device Integration Standard
Digital/Analog Appearance Standard
HVAC -inc: Underseat Ducts, Residual Heat Recirculation, Headliner/Pillar Ducts and Console Ducts Standard
Heated Front Bucket Seats -inc: 14-way driver and passenger seat, electric lumbar, driver's seat memory and front climate seats (cooled) w/adjustable bolsters Optional
Redundant Digital Speedometer Standard
Interior Trim -inc: Genuine Wood Instrument Panel Insert, Genuine Wood Door Panel Insert, Genuine Wood/Metal-Look Console Insert, Aluminum/Metal-Look Interior Accents and Leather Upholstered Dashboard Standard
Heated Leather/Metal-Look Steering Wheel w/Auto Tilt-Away Standard
Driver Foot Rest Standard
Metal-Look Gear Shifter Material Standard
40-20-40 Folding Split-Bench Front Facing Heated Manual Reclining Tumble Forward Rear Seat Optional
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Altimeter, Oil Level, Trip Odometer and Trip Computer Standard
Seats w/Leatherette Back Material Standard
Trip Computer Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 5 12V DC Power Outlets Standard
Cruise Control w/Steering Wheel Controls Standard
Cargo Area Concealed Storage Standard
Valet Function Standard
FOB Controls -inc: Cargo Access, Windows and Sunroof/Convertible Roof Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror Optional
HomeLink Garage Door Transmitter Standard
Air Filtration Standard
Immobilizer Standard
Front And Rear Map Lights Standard
Driver Seat Standard
Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry and Panic Button Standard
Remote Releases -Inc: Proximity Cargo Access and Keyfob Rear Window Standard
Compass Standard
2 Seatback Storage Pockets Standard
Cargo Space Lights Standard
Full Oxford Perforated Leather Seat Trim Optional
Power Door Locks w/Autolock Feature Standard
5 12V DC Power Outlets Standard
Illuminated Locking Glove Box Standard
Manual Anti-Whiplash w/Tilt Front Head Restraints and Manual w/Tilt Rear Head Restraints Standard
Carpet Floor Trim and Carpet Trunk Lid/Rear Cargo Door Trim Standard
Power Fuel Flap Locking Type Standard
Driver And Front Passenger Armrests Front Center Armrest w/Storage and Rear Center Armrest w/Pass-Thru w/Storage Standard
Voice Recorder Standard
Fade-To-Off Interior Lighting Standard
Voice Activated Dual Zone Front Automatic Air Conditioning w/Steering Wheel Controls Standard
Perimeter Alarm Standard
Memory Settings -inc: Door Mirrors and Steering Wheel Standard
Interior Lock Disable Standard
Passenger Seat Standard
Day-Night Auto-Dimming Rearview Mirror Standard

Gas-Pressurized Shock Absorbers Standard
Multi-Link Rear Suspension w/Air Springs Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake Standard
Dual Stainless Steel Exhaust Standard
Engine Oil Cooler Standard
Engine: 3.0L Td6 Turbocharged V6 Diesel -inc: intelligent stop/start Optional
Full-Time Four-Wheel Drive Standard
GVWR: 6,945 lbs Standard
Transmission: 8-Speed Automatic -inc: steering wheel mounted paddle shift and 2-speed electronically controlled transfer gearbox Standard
Permanent Locking Hubs Standard
Towing Equipment -inc: Trailer Sway Control Standard
Electric Power-Assist Speed-Sensing Steering Standard
4-Corner Auto-Leveling Suspension Standard
Automatic w/Driver Control Height Adjustable Automatic Ride Control Adaptive Suspension Standard
150 Amp Alternator Standard
Double Wishbone Front Suspension w/Air Springs Standard
90-Amp/Hr 800CCA Maintenance-Free Battery Standard
TBD Axle Ratio Standard
23.5 Gal. Fuel Tank Optional
Transmission w/Driver Selectable Mode Standard
Front And Rear Anti-Roll Bars Standard
Electronic Transfer Case Standard
1 Skid Plate Standard

Terrain Response Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Tire Specific Low Tire Pressure Warning Standard
Side Impact Beams Standard
Airbag Occupancy Sensor Standard
Power Rear Child Safety Locks Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Curtain 1st And 2nd Row Airbags Standard
Front And Rear Parking Sensors Standard
ABS And Driveline Traction Control Standard
Back-Up Camera w/Washer Standard
Dual Stage Driver And Passenger Front Airbags Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
