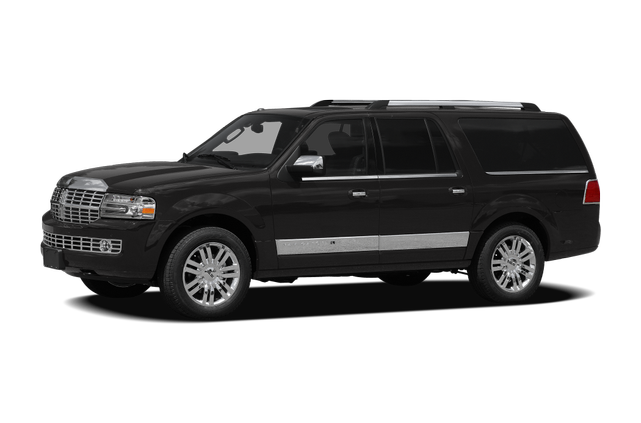

2010 Lincoln Navigator specs & colors
Sport Utility
MSRP
Key specs
Color options
Interior
Vanilla
Dark Brown
Red
Packages
$0
Starting MSRP
- base vehicle
$4,280
Starting MSRP
- pwr moonroof
- rear seat DVD entertainment system
- next generation navigation system
Specifications
Highlights
|
Gas/Ethanol V8
Engine Type
|
|
14 City / 20 Hwy
MPG
|
|
310 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
Four Wheel
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
13.5 x 1.3 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Pwr
Brake Type
|
|
N/A
Brake ABS System (Second Line)
|
|
Not Available
Drum - Rear (Yes or )
|
|
13.1 x 0.9 in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
130
Maximum Alternator Capacity (amps)
|
Engine
|
310 @ 5100
SAE Net Horsepower @ RPM
|
|
5.4L/330
Displacement
|
|
Gas/Ethanol V8
Engine Type
|
|
365 @ 3600
SAE Net Torque @ RPM
|
|
6-Speed A/T
Transmission Overdrive Switch A/T Transmission Options
|
|
14 City / 20 Hwy
MPG
|
|
23.2 qts
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
41 in
Front Leg Room
|
|
38 in
Third Head Room
|
|
40 in
Front Head Room
|
|
60 in
Second Hip Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
103 ft³
Cargo Volume to Seat 1
|
|
9 in
Min Ground Clearance
|
|
18 ft³
Cargo Volume to Seat 3
|
|
N/A
Liftover Height
|
|
52 in
Third Shoulder Room
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
40 in
Second Head Room
|
|
54 ft³
Cargo Volume to Seat 2
|
|
78 in
Height, Overall
|
|
N/A
Rear Door Opening Height
|
|
119 in
Wheelbase
|
|
N/A
Rear Door Opening Width
|
|
79 in
Width, Max w/o mirrors
|
|
38 in
Third Leg Room
|
|
63 in
Front Shoulder Room
|
|
7
Passenger Capacity
|
|
60 in
Front Hip Room
|
|
208 in
Length, Overall
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
159 ft³
Passenger Volume
|
|
64 in
Second Shoulder Room
|
|
N/A
Cargo Area Width @ Beltline
|
|
50 in
Third Hip Room
|
|
39 in
Second Leg Room
|
|
67 in
Track Width, Front
|
|
67 in
Track Width, Rear
|
Safety
|
Standard
Brake Assist
|
|
Standard
Backup Camera
|
|
Standard
Stability Control
|
Steering
|
20
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
|
41 ft
Turning Diameter - Curb to Curb
|
|
Pwr Rack & Pinion
Steering Type
|
|
3
Lock to Lock Turns (Steering)
|
Suspension
|
SLA
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
|
Independent
Suspension Type - Front
|
|
Independent
Suspension Type - Rear
|
Tires & Wheels
|
18 x 8.5 in
Rear Wheel Size
|
|
18 x 8.5 in
Front Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
17 x -TBD- in
Spare Wheel Size
|
|
P255/70R18
Rear Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
17 x -TBD-
Spare Tire Size
|
|
P255/70R18
Front Tire Size
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
0 lbs
Total Option Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight - Rear
|
|
28 gal
Fuel Tank Capacity, Approx
|
|
5,810 lbs
Base Curb Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Curb Weight
|
|
N/A
Curb Weight - Front
|
|
900 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
6,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
