2017 RAM 1500 HFE specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$37,895
Starting MSRP
Current listing price

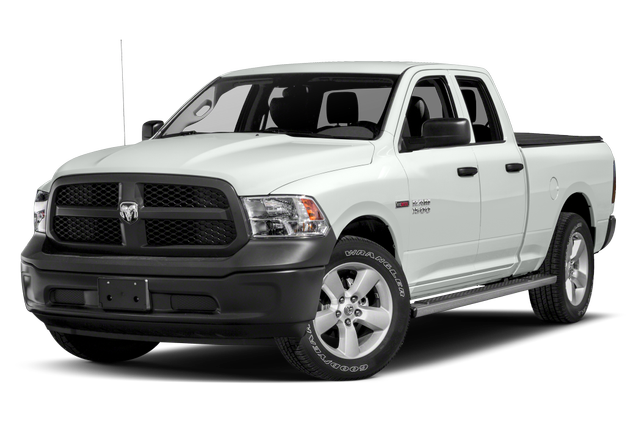

Showing the 2017 RAM 1500 HFE 4x2 Quad Cab 6'4" Box

Shop Now

Key specs

Color options

Interior

Black / Diesel Gray Interior

Packages

$235

Starting MSRP

  • Engine Block Heater
  • Winter Front Grille Cover

$0

Starting MSRP

  • Engine: 3.0L V6 Turbo Diesel
  • Transmission: 8-Speed Automatic (8HP70)
  • Tradesman Package

Specifications

Front Wheel Size 20 X 8 in
Rear Wheel Size 20 X 8 in
Spare Wheel Size Full-Size in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Aluminum

Cold Cranking Amps @ 0° F (Primary) 800
Maximum Alternator Capacity (amps) 230

Engine Type Intercooled Turbo Diesel V-6
Displacement 3.0 L/182
SAE Net Horsepower @ RPM 240 @ 3600
SAE Net Torque @ RPM 420 @ 2000
Engine Oil Cooler None

EPA Fuel Economy Est - Hwy 29 (Est) MPG
Cruising Range - City 546.00 mi
EPA Fuel Economy Est - City 21 (Est) MPG
Fuel Economy Est-Combined 24 (Est) MPG
Cruising Range - Hwy 754.00 mi
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 8
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.10
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.29
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.30
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model None
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67

Suspension Type - Front Short And Long Arm
Suspension Type - Rear Multi-Link
Axle Type - Front Independent
Axle Type - Rear Rigid Axle

Frame Type N/A

Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.2 in
Rear Brake Rotor Diam x Thickness 13.8 in
Drum - Rear (Yes or ) N/A

Fuel Tank Capacity, Approx 26 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 45.1 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P275/60SR20
Rear Tire Size P275/60SR20
Spare Tire Size Full-Size

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 7920 lbs
Wt Distributing Hitch - Max Tongue Wt. 792 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity 7920 lbs

Base Curb Weight 5449 lbs
Curb Weight - Front 3107 lbs
Curb Weight - Rear 2342 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 5449.00 lbs
As Spec'd Payload 1496.00 lbs
Maximum Payload Capacity 1496.00 lbs
Gross Combined Wt Rating 13750 lbs
Gross Axle Weight Rating 7600.00 lbs
Curb Weight 5449.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 6945.00 lbs

Passenger Capacity 6
Front Head Room 41 in
Front Leg Room 41 in
Front Shoulder Room 66 in
Front Hip Room 63.2 in
Second Head Room 39.7 in
Second Leg Room 34.7 in
Second Shoulder Room 65.7 in
Second Hip Room 62.9 in
Wheelbase 140 in
Length, Overall w/o rear bumper N/A in
Length, Overall w/rear bumper N/A in
Length, Overall 229 in
Width, Max w/o mirrors 79.4 in
Height, Overall 77.2 in
Overhang, Front N/A in
Overhang, Rear w/o bumper 48.4 in
Cab to End of Frame N/A in
Ground to Top of Load Floor 34.6 in
Ground Clearance, Front 8.7 in
Ground Clearance, Rear 8.7 in
Cargo Box Length @ Floor 76.3 in
Cargo Box Width @ Top, Rear 66.4 in
Cargo Box Width @ Floor 66.4 in
Cargo Box Width @ Wheelhousings 51 in
Cargo Box (Area) Height 20.1 in
Tailgate Width 60.4 in
Cargo Volume 57.5 ft³
Ext'd Cab Cargo Volume N/A ft³

Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Radio Data System and External Memory Control Optional
Fixed Antenna Standard
Radio: 3.0 Standard
6 Speakers Standard

Front License Plate Bracket Standard
Galvanized Steel/Aluminum Panels Standard
Black Grille Standard
Regular Box Style Standard
Black Power Heated Side Mirrors w/Manual Folding Optional
Black Side Windows Trim and Black Front Windshield Trim Standard
Aluminum Spare Wheel Optional
3.0L Diesel Badge Optional
Black Front Bumper w/Black Rub Strip/Fascia Accent Standard
Fixed Rear Window Standard
Wheels: 20" x 8.0" Aluminum Optional
Manual Tailgate/Rear Door Lock Standard
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Auto On/Off Aero-Composite Halogen Headlamps w/Delay-Off Standard
Black Door Handles Standard
Tailgate Rear Cargo Access Standard
Variable Intermittent Wipers Standard
Black Rear Step Bumper Standard
Soft Tonneau Cover Optional
Tires: P275/60R20 BSW AS (STD) Optional
Side Steps Optional
Cargo Lamp w/High Mount Stop Light Standard
Deep Tinted Glass Standard

Full Cloth Headliner Standard
2 12V DC Power Outlets Standard
Day-Night Rearview Mirror Standard
Sentry Key Immobilizer Standard
Full Vinyl/Rubber Floor Covering Standard
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
Pickup Cargo Box Lights Standard
Front Center Armrest Optional
HVAC -inc: Underseat Ducts Standard
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
Full Folding Bench Front Facing Fold-Up Cushion Vinyl Rear Seat Optional
Front Cupholder Optional
Power Door Locks Standard
Manual Air Conditioning Standard
Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents Standard
Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins and 2nd Row Underseat Storage Standard
Urethane Gear Shifter Material Standard
Fade-To-Off Interior Lighting Standard
Analog Appearance Standard
Electronic Shift Standard
Cruise Control w/Steering Wheel Controls Standard
Driver Information Center Standard
Electronically Controlled Throttle Optional
Manual Tilt Steering Column Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Heavy Duty Vinyl 40/20/40 Split Bench Seat Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer Standard
Power Rear Windows Standard
Seats w/Vinyl Back Material Standard

Single Stainless Steel Exhaust Standard
Selective Catalytic Reduction (Urea) Optional
GVWR: 6,945 lbs Optional
Transmission: 8-Speed Automatic (8HP70) (STD) Optional
26 Gal. Fuel Tank Standard
Solid Axle Rear Suspension w/Coil Springs Standard
Engine: 3.0L V6 Turbo Diesel (STD) Optional
230 Amp Alternator Optional
1500# Maximum Payload Optional
Trailer Wiring Harness Standard
HD Shock Absorbers Standard
Next Generation Engine Controller Optional
Transmission w/Driver Selectable Mode Optional
Rear-Wheel Drive Standard
Electric Power-Assist Steering Standard
Maximum Duty Engine Cooling Optional
3.55 Rear Axle Ratio Optional
Front And Rear Anti-Roll Bars Standard
800CCA Maintenance-Free Battery Optional
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control Standard
Towing Equipment -inc: Trailer Sway Control Optional
Rotary Shifter-Black Standard
Short And Long Arm Front Suspension w/Coil Springs Standard

Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
ABS And Driveline Traction Control Standard
Side Impact Beams Standard
Dual Stage Driver And Passenger Front Airbags Standard
Tire Specific Low Tire Pressure Warning Standard
Rear Child Safety Locks Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Curtain 1st And 2nd Row Airbags Standard
Airbag Occupancy Sensor Standard
Electronic Stability Control (ESC) Standard
