2017 RAM 1500 Rebel specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$47,195
Starting MSRP
Current listing price

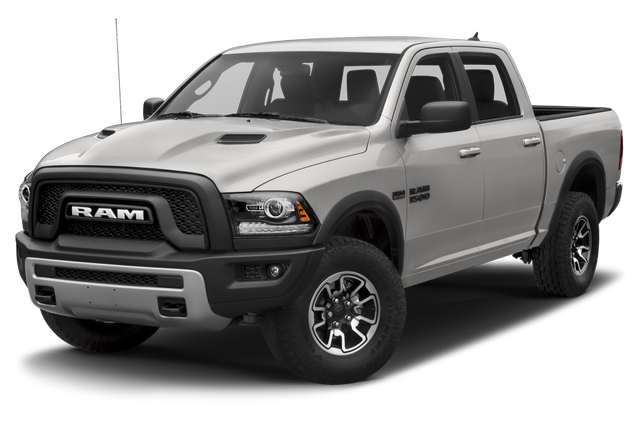

Showing the 2017 RAM 1500 Rebel 4x4 Crew Cab 5'7" Box

Shop Now

Key specs

Color options

Interior

Red / Black

Black

Packages

$595

Starting MSRP

  • Black Powder-Coated Front Bumper
  • Wheels: 17" x 8" Matte Black Aluminum

$0

Starting MSRP

  • Engine: 5.7L V8 HEMI MDS VVT
  • Transmission: 8-Speed Automatic (8HP70)
  • Ram Glove Box Badge

Quick Order Package 26W Rebel

$0

Starting MSRP

  • Engine: 5.7L V8 HEMI MDS VVT
  • Transmission: 8-Speed Automatic (8HP70)
  • Ram Glove Box Badge
  • Dual Rear Exhaust w/Bright Tips
  • Flat Black Ram 1500 Badge
  • Flat Black 5.7L Hemi Badge

$460

Starting MSRP

  • Exterior Mirrors w/Supplemental Signals
  • Trailer Brake Control
  • Exterior Mirrors Courtesy Lamps

Trailer Tow Mirrors & Brake Group

$460

Starting MSRP

  • Exterior Mirrors w/Supplemental Signals
  • Trailer Brake Control
  • Exterior Mirrors Courtesy Lamps
  • Power Black Trailer Tow Mirrors
  • Trailer Tow Mirrors
See all packages

$695

Starting MSRP

  • Rear View Auto Dim Mirror
  • Exterior Mirrors w/Supplemental Signals
  • Rear Dome w/On/Off Switch Lamp

Luxury Group

$695

Starting MSRP

  • Rear View Auto Dim Mirror
  • Exterior Mirrors w/Supplemental Signals
  • Rear Dome w/On/Off Switch Lamp
  • Underhood Lamp
  • LED Bed Lighting
  • Exterior Mirrors Courtesy Lamps
  • Glove Box Lamp
  • Auto Dim Exterior Mirrors
  • Power-Folding Mirrors
  • Power Heated Fold-Away Mirrors
  • Sun Visors w/Illuminated Vanity Mirrors
  • Overhead Console w/Garage Door Opener
  • Universal Garage Door Opener

$0

Starting MSRP

  • Engine: 3.6L V6 24V VVT
  • Transmission: 8-Speed Automatic (845RE)
  • Ram Glove Box Badge

Quick Order Package 22W Rebel

$0

Starting MSRP

  • Engine: 3.6L V6 24V VVT
  • Transmission: 8-Speed Automatic (845RE)
  • Ram Glove Box Badge
  • Flat Black Ram 1500 Badge

$225

Starting MSRP

  • Transfer Case Skid Plate Shield
  • Front Suspension Skid Plate

Specifications

Spare Wheel Material Steel
Front Wheel Material Aluminum
Front Wheel Size 17 X 8 in
Spare Wheel Size Full-Size in
Rear Wheel Size 17 X 8 in
Rear Wheel Material Aluminum

Maximum Alternator Capacity (amps) 160
Cold Cranking Amps @ 0° F (Primary) 730

Engine Type Regular Unleaded V-6
SAE Net Torque @ RPM 269 @ 4175
SAE Net Horsepower @ RPM 305 @ 6400
Displacement 3.6 L/220
Engine Oil Cooler HD

Cruising Range - City 416.00 mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - Hwy 598.00 mi
Fuel Economy Est-Combined 19 MPG
EPA Fuel Economy Est - City 16 MPG

Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Third Gear Ratio (:1) 2.11
Drivetrain Four Wheel Drive
Reverse Ratio (:1) 3.29
Trans Type 8
Fifth Gear Ratio (:1) 1.28
Final Drive Axle Ratio (:1) N/A
Sixth Gear Ratio (:1) 1.00
Seventh Gear Ratio (:1) 0.84
First Gear Ratio (:1) 4.71
Trans Power Take Off N/A
Eighth Gear Ratio (:1) 0.67
Transfer Case Power Take Off No
Trans Description Cont. Again N/A
Second Gear Ratio (:1) 3.14
Fourth Gear Ratio (:1) 1.67
Trans Description Cont. Automatic w/OD
Transfer Case Model Electronic

Suspension Type - Rear Multi-Link
Axle Type - Front Independent
Axle Type - Rear Rigid Axle
Suspension Type - Front Short And Long Arm

Frame Type N/A

Brake ABS System 4-Wheel
Drum - Rear (Yes or ) N/A
Disc - Rear (Yes or ) Yes
Disc - Front (Yes or ) Yes
Brake ABS System (Second Line) 4-Wheel
Front Brake Rotor Diam x Thickness 13.2 in
Brake Type 4-Wheel Disc
Rear Brake Rotor Diam x Thickness 13.8 in

Fuel Tank Capacity, Approx 26 gal
Aux Fuel Tank Capacity, Approx N/A gal

Turning Diameter - Curb to Curb 45.4 ft
Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall N/A ft

Rear Tire Size LT285/70SR17
Spare Tire Size Full-Size
Front Tire Size LT285/70SR17

Maximum Trailering Capacity 7130 lbs
Wt Distributing Hitch - Max Trailer Wt. 7130 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 713 lbs

As Spec'd Curb Weight 5395.00 lbs
Base Curb Weight 5395 lbs
Option Weight - Front 0.00 lbs
Curb Weight - Front 3040 lbs
Curb Weight - Rear 2355 lbs
Total Option Weight 0.00 lbs
Gross Axle Weight Rating 7800.00 lbs
Maximum Payload Capacity 1405.00 lbs
Curb Weight 5395.00 lbs
Gross Vehicle Weight Rating 6800.00 lbs
As Spec'd Payload 1405.00 lbs
Gross Combined Wt Rating 12900 lbs
Option Weight - Rear 0.00 lbs

Ground Clearance, Front 8.8 in
Second Shoulder Room 65.7 in
Second Head Room 39.9 in
Wheelbase 140 in
Ext'd Cab Cargo Volume N/A ft³
Ground to Top of Load Floor 36.4 in
Front Hip Room 62.9 in
Cargo Box Width @ Wheelhousings 51 in
Front Head Room 41 in
Overhang, Rear w/o bumper 48.4 in
Height, Overall 78.1 in
Second Leg Room 40.2 in
Cargo Volume 50.3 ft³
Cargo Box Width @ Top, Rear 66.4 in
Cab to End of Frame N/A in
Length, Overall 229 in
Front Shoulder Room 65.9 in
Ground Clearance, Rear 8.8 in
Length, Overall w/o rear bumper N/A in
Cargo Box (Area) Height 20 in
Length, Overall w/rear bumper N/A in
Overhang, Front 40 in
Passenger Capacity 5
Front Leg Room 40.9 in
Tailgate Width 60.4 in
Width, Max w/o mirrors 81.5 in
Cargo Box Width @ Floor 66.4 in
Cargo Box Length @ Floor 67.4 in
Second Hip Room 62.7 in

Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation and Radio Data System Optional
1 LCD Monitor In The Front Optional
Streaming Audio Optional
Radio: Uconnect 3C w/8.4" Display Optional
Fixed Antenna Standard
Media Hub (USB, AUX) Standard
6 Speakers Standard

Black Side Windows Trim and Black Front Windshield Trim Standard
Variable Intermittent Wipers Standard
Black Grille Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Optional
Galvanized Steel/Aluminum Panels Standard
Power Rear Window Optional
Black Rear Step Bumper Standard
Wheels: 17" x 8" Aluminum w/Matte Black Pocket (STD) Optional
Deep Tinted Glass Standard
Bright Rotary Shifter Optional
Tires: LT285/70R17E BSW All Terrain Optional
Steel Spare Wheel Standard
Front Fog Lamps Optional
Auto On/Off Projector Beam Halogen Headlamps w/Delay-Off Optional
LED Brakelights Optional
Front License Plate Bracket Standard
Cargo Lamp w/High Mount Stop Light Standard
Tailgate Rear Cargo Access Standard
Black Fender Flares Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Regular Box Style Standard
Black Power Heated Side Mirrors w/Manual Folding Optional
Black Front Bumper w/Metal-Look Rub Strip/Fascia Accent and 2 Tow Hooks Optional
Body-Colored Door Handles Optional

10-Way Power Driver Seat -inc: Power Recline, Height Adjustment, Fore/Aft Movement, Cushion Tilt and Power 2-Way Lumbar Support Optional
Analog Appearance Standard
3 12V DC Power Outlets Optional
Power Rear Windows Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
Heated Leather Steering Wheel Optional
Urethane Gear Shifter Material Standard
Audio Jack Input for Mobile Devices Standard
Full Carpet Floor Covering -inc: Vinyl/Rubber Front And Rear Floor Mats Optional
Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage Standard
Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert, Aluminum Door Panel Insert, Metal-Look Console Insert and Aluminum/Metal-Look Interior Accents Optional
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer Optional
Cargo Area Concealed Storage Standard
Redundant Digital Speedometer Optional
Compass Optional
Electronic Shift Standard
Front Map Lights Optional
Rear Cupholder Standard
Full Cloth Headliner Standard
Perimeter Alarm Optional
6-Way Power Passenger Seat -inc: Power Recline, Fore/Aft Movement and Power 2-Way Lumbar Support Optional
8.4" Touchscreen Display Optional
60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat Optional
Front Center Armrest w/Storage and Rear Center Armrest Optional
Uconnect Access Optional
Front Seats w/Power 2-Way Driver Lumbar Optional
Driver And Passenger Heated-Cushion, Driver And Passenger Heated-Seatback Optional
Remote USB Port Standard
Valet Function Optional
Smart Device Remote Engine Start Optional
Front Cupholder Optional
GPS Antenna Input Optional
Sentry Key Immobilizer Standard
Day-Night Rearview Mirror Standard
Vinyl Door Trim Insert Optional
Cruise Control w/Steering Wheel Controls Standard
Full Floor Console w/Covered Storage, Mini Overhead Console, 3 12V DC Power Outlets and 1 120V AC Power Outlet Optional
3 12V DC Power Outlets and 1 120V AC Power Outlet Optional
FOB Controls -inc: Cargo Access, Remote Start and Air Suspension Optional
Fade-To-Off Interior Lighting Standard
Power Door Locks w/Autolock Feature Optional
Pickup Cargo Box Lights Standard
Passenger Visor Vanity Mirror Optional
HVAC -inc: Underseat Ducts and Console Ducts Standard
Driver Information Center Standard
Manual Tilt Steering Column Standard
2 Seatback Storage Pockets Optional
Integrated Voice Command w/Bluetooth Optional
Trip Computer Optional
Outside Temp Gauge Optional
Dual Zone Front Automatic Air Conditioning w/Front Infrared Optional
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Optional
Premium Cloth Seats w/Emboss Tread Pattern Optional

Short And Long Arm Front Suspension w/Air Springs Optional
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control Standard
1410# Maximum Payload Optional
160 Amp Alternator Standard
Electronic Transfer Case Standard
Solid Axle Rear Suspension w/Air Springs Optional
Bilstein Brand Name Shock Absorbers Optional
Electric Power-Assist Steering Standard
Front And Rear Anti-Roll Bars Standard
Transmission w/Driver Selectable Mode and Oil Cooler Standard
730CCA Maintenance-Free Battery Standard
26 Gal. Fuel Tank Standard
3.92 Rear Axle Ratio (STD) Optional
Auto Locking Hubs Standard
Automatic w/Driver Control Height Adjustable Automatic w/Driver Control Ride Control Suspension Optional
GVWR: 6,800 lbs Optional
Transmission: 8-Speed Automatic (845RE) (STD) Standard
Engine Oil Cooler Standard
Class IV Towing Equipment -inc: Hitch and Trailer Sway Control Standard
Part-Time Four-Wheel Drive Standard
Trailer Wiring Harness Standard
Engine: 3.6L V6 24V VVT -inc: Flex fuel capable (STD) Standard
4-Corner Auto-Leveling Suspension Optional
Single Stainless Steel Exhaust Standard

Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Front Airbags Standard
Curtain 1st And 2nd Row Airbags Standard
ABS And Driveline Traction Control Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Electronic Stability Control (ESC) Standard
Rear Child Safety Locks Standard
ParkSense Rear Parking Sensors Optional
Tire Specific Low Tire Pressure Warning Standard
Side Impact Beams Standard
ParkView Back-Up Camera Optional
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
