2022 RAM 1500 HFE specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$46,596
Starting MSRP
Current listing price

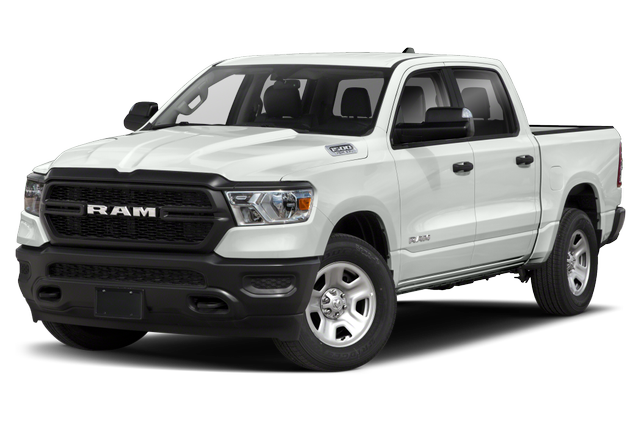

Showing the 2022 RAM 1500 HFE 4x2 Crew Cab 5'7" Box

Shop Now

Key specs

Color options

Interior

Black

Packages

$0

Starting MSRP

  • Engine: 3.0L V6 Turbo Diesel Gen 3
  • Transmission: 8-Speed Automatic (8HP75) (DFV)

Specifications

Spare Wheel Size Full-Size in
Spare Wheel Material Steel
Front Wheel Size 20 X 9 in
Front Wheel Material Aluminum
Rear Wheel Size 20 X 9 in
Rear Wheel Material Aluminum

Maximum Alternator Capacity (amps) 250
Cold Cranking Amps @ 0° F (Primary) 800

SAE Net Torque @ RPM 480 @ 1600
Engine Oil Cooler Regular Duty
Displacement 3.0 L/182
Engine Type Intercooled Turbo Diesel V-6
SAE Net Horsepower @ RPM 260 @ 3600

EPA Fuel Economy Est - Hwy 33 MPG
Cruising Range - Hwy 858.00 mi
EPA Fuel Economy Est - City 23 MPG
Cruising Range - City 598.00 mi
Fuel Economy Est-Combined 26 MPG
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 8
Eighth Gear Ratio (:1) 0.67
Transfer Case Gear Ratio (:1), Low N/A
Third Gear Ratio (:1) 2.11
First Gear Ratio (:1) 4.71
Sixth Gear Ratio (:1) 1.00
Trans Description Cont. Automatic w/OD
Final Drive Axle Ratio (:1) N/A
Fourth Gear Ratio (:1) 1.67
Second Gear Ratio (:1) 3.14
Fifth Gear Ratio (:1) 1.28
Trans Description Cont. Again N/A
Transfer Case Power Take Off No
Transfer Case Gear Ratio (:1), High N/A
Reverse Ratio (:1) 3.29
Transfer Case Model None
Seventh Gear Ratio (:1) 0.84
Trans Power Take Off N/A

Suspension Type - Rear Multi-Link
Suspension Type - Front Short And Long Arm
Axle Type - Rear Rigid Axle
Axle Type - Front Independent

Frame Type N/A

Brake Type 4-Wheel Disc
Disc - Rear (Yes or ) Yes
Brake ABS System (Second Line) 4-Wheel
Drum - Rear (Yes or ) N/A
Rear Brake Rotor Diam x Thickness 14.8 in
Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Front Brake Rotor Diam x Thickness 14.9 in

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 26 gal

Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 46.2 ft
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft

Spare Tire Size Full-Size
Front Tire Size P275/55TR20
Rear Tire Size P275/55TR20

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Maximum Trailering Capacity 8280 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 8280 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Tongue Wt. 828 lbs

Gross Axle Weight Rating 7800.00 lbs
As Spec'd Payload 1733.00 lbs
Curb Weight - Rear 2197 lbs
Gross Combined Wt Rating 13900 lbs
As Spec'd Curb Weight 5257.00 lbs
Option Weight - Front 0.00 lbs
Curb Weight 5257.00 lbs
Base Curb Weight 5257 lbs
Gross Vehicle Weight Rating 6990.00 lbs
Maximum Payload Capacity 1733.00 lbs
Curb Weight - Front 3060 lbs
Total Option Weight 0.00 lbs
Option Weight - Rear 0.00 lbs

Length, Overall 232.9 in
Cab to End of Frame N/A in
Front Hip Room 63.4 in
Overhang, Rear w/o bumper N/A in
Cargo Box (Area) Height 21.4 in
Second Hip Room 63.4 in
Ground Clearance, Rear 8.2 in
Second Head Room 39.8 in
Ground Clearance, Front 8.2 in
Cargo Box Width @ Top, Rear 66.4 in
Ground to Top of Load Floor N/A in
Height, Overall 77.5 in
Cargo Box Length @ Floor 67.4 in
Cargo Box Width @ Wheelhousings 51 in
Front Head Room 40.9 in
Wheelbase 144.5 in
Cargo Volume 53.9 ft³
Length, Overall w/rear bumper N/A in
Cargo Box Width @ Floor 66.4 in
Passenger Capacity 5
Width, Max w/o mirrors 82.1 in
Front Leg Room 40.9 in
Length, Overall w/o rear bumper N/A in
Ext'd Cab Cargo Volume N/A ft³
Overhang, Front N/A in
Front Shoulder Room 66 in
Second Shoulder Room 65.7 in
Second Leg Room 45.2 in
Tailgate Width 60 in

Radio: Uconnect 3 w/5" Display Standard
Streaming Audio Standard
Fixed Antenna Standard
6 Speakers Standard
Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Voice Activation, Radio Data System and External Memory Control Standard
1 LCD Monitor In The Front Standard

Laminated Glass Standard
Fixed Rear Window Standard
Black Front Bumper w/Black Rub Strip/Fascia Accent Standard
Perimeter/Approach Lights Standard
Deep Tinted Glass Standard
Black Grille Standard
Auto On/Off Aero-Composite Halogen Daytime Running Headlamps w/Delay-Off Standard
Black Power Heated Side Mirrors w/Convex Spotter and Manual Folding Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Soft Tonneau Cover Optional
Variable Intermittent Wipers Standard
Black Door Handles Standard
Cargo Lamp w/High Mount Stop Light Standard
Black Rear Step Bumper Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Tailgate Rear Cargo Access Standard
Black Side Windows Trim Standard
Side Steps Optional
Regular Box Style Standard
Wheels: 20" x 9" Aluminum Chrome Clad Optional
Tires: 275/55R20 OWL All Season Optional
Steel Spare Wheel Standard
Galvanized Steel/Aluminum Panels Standard

Power Rear Windows Standard
Proximity Key For Push Button Start Only Standard
Front Map Lights Standard
Air Filtration Standard
Compass Standard
Immobilizer Optional
Full Floor Console w/Covered Storage, Mini Overhead Console and 1 12V DC Power Outlet Optional
Cruise Control w/Steering Wheel Controls Standard
Rear Cupholder Standard
Instrument Panel Bin, Dashboard Storage, Interior Concealed Storage, Driver / Passenger And Rear Door Bins Standard
Seats w/Cloth Back Material Optional
Pickup Cargo Box Lights Standard
Analog Appearance Standard
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer Standard
Power Door Locks w/Autolock Feature Standard
Passenger Visor Vanity Mirror w/Passenger Illumination Optional
Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents Standard
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
1 12V DC Power Outlet Standard
Fade-To-Off Interior Lighting Standard
Urethane Gear Shifter Material Standard
Illuminated Front Cupholder Standard
Outside Temp Gauge Standard
Day-Night Rearview Mirror Standard
Full Folding Bench Front Facing Fold-Up Cushion Cloth Rear Seat Optional
Valet Function Standard
Full Cloth Headliner Standard
Cloth High-Back Bucket Seats Optional
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints Optional
Manual Air Conditioning Standard
Driver Information Center Standard
Manual Tilt/Telescoping Steering Column Standard
Front Center Armrest w/Storage Optional
Full Carpet Floor Covering Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
HVAC -inc: Underseat Ducts and Console Ducts Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard

Rear-Wheel Drive Standard
Class III Towing Equipment -inc: Hitch and Trailer Sway Control Standard
Single Stainless Steel Exhaust Standard
HD Shock Absorbers Standard
Transmission w/Driver Selectable Mode and Sequential Shift Control w/Steering Wheel Controls Standard
Electric Power-Assist Steering Standard
800CCA Maintenance-Free Battery Optional
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake Optional
Engine: 3.0L V6 Turbo Diesel Gen 3 (STD) Optional
GVWR: 6,990 lbs Optional
1730# Maximum Payload Optional
Short And Long Arm Front Suspension w/Coil Springs Standard
26 Gal. Fuel Tank Standard
Engine Oil Cooler Standard
Engine Auto Stop-Start Feature Standard
250 Amp Alternator Optional
Transmission: 8-Speed Automatic (8HP75) (DFV) (STD) Optional
3.21 Rear Axle Ratio Standard
Front Anti-Roll Bar Optional
Trailer Wiring Harness Standard
Solid Axle Rear Suspension w/Coil Springs Standard

Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
SiriusXM Guardian Emergency Sos Standard
Dual Stage Driver And Passenger Front Airbags Standard
Curtain 1st And 2nd Row Airbags Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Back-Up Camera Optional
ABS And Driveline Traction Control Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Tire Specific Low Tire Pressure Warning Standard
Airbag Occupancy Sensor Standard
Side Impact Beams Standard
Rear Child Safety Locks Standard
