2005 Volkswagen Passat GLS specs & colors
Station Wagon
MSRP
- 4dr GL Manual *Ltd Avail*
- $22,070
- 4dr GL Manual *Ltd Avail*
- $23,070
- 4dr GL Auto *Ltd Avail*
- $23,145
- 4dr GL TDI Auto
- $23,360
- 4dr GL Auto *Ltd Avail*
- $24,145
- 4dr GL TDI Auto
- $24,360
- 4dr GLS Manual
- $24,380
- 4dr GLS Manual
- $25,380
- 4dr GLS Auto
- $25,455
- 4dr GLS TDI Auto
- $25,660
- 4dr GLS 4MOTION Man *Ltd Avail*
- $26,130
- 4dr GLS Auto
- $26,455
- 4dr GLS TDI Auto
- $26,660
- 4dr GLS 4MOTION Man *Ltd Avail*
- $27,130
- 4dr GLS 4MOTION Auto
- $27,205
- 4dr GLS 4MOTION Auto
- $28,205
- 4dr GLX V6 Manual *Ltd Avail*
- $29,790
- 4dr GLX V6 Manual *Ltd Avail*
- $30,790
- 4dr GLX V6 Auto
- $30,865
- 4dr GLX V6 Auto
- $31,865
- 4dr GLX V6 4MOTION Auto
- $32,615
- 4dr GLX V6 4MOTION Auto
- $33,615
$28,205
Starting MSRP
Current listing price
Current listing price

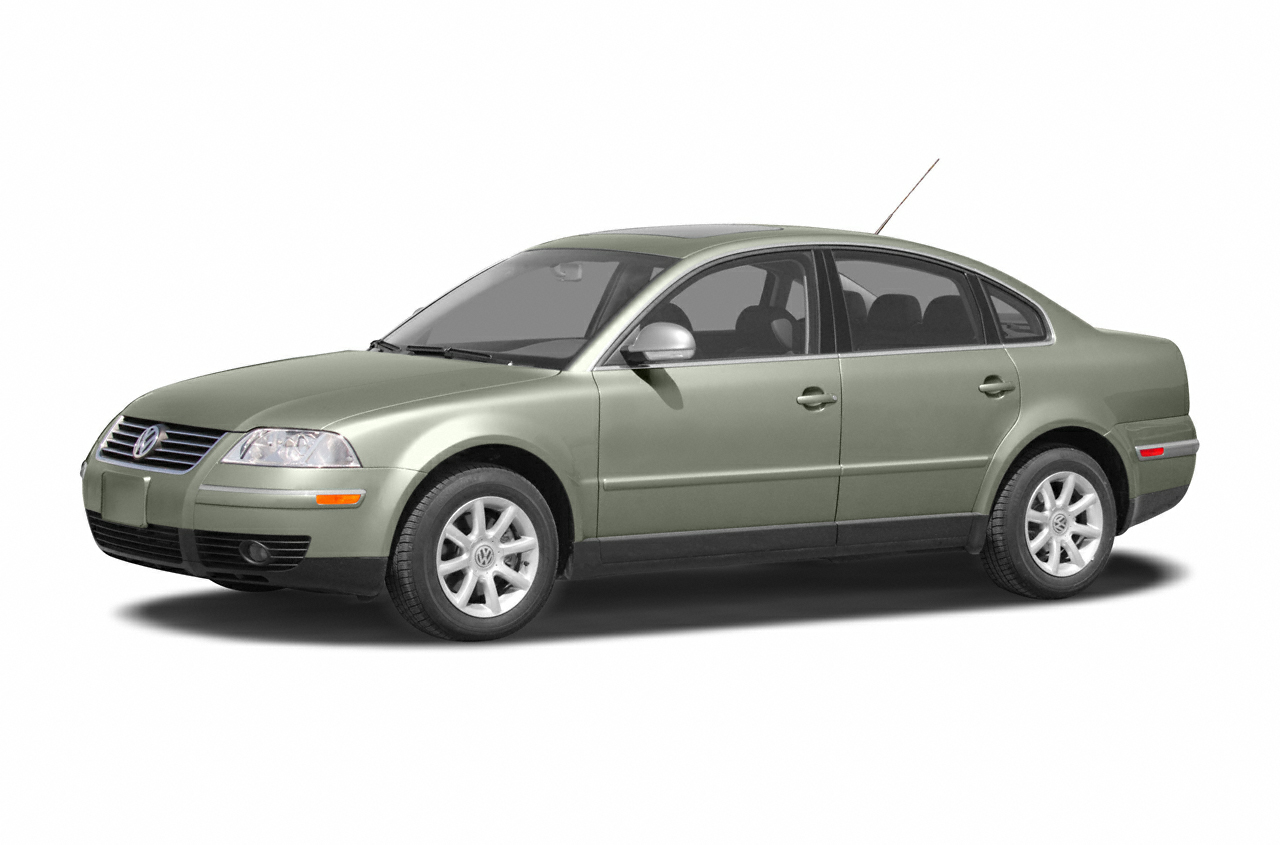

Showing the 2005 Volkswagen Passat 4dr GLS 4MOTION Auto
Shop NowKey specs
Color options
Interior
Medium Prarie Tan
Medium Mocha
Mocha
Pumice
Royal Blue
Gray
Black
Packages
Specifications
Highlights
|
Gas I4
Engine Type
|
|
20 City / 29 Hwy
MPG
|
|
170 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Not Available
Drum - Rear (Yes or )
|
|
9.6 x 0.39 in
Rear Brake Rotor Diam x Thickness
|
|
11.3 x 0.98 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
Pwr
Brake Type
|
Electrical
|
90
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
166 @ 1950-5000
SAE Net Torque @ RPM
|
|
170 @ 5900
SAE Net Horsepower @ RPM
|
|
1.8L/109
Displacement
|
|
Gas I4
Engine Type
|
|
A/T
Transmission w/Dual Shift Mode 5-Speed A/T Transmission Options
|
|
20 City / 29 Hwy
MPG
|
|
7.1 qts
Total Cooling System Capacity
|
Measurements
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Liftover Height
|
|
55 ft³
Cargo Volume to Seat 1
|
|
36 ft³
Cargo Volume to Seat 2
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
N/A
Trunk Volume
|
|
5
Passenger Capacity
|
|
93 ft³
Passenger Volume
|
|
184 in
Length, Overall
|
|
106 in
Wheelbase
|
|
N/A
Second Hip Room
|
|
55 in
Second Shoulder Room
|
|
35 in
Second Leg Room
|
|
38 in
Second Head Room
|
|
N/A
Front Hip Room
|
|
56 in
Front Shoulder Room
|
|
42 in
Front Leg Room
|
|
38 in
Front Head Room
|
|
69 in
Width, Max w/o mirrors
|
|
59 in
Height, Overall
|
|
60 in
Track Width, Front
|
|
60 in
Track Width, Rear
|
|
6 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
37 ft
Turning Diameter - Curb to Curb
|
|
3
Lock to Lock Turns (Steering)
|
|
14
Steering Ratio (:1), Overall
|
|
Pwr Rack & Pinion
Steering Type
|
Suspension
|
Double Wishbone
Suspension Type - Rear (Cont.)
|
|
Not Available
Suspension Type - Front (Cont.)
|
|
Independent
Suspension Type - Rear
|
|
Four-link
Suspension Type - Front
|
Tires & Wheels
|
N/A
Spare Wheel Material
|
|
Alloy
Rear Wheel Material
|
|
Alloy
Front Wheel Material
|
|
16 x 7 in
Spare Wheel Size
|
|
16 x 7 in
Rear Wheel Size
|
|
16 x 7 in
Front Wheel Size
|
|
P205/55HR16
Spare Tire Size
|
|
P205/55HR16
Rear Tire Size
|
|
P205/55HR16
Front Tire Size
|
Weight & Capacity
|
3,700 lbs
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
16 gal
Fuel Tank Capacity, Approx
|
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Dead Weight Hitch - Max Trailer Wt.
|
