Change trim
MSRP
- B6 AWD Momentum $52,850
- B6 AWD R-Design $55,950
- B6 AWD Inscription $55,950

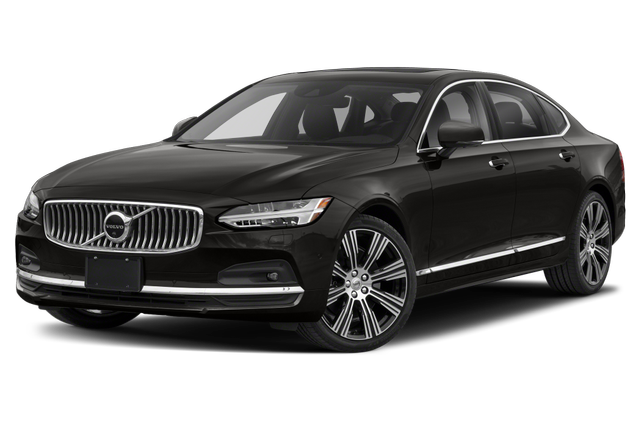

2022 Volvo S90 R-Design specs & colors
4dr Car
Key specs
Color options
Interior
Charcoal
Packages
$550
Starting MSRP
- Rubber Floor Mats
- License Plate Frame
- Cargo Tray
$340
Starting MSRP
- Rubber Floor Mats
- Cargo Tray
$1,900
Starting MSRP
- Air Purifier
- Power Operated Trunk Lid
- Graphical Head-Up Display
See all packages
$750
Starting MSRP
- Heated Steering Wheel
- Heated Rear Seats
- Headlight High Pressure Cleaning
Specifications
| EPA Classification | Midsize Cars |
| Front Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Spare Wheel Size | Compact in |
| Rear Wheel Material | Aluminum |
| Rear Wheel Size | 19 X 8.5 in |
| Front Wheel Size | 19 X 8.5 in |
| Maximum Alternator Capacity (amps) | N/A |
| Cold Cranking Amps @ 0° F (Primary) | 800 |
| Displacement | 2.0 L/120 |
| SAE Net Torque @ RPM | 310 @ 2100 |
| SAE Net Horsepower @ RPM | 295 @ 5400 |
| Engine Type | Intercooled Turbo Gas/Electric I-4 |
| Cruising Range - City | 365.70 mi |
| EPA Fuel Economy Est - Hwy | 31 MPG |
| EPA MPG Equivalent - Combined | N/A |
| EPA Fuel Economy Est - City | 23 MPG |
| Estimated Battery Range | N/A mi |
| EPA MPG Equivalent - Hwy | N/A |
| EPA MPG Equivalent - City | N/A |
| Fuel Economy Est-Combined | 26 MPG |
| Cruising Range - Hwy | 492.90 mi |
| Fifth Gear Ratio (:1) | 1.26 |
| Trans Description Cont. Again | N/A |
| Final Drive Axle Ratio (:1) | 3.20 |
| Fourth Gear Ratio (:1) | 1.52 |
| First Gear Ratio (:1) | 5.06 |
| Eighth Gear Ratio (:1) | 0.66 |
| Seventh Gear Ratio (:1) | 0.79 |
| Reverse Ratio (:1) | 3.99 |
| Sixth Gear Ratio (:1) | 1.00 |
| Trans Description Cont. | Automatic w/OD |
| Third Gear Ratio (:1) | 2.05 |
| Second Gear Ratio (:1) | 3.07 |
| Trans Type | 8 |
| Drivetrain | All Wheel Drive |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Suspension Type - Front (Cont.) | Double Wishbone |
| Suspension Type - Front | Double Wishbone |
| Suspension Type - Rear | Multi-Link |
| Brake Type | 4-Wheel Disc |
| Disc - Rear (Yes or ) | Yes |
| Brake ABS System | 4-Wheel |
| Rear Brake Rotor Diam x Thickness | 12.6 in |
| Disc - Front (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 13.6 in |
| Brake ABS System (Second Line) | N/A |
| Drum - Rear (Yes or ) | N/A |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 15.9 gal |
| Steering Type | Rack-Pinion |
| Lock to Lock Turns (Steering) | N/A |
| Turning Diameter - Wall to Wall | N/A ft |
| Turning Diameter - Curb to Curb | 38.7 ft |
| Steering Ratio (:1), Overall | N/A |
| Rear Tire Size | P255/40VR19 |
| Spare Tire Size | Compact |
| Front Tire Size | P255/40VR19 |
| Dead Weight Hitch - Max Trailer Wt. | 1650 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 1650 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 165 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 165 lbs |
| Base Curb Weight | 4232 lbs |
| Second Hip Room | 54.9 in |
| Second Head Room | 37.8 in |
| Passenger Volume | N/A ft³ |
| Track Width, Rear | 63.7 in |
| Trunk Volume | 13.5 ft³ |
| Second Shoulder Room | 55.4 in |
| Passenger Capacity | 5 |
| Height, Overall | 57.1 in |
| Front Hip Room | 56.4 in |
| Width, Max w/o mirrors | 74.6 in |
| Front Leg Room | 42.2 in |
| Wheelbase | 120.5 in |
| Min Ground Clearance | N/A in |
| Liftover Height | 26.5 in |
| Front Head Room | 37.8 in |
| Length, Overall | 200.4 in |
| Track Width, Front | 63.7 in |
| Second Leg Room | 40.4 in |
| Front Shoulder Room | 57.5 in |
| Real-Time Traffic Display | Standard |
| 2 LCD Monitors In The Front | Standard |
| Automatic Equalizer | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Radio Data System and 12 Gb Internal Memory | Standard |
| Window Grid Diversity Antenna | Standard |
| Radio: harman/kardon Premium Sound System -inc: Sensus Connect w/9" touchscreen, 14 speakers, 600-watt amp, voice control, Bluetooth connectivity w/audio streaming, 2 front USB-A ports, 2 rear USB-C ports, and digital services package (4-year subscription) including: Google Automotive Services w/Google Assistant, Google Maps and Google Play and data, Volvo Cars app remote services w/features such as remote lock/unlock and inductive charging | Optional |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Tires: 255/40VR19 AS | Optional |
| Black Grille w/Chrome Surround | Standard |
| Wheels: 19" 5-Spoke Diamond Cut Alloy | Optional |
| Rain Detecting Variable Intermittent Wipers | Standard |
| Fixed Rear Window w/Defroster and Power Blind | Optional |
| Galvanized Steel/Aluminum Panels | Standard |
| Auto On/Off Aero-Composite Led Low/High Beam Daytime Running Auto-Leveling Directionally Adaptive Auto High-Beam Headlamps w/Delay-Off | Standard |
| Perimeter/Approach Lights | Standard |
| Compact Spare Tire Mounted Inside Under Cargo | Standard |
| Black Power w/Tilt Down Heated Auto Dimming Side Mirrors w/Manual Folding and Turn Signal Indicator | Optional |
| Trunk Rear Cargo Access | Standard |
| Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent | Optional |
| Headlights-Automatic Highbeams | Standard |
| Laminated Glass | Optional |
| Express Open/Close Sliding And Tilting Laminated Glass 1st And 2nd Row Sunroof w/Power Sunshade | Standard |
| LED Brakelights | Standard |
| Front License Plate Bracket | Standard |
| Light Tinted Glass | Standard |
| Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent | Optional |
| Front Windshield -inc: Sun Visor Strip | Standard |
| Cornering Lights | Standard |
| Black Side Windows Trim | Optional |
| Steel Spare Wheel | Standard |
| Front And Rear Fog Lamps | Standard |
| Body-Colored Door Handles | Standard |
| HomeLink Garage Door Transmitter | Standard |
| Cargo Space Lights | Standard |
| Air Filtration | Standard |
| Rear Cupholder | Standard |
| Carpet Floor Trim | Standard |
| Front Center Armrest w/Storage and Rear Center Armrest w/Pass-Thru w/Storage | Standard |
| Full Floor Console w/Covered Storage and 3 12V DC Power Outlets | Standard |
| Sensus Navigation Integrated Navigation System w/Voice Activation | Optional |
| Fade-To-Off Interior Lighting | Standard |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Remote Releases -Inc: Power Cargo Access | Standard |
| Systems Monitor | Standard |
| Power Fuel Flap Locking Type | Standard |
| Smart Device Remote Engine Start | Standard |
| Rear HVAC w/Separate Controls | Optional |
| Illuminated Locking Glove Box | Standard |
| Front Cigar Lighter(s) | Standard |
| Cargo Area Concealed Storage | Standard |
| 3 12V DC Power Outlets | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination | Standard |
| Proximity Key For Doors And Push Button Start | Standard |
| Gauges -inc: Speedometer, Odometer, Tachometer, Trip Odometer and Trip Computer | Standard |
| Driver Foot Rest | Standard |
| HVAC -inc: Underseat Ducts, Headliner/Pillar Ducts and Console Ducts | Optional |
| 10-Way Driver Seat | Optional |
| 2 Seatback Storage Pockets | Standard |
| Full Cloth Headliner | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, 2 Door Curb/Courtesy, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Leatherette Door Trim Insert | Standard |
| Heated Front Sport Bucket Seats -inc: 14-way power front seats, 4-way power lumbar, front seat memory and power cushion extensions | Optional |
| Valet Function | Standard |
| Immobilizer | Standard |
| Power Rear Windows, Fixed 3rd Row Windows and w/Power Sun Blinds | Optional |
| Day-Night Auto-Dimming Rearview Mirror | Standard |
| Manual Tilt/Telescoping Steering Column | Standard |
| Ashtray | Standard |
| Smart Device Integration | Standard |
| Anti-Whiplash Fixed Front Head Restraints and Power Foldable Rear Head Restraints | Standard |
| Leather/Metal-Look Steering Wheel | Standard |
| 10-Way Passenger Seat | Optional |
| Memory Settings -inc: Door Mirrors | Standard |
| Front Cupholder | Standard |
| Front And Rear Map Lights | Standard |
| Interior Trim -inc: Aluminum Instrument Panel Insert, Aluminum Door Panel Insert, Aluminum Console Insert and Aluminum Interior Accents | Optional |
| Trip Computer | Standard |
| Redundant Digital Speedometer | Standard |
| Distance Pacing w/Traffic Stop-Go | Standard |
| FOB Controls -inc: Cargo Access and Windows | Standard |
| Voice Activated Dual Zone Front And Rear Automatic Air Conditioning | Optional |
| Outside Temp Gauge | Standard |
| Leather/Metal-Look Gear Shifter Material | Standard |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down | Standard |
| Tracker System | Standard |
| Digital/Analog Appearance | Standard |
| Perimeter Alarm | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| 60-40 Folding Split-Bench Front Facing Fold Forward Seatback Rear Seat | Standard |
| Nappa/Nubuck Leather Fr & Leatherette Rr Seats | Optional |
| Power Door Locks w/Autolock Feature | Standard |
| Instrument Panel Bin, Driver / Passenger And Rear Door Bins | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Hybrid Electric Motor | Standard |
| Lithium Ion Traction Battery | Standard |
| 3.20 Axle Ratio | Standard |
| 80-Amp/Hr 800CCA Maintenance-Free Battery w/Run Down Protection | Standard |
| Quasi-Dual Stainless Steel Exhaust | Standard |
| 15.9 Gal. Fuel Tank | Standard |
| Transmission: 8-Speed Geartronic Automatic -inc: adaptive shift | Standard |
| Engine Oil Cooler | Standard |
| Multi-Link Rear Suspension w/Transverse Leaf Springs | Standard |
| Engine: 2.0L I4 Turbocharged MHEV -inc: start/stop | Standard |
| Double Wishbone Front Suspension w/Coil Springs | Standard |
| Regenerative 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake | Standard |
| Full-Time All-Wheel | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Collision Mitigation Support | Standard |
| Side Impact Beams | Standard |
| Tire Specific Low Tire Pressure Warning | Standard |
| DSTC/RSC Electronic Stability Control (ESC) And Roll Stability Control (RSC) | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| ABS And Driveline Traction Control | Standard |
| Lane Keeping Aid/Run-off Road Mitigation Lane Keeping Assist | Standard |
| BLIS Blind Spot | Standard |
| Back-Up Camera | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Volvo On-Call Emergency Sos | Standard |
| Collision Mitigation-Front | Standard |
| Restricted Driving Mode | Standard |
| Front And Rear Parking Sensors | Standard |
| Airbag Occupancy Sensor | Standard |
| Collision Mitigation-Rear | Standard |
| Power Rear Child Safety Locks | Standard |
| Lane Keeping Aid/Run-off Road Mitigation Lane Departure Warning | Standard |
| IntelliSafe Assist - Pilot Assist | Standard |
| Driver Monitoring-Alert | Standard |
| Curtain 1st And 2nd Row Airbags | Standard |
| Driver Knee Airbag | Standard |
