2020 Ford F-150 XLT specs & colors

MSRP
XL 2WD Reg Cab 6.5' Box
$28,745
XL 2WD Reg Cab 8' Box
$29,045
XL 2WD SuperCab 6.5' Box
$32,830
XL 4WD Reg Cab 6.5' Box
$33,390
XL 4WD Reg Cab 8' Box
$33,690
XL 2WD SuperCab 8' Box
$34,135
XLT 2WD Reg Cab 6.5' Box
$34,760
XLT 2WD Reg Cab 8' Box
$35,060
XL 2WD SuperCrew 5.5' Box
$35,285
XL 4WD SuperCab 6.5' Box
$36,260
XL 2WD SuperCrew 6.5' Box
$36,590
XLT 2WD SuperCab 6.5' Box
$37,670
XLT 4WD Reg Cab 6.5' Box
$38,185
XLT 4WD Reg Cab 8' Box
$38,485
XL 4WD SuperCab 8' Box
$38,515
XL 4WD SuperCrew 5.5' Box
$38,795
XLT 2WD SuperCab 8' Box
$38,975
XLT 2WD SuperCrew 5.5' Box
$40,020
XL 4WD SuperCrew 6.5' Box
$41,050
XLT 4WD SuperCab 6.5' Box
$41,095
XLT 2WD SuperCrew 6.5' Box
$41,325
LARIAT 2WD SuperCab 6.5' Box
$43,250
XLT 4WD SuperCab 8' Box
$43,350
XLT 4WD SuperCrew 5.5' Box
$43,515
LARIAT 2WD SuperCab 8' Box
$43,550
LARIAT 2WD SuperCrew 5.5' Box
$45,610
XLT 4WD SuperCrew 6.5' Box
$45,770
LARIAT 2WD SuperCrew 6.5' Box
$45,910
LARIAT 4WD SuperCab 6.5' Box
$46,675
LARIAT 4WD SuperCab 8' Box
$47,925
LARIAT 4WD SuperCrew 5.5' Box
$49,035
LARIAT 4WD SuperCrew 6.5' Box
$50,285
King Ranch 2WD SuperCrew 5.5' Box
$52,990
King Ranch 2WD SuperCrew 6.5' Box
$53,290
Raptor 4WD SuperCab 5.5' Box
$53,455
Platinum 2WD SuperCrew 5.5' Box
$55,520
Platinum 2WD SuperCrew 6.5' Box
$55,820
King Ranch 4WD SuperCrew 5.5' Box
$56,415
Raptor 4WD SuperCrew 5.5' Box
$56,440
King Ranch 4WD SuperCrew 6.5' Box
$56,715
Platinum 4WD SuperCrew 5.5' Box
$58,945
Platinum 4WD SuperCrew 6.5' Box
$59,245
Limited 2WD SuperCrew 5.5' Box
$67,735
Limited 4WD SuperCrew 5.5' Box
$71,160
$34,760
Starting MSRP
Current listing price

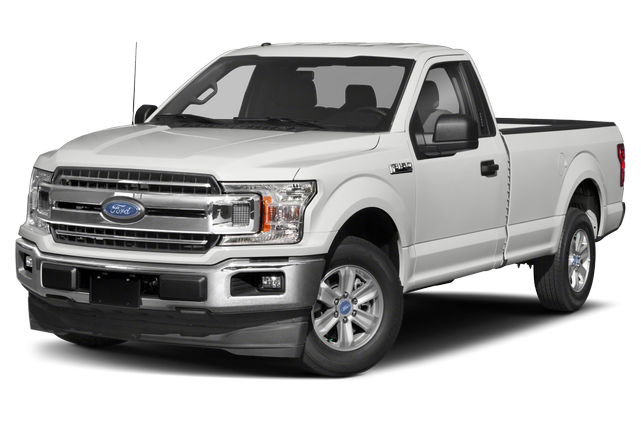

2020 Ford F-150 XLT

Showing the 2020 Ford F-150 XLT 2WD Reg Cab 6.5' Box

Shop Now

Key specs

Color options

Interior
Ebony
Boxster Red

Packages

  • $0

    Starting MSRP

  • $995

    Starting MSRP

    • Towing capability up to 11,300 lbs
    • tailgate LED
    • Pro Trailer Backup Assist
    See more detail
    • Towing capability up to 11,300 lbs
    • tailgate LED
    • Pro Trailer Backup Assist
    • Class IV Trailer Hitch Receiver
    • towing capability up to 6,000 lbs
    • on 3.3L V6 PFDI engine (99B) and 2.7L EcoBoost engine (99P) or up to 7,000 lbs
    • on 3.5L EcoBoost engine (994)
    • 3.5L EcoBoost High Output engine (99G) and 5.0L V8 engine (995)
    • smart trailer tow connector and 4-pin/7-pin wiring harness
    • Upgraded Front Stabilizer Bar
  • $2,100

    Starting MSRP

    • 8-Way Power Driver Seat
    • Rear Window Defroster
    • Auto-Dimming Rearview Mirror
    See more detail
    • 8-Way Power Driver Seat
    • Rear Window Defroster
    • Auto-Dimming Rearview Mirror
    • SiriusXM Radio
    • 5 speakers and 6-month prepaid subscription
    • Service is not available in Alaska and Hawaii
    • SiriusXM audio and data services each require a subscription sold separately
    • or as a package
    • by SiriusXM Radio Inc
    • If you decide to continue service after your trial
    • the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates
    • Fees and taxes apply
    • To cancel you must call SiriusXM at 1-866-635-2349
    • See SiriusXM Customer Agreement for complete terms at www.siriusxm.com
    • All fees and programming subject to change
    • Sirius
    • XM and all related marks and logos are trademarks of Sirius XM Radio Inc
    • 4.2" Productivity Screen in Instrument Cluster
    • Fixed Backlight w/Privacy Glass

Specifications

Highlights

Regular Unleaded V-6
Engine Type
19 City / 25 Hwy
MPG
395 hp
325 hp
290 hp
Horsepower
3
Seating Capacity

Brakes

Yes
Disc - Front (Yes or )
4-Wheel
Brake ABS System (Second Line)
4-Wheel
Brake ABS System
4-Wheel Disc
Brake Type
N/A
Drum - Rear (Yes or )
14 in
Rear Brake Rotor Diam x Thickness
14 in
Front Brake Rotor Diam x Thickness
Yes
Disc - Rear (Yes or )

Electrical

610
Cold Cranking Amps @ 0° F (Primary)
200
Maximum Alternator Capacity (amps)

Engine

265 @ 4000
SAE Net Torque @ RPM
Regular Unleaded V-6
Engine Type
3.3 L/204
Displacement
290 @ 6500
SAE Net Horsepower @ RPM
6-Speed A/T
10-Speed A/T
A/T
Transmission w/Dual Shift Mode
Transmission Options
19 City / 25 Hwy
MPG
N/A
Total Cooling System Capacity

Measurements

3
Passenger Capacity
N/A
Ext'd Cab Cargo Volume
62 ft³
Cargo Volume
60 in
Tailgate Width
21 in
Cargo Box (Area) Height
51 in
Cargo Box Width @ Wheelhousings
65 in
Cargo Box Width @ Floor
65 in
Cargo Box Width @ Top, Rear
78 in
Cargo Box Length @ Floor
9 in
Ground Clearance, Rear
9 in
Ground Clearance, Front
35 in
Ground to Top of Load Floor
N/A
Cab to End of Frame
N/A
Overhang, Rear w/o bumper
38 in
Overhang, Front
76 in
Height, Overall
80 in
Width, Max w/o mirrors
209 in
Length, Overall
N/A
Length, Overall w/rear bumper
N/A
Length, Overall w/o rear bumper
122 in
Wheelbase
N/A
Second Hip Room
N/A
Second Shoulder Room
N/A
Second Leg Room
N/A
Second Head Room
63 in
Front Hip Room
67 in
Front Shoulder Room
44 in
Front Leg Room
41 in
Front Head Room

Safety

Standard
Stability Control
Standard
Blind Spot Monitor
Standard
Backup Camera

Steering

N/A
Turning Diameter - Wall to Wall
41 ft
Turning Diameter - Curb to Curb
N/A
Steering Ratio (:1), Overall
Rack-Pinion
Steering Type

Suspension

Double Wishbone
Suspension Type - Front
Leaf
Suspension Type - Rear
Independent
Axle Type - Front
Rigid Axle
Axle Type - Rear

Tires & Wheels

Steel
Spare Wheel Material
Aluminum
Rear Wheel Material
Aluminum
Front Wheel Material
Full-Size in
Spare Wheel Size
17 X 7.5 in
Rear Wheel Size
17 X 7.5 in
Front Wheel Size
Full-Size
Spare Tire Size
P245/70SR17
Front Tire Size
P245/70SR17
Rear Tire Size

Weight & Capacity

4,069 lbs
Base Curb Weight
2,383 lbs
Curb Weight - Front
1,686 lbs
Curb Weight - Rear
0 lbs
Option Weight - Front
0 lbs
Option Weight - Rear
4,069 lbs
As Spec'd Curb Weight
2,031 lbs
As Spec'd Payload
2,031 lbs
Maximum Payload Capacity
9,500 lbs
Gross Combined Wt Rating
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
500 lbs
Dead Weight Hitch - Max Tongue Wt.
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
500 lbs
Wt Distributing Hitch - Max Tongue Wt.
N/A
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Fifth Wheel Hitch - Max Tongue Wt.
5,000 lbs
Maximum Trailering Capacity
6,100 lbs
Gross Vehicle Weight Rating
0 lbs
Total Option Weight
4,069 lbs
Curb Weight
6,350 lbs
Gross Axle Weight Rating
N/A
Aux Fuel Tank Capacity, Approx
23 gal
Fuel Tank Capacity, Approx

Compare trims

2020 Ford F-150 XLT

Wondering which trim is right for you?
