2002 Ford Ranger Edge Plus specs & colors
Extended Cab Pickup
MSRP
- Reg Cab 2.3L XL
- $12,565
- Reg Cab 3.0L XL
- $12,955
- Reg Cab LWB 3.0L XL
- $13,490
- Reg Cab 2.3L XLT
- $14,585
- Reg Cab 3.0L Edge
- $15,035
- Reg Cab 3.0L XLT
- $15,305
- 2dr Supercab 2.3L XL
- $16,235
- 2dr Supercab 3.0L XL
- $16,625
- 2dr Supercab 2.3L XLT
- $16,820
- Reg Cab LWB 3.0L XLT
- $16,930
- 2dr Supercab 3.0L XLT
- $17,215
- 2dr Supercab 3.0L Edge
- $17,475
- 2dr Supercab 4.0L Edge
- $18,195
- 2dr Supercab 3.0L Tremor
- $18,825
- 2dr Supercab 3.0L XLT Appearance
- $18,865
- Reg Cab LWB 4.0L XL Fleet 4WD
- $19,250
- Reg Cab 3.0L Edge Plus 4WD
- $19,270
- 2dr Supercab 4.0L XL Fleet 4WD
- $19,495
- 4dr Supercab 3.0L XLT Appearance
- $19,950
- 4dr Supercab 3.0L Edge Plus
- $19,960
- 4dr Supercab 3.0L Edge 4WD
- $20,675
- 2dr Supercab 4.0L XLT 4WD
- $20,690
- 4dr Supercab 4.0L XLT Appearance
- $21,035
- 4dr Supercab 3.0L Tremor Plus
- $21,130
- 4dr Supercab 4.0L Edge 4WD
- $21,200
- 4dr Supercab 4.0L XLT 4WD
- $22,330
- 4dr Supercab 4.0L XLT Off/Rd 4WD MT
- $22,360
- 4dr Supercab 4.0L Edge Plus 4WD
- $24,085
- 4dr Supercab 4.0L XLT Off/Rd 4WD AT
- $24,515
- 4dr Supercab 4.0L XLT FX4 4WD
- $25,010
$19,960
Starting MSRP
Current listing price
Current listing price

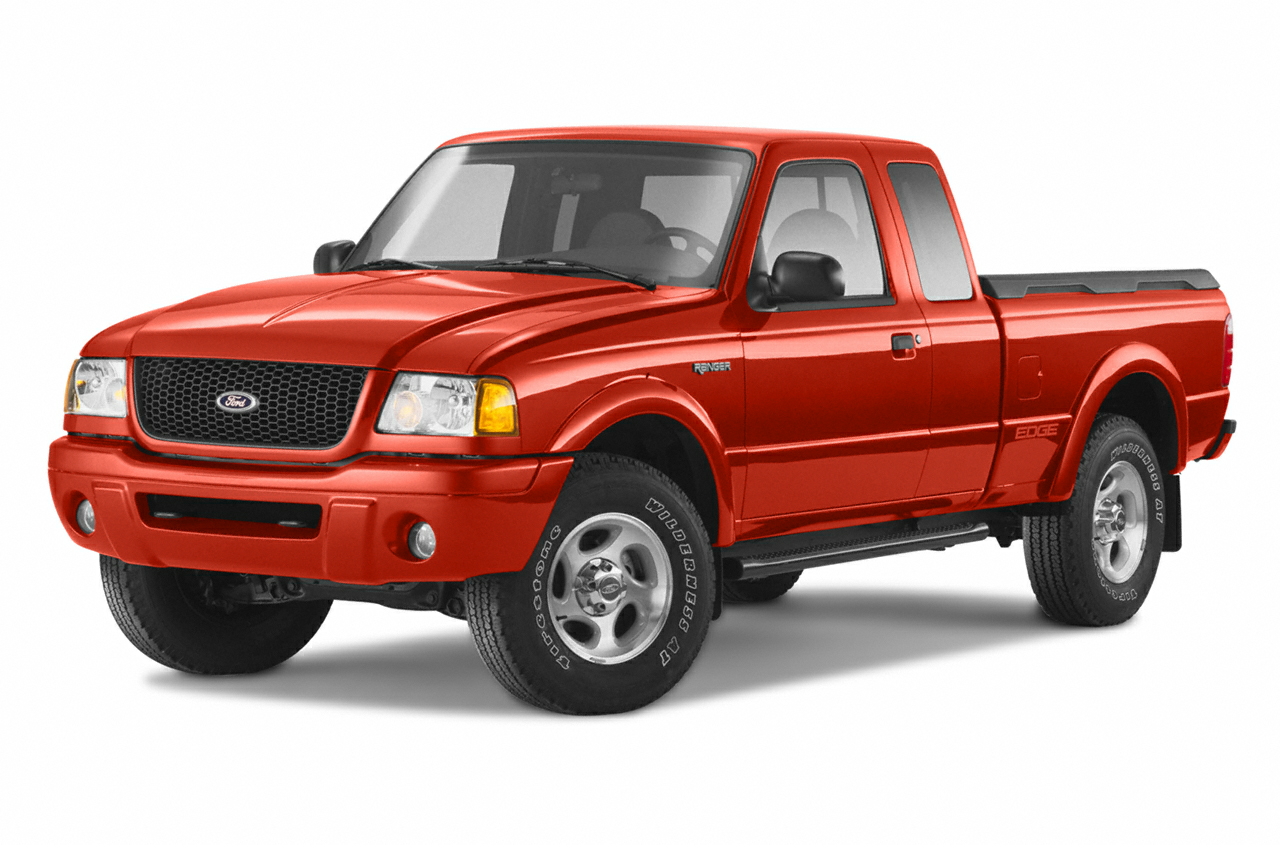

Showing the 2002 Ford Ranger 4dr Supercab 3.0L Edge Plus
Shop 2002 Ford Ranger
Key specs
Color options
Interior
Medium Prarie Tan
Oxford White / Lt Graphite
Packages
$0
Starting MSRP
Specifications
Highlights
|
Gas V6
Engine Type
|
|
17 City / 22 Hwy
MPG
|
|
154 hp
Horsepower
|
|
4
Seating Capacity
|
Brakes
|
Power
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Not Available
Disc - Rear (Yes or )
|
|
10.28 x 1.33 in
Front Brake Rotor Diam x Thickness
|
|
Not Available in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Drum - Rear (Yes or )
|
Electrical
|
95
Maximum Alternator Capacity (amps)
|
|
540
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
Gas V6
Engine Type
|
|
3.0L/182
Displacement
|
|
154 @ 5000
SAE Net Horsepower @ RPM
|
|
180 @ 3750
SAE Net Torque @ RPM
|
|
A/T
5-Speed A/T Transmission Options
|
|
17 City / 22 Hwy
MPG
|
|
7.8 qts
Total Cooling System Capacity
|
Measurements
|
37 ft³
Ext'd Cab Cargo Volume
|
|
37 ft³
Cargo Volume
|
|
52 in
Tailgate Width
|
|
28 in
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
44 in
Overhang, Rear w/o bumper
|
|
33 in
Overhang, Front
|
|
65 in
Height, Overall
|
|
69 in
Width, Max w/o mirrors
|
|
N/A
Length, Overall
|
|
N/A
Length, Overall w/rear bumper
|
|
203 in
Length, Overall w/o rear bumper
|
|
126 in
Wheelbase
|
|
20 in
Second Hip Room
|
|
15 in
Second Shoulder Room
|
|
40 in
Second Leg Room
|
|
36 in
Second Head Room
|
|
53 in
Front Hip Room
|
|
54 in
Front Shoulder Room
|
|
42 in
Front Leg Room
|
|
39 in
Front Head Room
|
|
17 in
Cargo Box (Area) Height
|
|
40 in
Cargo Box Width @ Wheelhousings
|
|
52 in
Cargo Box Width @ Floor
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
72 in
Cargo Box Length @ Floor
|
|
7 in
Ground Clearance, Rear
|
|
N/A
Ground Clearance, Front
|
|
5
Passenger Capacity
|
Steering
|
Pwr Rack & Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
43 ft
Turning Diameter - Curb to Curb
|
|
45 ft
Turning Diameter - Wall to Wall
|
Suspension
|
Ford Semi-Floating
Axle Type - Rear
|
|
Independent SLA
Axle Type - Front
|
|
2-Stage Multi-Leaf
Suspension Type - Rear
|
|
Torsion Bar
Suspension Type - Front
|
Tires & Wheels
|
P235/75R15
Spare Tire Size
|
|
P235/75R15
Rear Tire Size
|
|
P235/75R15
Front Tire Size
|
|
15 x 7.0 in
Front Wheel Size
|
|
15 x 7.0 in
Rear Wheel Size
|
|
15 x 7.0 in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
4,940 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
3,271 lbs
Curb Weight
|
|
5,310 lbs
Gross Axle Weight Rating
|
|
1,669 lbs
As Spec'd Payload
|
|
3,271 lbs
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
1,375 lbs
Curb Weight - Rear
|
|
1,896 lbs
Curb Weight - Front
|
|
N/A
Base Curb Weight
|
|
7,500 lbs
Gross Combined Wt Rating
|
|
2,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
200 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
6,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
900 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
20 gal
Fuel Tank Capacity, Approx
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
1,669 lbs
Maximum Payload Capacity
|
