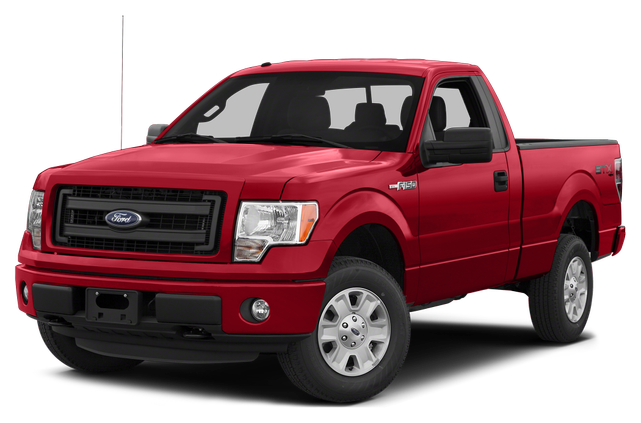

2014 Ford F-150 STX specs & colors

Regular Cab Pickup

Change trim

MSRP
Change trim
$28,760
Starting MSRP
Current listing price

Showing the 2014 Ford F-150 2WD Reg Cab 126" STX

Shop Now

Key specs

Color options

Interior

Black

Crema / Black

Packages

$0

Starting MSRP

$1,095

Starting MSRP

  • color-keyed carpet and unique box decal
  • Tires: P275/55R20 BSW (4)
  • LT275/65R18 OWL A/T spare tire

STX Sport Package

$1,095

Starting MSRP

  • color-keyed carpet and unique box decal
  • Tires: P275/55R20 BSW (4)
  • LT275/65R18 OWL A/T spare tire
  • Fog Lamps
  • Black Tubular Running Boards
  • Wheels: 20" Machined Aluminum Painted
  • Black Billet Grille Insert w/Body-Color Surround

$1,885

Starting MSRP

  • Communications Package
  • SYNC Voice Activated Communication & Entertainment
  • 911 assist and vehicle health reports

Equipment Group 201A Mid

$1,885

Starting MSRP

  • Communications Package
  • SYNC Voice Activated Communication & Entertainment
  • 911 assist and vehicle health reports
  • SYNC Applink provides control of certain smartphone applications using SYNC voice commands
  • Connect to apps like Pandora and more w/your iPhone
  • Blackberry or Android platform mobile phone
  • Additional Steering Wheel Audio Controls
  • Trailer Tow Package
  • 7-pin wiring harness and class IV trailer hitch receiver
  • Auxiliary Transmission Oil Cooler
  • SelectShift Transmission
  • Upgraded Radiator
  • STX Decor Package
  • Fog Lamps
  • Wheels: 18" Machined Cast-Aluminum
  • 4" Polished Stainless Steel Tubular Running Boards
  • Tires: P265/60R18 OWL A/S (5)
  • SiriusXM Satellite Radio
  • Available in the 48 contiguous United States and D.C

Specifications

Rear Wheel Size 17 X 7.5 in
Front Wheel Size 17 X 7.5 in
Spare Wheel Material Steel
Spare Wheel Size Full-Size in
Rear Wheel Material Aluminum
Front Wheel Material Aluminum

Maximum Alternator Capacity (amps) 155
Cold Cranking Amps @ 0° F (Primary) 750

Engine Type Regular Unleaded V-6
SAE Net Horsepower @ RPM 302 @ 6500
Engine Oil Cooler None
Displacement 3.7 L/228
SAE Net Torque @ RPM 278 @ 4000

Cruising Range - City 442.00 mi
Fuel Economy Est-Combined 19 MPG
EPA Fuel Economy Est - City 17 MPG
Cruising Range - Hwy 598.00 mi
EPA Fuel Economy Est - Hwy 23 MPG
Estimated Battery Range N/A mi

Third Gear Ratio (:1) 1.52
Trans Description Cont. Automatic w/OD
Drivetrain Rear Wheel Drive
First Gear Ratio (:1) 4.17
Fifth Gear Ratio (:1) 0.86
Sixth Gear Ratio (:1) 0.69
Transfer Case Power Take Off No
Transfer Case Model None
Transfer Case Gear Ratio (:1), Low N/A
Fourth Gear Ratio (:1) 1.14
Second Gear Ratio (:1) 2.34
Final Drive Axle Ratio (:1) N/A
Reverse Ratio (:1) 3.40
Trans Type 6
Trans Power Take Off N/A
Trans Description Cont. Again N/A
Transfer Case Gear Ratio (:1), High N/A

Axle Type - Rear Rigid Axle
Suspension Type - Rear Leaf
Axle Type - Front Independent
Suspension Type - Front Double Wishbone

Frame Type N/A

Front Brake Rotor Diam x Thickness 13.8 in
Rear Brake Rotor Diam x Thickness 13.7 in
Brake ABS System (Second Line) 4-Wheel
Brake Type 4-Wheel Disc
Disc - Rear (Yes or ) Yes
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Drum - Rear (Yes or ) N/A

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 26 gal

Turning Diameter - Curb to Curb 41.7 ft
Steering Ratio (:1), Overall N/A
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft

Rear Tire Size P235/75SR17
Spare Tire Size Full-Size
Front Tire Size P235/75SR17

Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1375 lbs
Fifth Wheel Hitch - Max Trailer Wt. 5500 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Wt Distributing Hitch - Max Trailer Wt. 5500 lbs
Wt Distributing Hitch - Max Tongue Wt. 550 lbs
Maximum Trailering Capacity 5500 lbs

Curb Weight - Rear 2010 lbs
Maximum Payload Capacity 1765.00 lbs
Curb Weight 4685.00 lbs
Option Weight - Front 0.00 lbs
Gross Combined Wt Rating 10400 lbs
Gross Vehicle Weight Rating 6450.00 lbs
Curb Weight - Front 2675 lbs
Gross Axle Weight Rating 6650.00 lbs
As Spec'd Payload 1765.00 lbs
As Spec'd Curb Weight 4685.00 lbs
Option Weight - Rear 0.00 lbs
Total Option Weight 0.00 lbs
Base Curb Weight 4685 lbs

Cargo Volume 65.5 ft³
Cargo Box (Area) Height 22.4 in
Ground Clearance, Front 8.2 in
Length, Overall w/rear bumper N/A in
Front Leg Room 41.4 in
Second Head Room N/A in
Ground Clearance, Rear 8.2 in
Tailgate Width 60.3 in
Wheelbase 126 in
Cargo Box Width @ Wheelhousings 50 in
Overhang, Front N/A in
Ground to Top of Load Floor 34.1 in
Second Hip Room N/A in
Ext'd Cab Cargo Volume N/A ft³
Cargo Box Width @ Top, Rear 65.2 in
Overhang, Rear w/o bumper N/A in
Front Hip Room 60.5 in
Width, Max w/o mirrors 79.2 in
Front Head Room 41 in
Length, Overall 213.2 in
Second Shoulder Room N/A in
Cargo Box Length @ Floor 78 in
Cargo Box Width @ Floor 65.2 in
Passenger Capacity 3
Second Leg Room N/A in
Length, Overall w/o rear bumper N/A in
Front Shoulder Room 65.9 in
Cab to End of Frame N/A in
Height, Overall 74.8 in

Fixed Antenna Standard
Radio: AM/FM Stereo/Single-CD Player w/Clock -inc: auxiliary audio input jack, speed-compensated volume control and customer information display Optional
4 Speakers Standard
Radio w/Clock Standard

Black Power Side Mirrors w/Convex Spotter and Manual Folding Optional
Cargo Lamp w/High Mount Stop Light Standard
Black Door Handles Standard
Black Side Windows Trim Standard
Regular Box Style Standard
Black Grille w/Body-Color Surround Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Aero-Composite Halogen Headlamps Standard
Steel Spare Wheel Standard
Perimeter/Approach Lights Optional
Galvanized Steel/Aluminum Panels Standard
Fixed Rear Window Standard
Tailgate Rear Cargo Access Standard
Variable Intermittent Wipers Standard
Body-Colored Rear Step Bumper Optional
Light Tinted Glass Standard
Wheels: 17" Machined-Aluminum w/Painted Accents (STD) Optional
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent Optional
Tires: P235/75R17 BSW A/T (5) (STD) Standard
Manual Tailgate/Rear Door Lock Optional

Day-Night Rearview Mirror Standard
Perimeter Alarm Optional
Front Cupholder Standard
Cloth 40/20/40 Front Seat -inc: manual driver lumbar Optional
Pickup Cargo Box Lights Standard
Outside Temp Gauge Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Optional
2 12V DC Power Outlets Standard
Manual w/Tilt Front Head Restraints Optional
Securilock Anti-Theft Ignition (pats) Immobilizer Standard
Analog Appearance Standard
Full Cloth Headliner Standard
Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Optional
Interior Trim -inc: Cabback Insulator Standard
Urethane Gear Shifter Material Standard
Front Center Armrest Optional
Front Cigar Lighter(s) Standard
Manual Tilt Steering Column Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Cruise Control w/Steering Wheel Controls Optional
Passenger Visor Vanity Mirror Standard
Full Vinyl/Rubber Floor Covering Standard
Fade-To-Off Interior Lighting Standard
Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins and 1st Row Underseat Storage Optional
Manual Air Conditioning Standard
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
Power Door Locks w/Autolock Feature Optional

Front Anti-Roll Bar Standard
Electric Power-Assist Speed-Sensing Steering Standard
Solid Axle Rear Suspension w/Leaf Springs Standard
1710# Maximum Payload Standard
Transmission w/Oil Cooler Standard
Double Wishbone Front Suspension w/Coil Springs Standard
Single Stainless Steel Exhaust Standard
Trailer Wiring Harness Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs and Hill Hold Control Standard
Engine: 3.7L V6 FFV (STD) Standard
GVWR: 6,450 lbs Payload Package Standard
Towing Equipment -inc: Trailer Sway Control Standard
3.55 Axle Ratio (STD) Standard
Rear-Wheel Drive Standard
155 Amp Alternator Standard
26 Gal. Fuel Tank Standard
Transmission: Electronic 6-Speed Automatic -inc: tow/haul mode (STD) Standard
78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection Standard
Gas-Pressurized Shock Absorbers Standard

Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Optional
Safety Canopy System Curtain 1st Row Airbags Standard
Side Impact Beams Standard
Dual Stage Driver And Passenger Front Airbags Standard
AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Airbag Occupancy Sensor Standard
ABS And Driveline Traction Control Standard
Low Tire Pressure Warning Standard
