2014 Ford F-150 STX specs & colors

Extended Cab Pickup

Change trim

MSRP
Change trim
$31,460
Starting MSRP
Current listing price

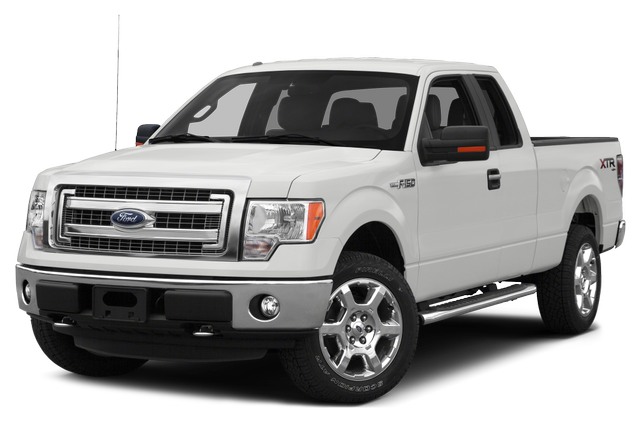

Showing the 2014 Ford F-150 2WD SuperCab 145" STX

Shop Now

Key specs

Color options

Interior

Steel Gray

Silverstone

Crema / Black

Packages

$1,095

Starting MSRP

  • color-keyed carpet and unique box decal
  • Tires: P275/55R20 BSW (4)
  • LT275/65R18 OWL A/T spare tire

STX Sport Package

$1,095

Starting MSRP

  • color-keyed carpet and unique box decal
  • Tires: P275/55R20 BSW (4)
  • LT275/65R18 OWL A/T spare tire
  • Fog Lamps
  • Black Tubular Running Boards
  • Wheels: 20" Machined Aluminum Painted
  • Black Billet Grille Insert w/Body-Color Surround,

$0

Starting MSRP

$1,885

Starting MSRP

  • Communications Package
  • SYNC Voice Activated Communication & Entertainment
  • 911 assist and vehicle health reports

Equipment Group 201A Mid

$1,885

Starting MSRP

  • Communications Package
  • SYNC Voice Activated Communication & Entertainment
  • 911 assist and vehicle health reports
  • SYNC Applink provides control of certain smartphone applications using SYNC voice commands
  • Connect to apps like Pandora and more w/your iPhone
  • Blackberry or Android platform mobile phone
  • Additional Steering Wheel Audio Controls
  • Trailer Tow Package
  • 7-pin wiring harness and class IV trailer hitch receiver
  • Auxiliary Transmission Oil Cooler
  • SelectShift Transmission
  • Upgraded Radiator
  • STX Decor Package
  • Fog Lamps
  • 5" Chrome Running Boards
  • Wheels: 18" Machined-Aluminum w/Painted Inserts
  • Tires: P265/60R18 OWL A/S (5)
  • SiriusXM Satellite Radio
  • Available in the 48 contiguous United States and D.C

Specifications

Front Wheel Size 17 X 7.5 in
Rear Wheel Size 17 X 7.5 in
Spare Wheel Size Full-Size in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) 155

Engine Type Regular Unleaded V-6
Displacement 3.7 L/228
SAE Net Horsepower @ RPM 302 @ 6500
SAE Net Torque @ RPM 278 @ 4000
Engine Oil Cooler None

EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - City 442.00 mi
EPA Fuel Economy Est - City 17 MPG
Fuel Economy Est-Combined 19 MPG
Cruising Range - Hwy 598.00 mi
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 6
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.17
Second Gear Ratio (:1) 2.34
Third Gear Ratio (:1) 1.52
Fourth Gear Ratio (:1) 1.14
Fifth Gear Ratio (:1) 0.86
Sixth Gear Ratio (:1) 0.69
Reverse Ratio (:1) 3.40
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model None
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No

Suspension Type - Front Double Wishbone
Suspension Type - Rear Leaf
Axle Type - Front Independent
Axle Type - Rear Rigid Axle

Frame Type N/A

Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.8 in
Rear Brake Rotor Diam x Thickness 13.7 in
Drum - Rear (Yes or ) N/A

Fuel Tank Capacity, Approx 26 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 47 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P235/75SR17
Rear Tire Size P235/75SR17
Spare Tire Size Full-Size

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 6400 lbs
Wt Distributing Hitch - Max Tongue Wt. 640 lbs
Fifth Wheel Hitch - Max Trailer Wt. 6400 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1600 lbs
Maximum Trailering Capacity 6400 lbs

Base Curb Weight 5043 lbs
Curb Weight - Front 2884 lbs
Curb Weight - Rear 2159 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 5043.00 lbs
As Spec'd Payload 1657.00 lbs
Maximum Payload Capacity 1657.00 lbs
Gross Combined Wt Rating 11700 lbs
Gross Axle Weight Rating 7250.00 lbs
Curb Weight 5043.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 6700.00 lbs

Passenger Capacity 6
Front Head Room 41 in
Front Leg Room 41.4 in
Front Shoulder Room 65.9 in
Front Hip Room 60.5 in
Second Head Room 39.6 in
Second Leg Room 33.4 in
Second Shoulder Room 65.7 in
Second Hip Room 65.4 in
Wheelbase 145 in
Length, Overall w/o rear bumper N/A in
Length, Overall w/rear bumper N/A in
Length, Overall 231.8 in
Width, Max w/o mirrors 79.2 in
Height, Overall 75.2 in
Overhang, Front N/A in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor 33.8 in
Ground Clearance, Front 8.6 in
Ground Clearance, Rear 8.6 in
Cargo Box Length @ Floor 78 in
Cargo Box Width @ Top, Rear 65.2 in
Cargo Box Width @ Floor 65.2 in
Cargo Box Width @ Wheelhousings 50 in
Cargo Box (Area) Height 22.4 in
Tailgate Width 60.3 in
Cargo Volume 65.5 ft³
Ext'd Cab Cargo Volume N/A ft³

4 Speakers Standard
Radio w/Clock Standard
Fixed Antenna Standard
Radio: AM/FM Stereo/Single-CD Player w/Clock -inc: auxiliary audio input jack, speed-compensated volume control and customer information display Optional

Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent Optional
Black Grille w/Body-Color Surround Optional
Regular Box Style Standard
Reverse Opening Rear Doors Standard
Fixed Rear Window Standard
Body-Colored Rear Step Bumper Optional
Wheels: 17" Machined-Aluminum w/Painted Accents (STD) Optional
Galvanized Steel/Aluminum Panels Standard
Aero-Composite Halogen Headlamps Standard
Steel Spare Wheel Standard
Manual Tailgate/Rear Door Lock Optional
Black Door Handles Standard
Tailgate Rear Cargo Access Standard
Black Side Windows Trim Standard
Black Power Side Mirrors w/Convex Spotter and Manual Folding Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Light Tinted Glass Standard
Tires: P235/75R17 BSW A/T (5) (STD) Standard
Perimeter/Approach Lights Optional
Variable Intermittent Wipers Standard
Cargo Lamp w/High Mount Stop Light Standard

Rear Cupholder Standard
Full Cloth Headliner Standard
Securilock Anti-Theft Ignition (pats) Immobilizer Standard
Pickup Cargo Box Lights Standard
Urethane Gear Shifter Material Standard
Outside Temp Gauge Optional
Front Cupholder Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 1st Row Underseat Storage Optional
Analog Appearance Standard
Passenger Visor Vanity Mirror Standard
60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat Standard
Manual Air Conditioning Standard
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints Optional
Day-Night Rearview Mirror Standard
Manual Tilt Steering Column Standard
Cloth 40/20/40 Front Seat -inc: manual driver lumbar Optional
Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer Standard
Power Door Locks w/Autolock Feature Optional
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Optional
3 12V DC Power Outlets Standard
Front Center Armrest Optional
Full Vinyl/Rubber Floor Covering Standard
Power Rear Windows Optional
Front Cigar Lighter(s) Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Optional
HVAC -inc: Underseat Ducts Standard
Cruise Control w/Steering Wheel Controls Optional
Fade-To-Off Interior Lighting Standard
Perimeter Alarm Optional
Interior Trim -inc: Cabback Insulator Standard

Trailer Wiring Harness Standard
Front Anti-Roll Bar Standard
1600# Maximum Payload Standard
Gas-Pressurized Shock Absorbers Standard
Transmission: Electronic 6-Speed Automatic -inc: tow/haul mode (STD) Standard
Single Stainless Steel Exhaust Standard
Transmission w/Oil Cooler Standard
155 Amp Alternator Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs and Hill Hold Control Standard
Towing Equipment -inc: Trailer Sway Control Standard
78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection Standard
Engine: 3.7L V6 FFV (STD) Standard
Rear-Wheel Drive Standard
26 Gal. Fuel Tank Standard
Solid Axle Rear Suspension w/Leaf Springs Standard
GVWR: 6,700 lbs Payload Package Standard
Double Wishbone Front Suspension w/Coil Springs Standard
3.73 Axle Ratio (STD) Standard
Electric Power-Assist Speed-Sensing Steering Standard

Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Dual Stage Driver And Passenger Front Airbags Standard
Low Tire Pressure Warning Standard
Side Impact Beams Standard
Airbag Occupancy Sensor Standard
Safety Canopy System Curtain 1st And 2nd Row Airbags Standard
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Optional
AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
ABS And Driveline Traction Control Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
