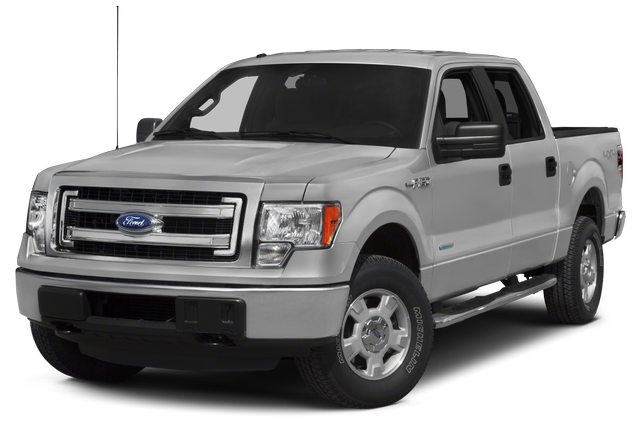

2014 Ford F-150 FX4 specs & colors

Starting MSRP
Current listing price

Showing the 2014 Ford F-150 4WD SuperCrew 145" FX4

Shop Now

Key specs

Color options



Charcoal black & grabber blue accents

Red / Black



Starting MSRP

  • manual telescoping/manual folding
  • 7-pin wiring harness
  • class IV trailer hitch receiver and upgraded rear bumper

Max Trailer Tow Pkg - Manual/Power Mirror


Starting MSRP


Starting MSRP

  • Trailer Brake Controller
  • Rear View Camera
  • FX Plus Package

Equipment Group 401A Mid

See all packages


Starting MSRP

  • unique fender and tailgate badging
  • unique finish on I/P
  • center-stack bezel

FX Appearance Package


Starting MSRP

  • Trailer Brake Controller
  • Radio: Sony Single-CD w/HD
  • FX Luxury Package

Equipment Group 402A Luxury


Rear Wheel Size 18 X 7.5 in
Rear Wheel Material Aluminum
Front Wheel Size 18 X 7.5 in
Front Wheel Material Aluminum
Spare Wheel Size Full-Size in
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) 155

Engine Type Regular Unleaded V-8
Displacement 5.0 L/302
Engine Oil Cooler None
SAE Net Torque @ RPM 380 @ 4250
SAE Net Horsepower @ RPM 360 @ 5500

Estimated Battery Range N/A mi
EPA Fuel Economy Est - City 14 MPG
Cruising Range - City 504.00 mi
Cruising Range - Hwy 684.00 mi
EPA Fuel Economy Est - Hwy 19 MPG
Fuel Economy Est-Combined 16 MPG

Fifth Gear Ratio (:1) 0.86
Trans Type 6
Transfer Case Gear Ratio (:1), Low N/A
Sixth Gear Ratio (:1) 0.69
Trans Power Take Off N/A
Reverse Ratio (:1) 3.40
Second Gear Ratio (:1) 2.34
Final Drive Axle Ratio (:1) N/A
Third Gear Ratio (:1) 1.52
Transfer Case Power Take Off No
Drivetrain Four Wheel Drive
Trans Description Cont. Again N/A
Transfer Case Model Electronic
Fourth Gear Ratio (:1) 1.14
Transfer Case Gear Ratio (:1), High N/A
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.17

Suspension Type - Rear Leaf
Suspension Type - Front Double Wishbone
Axle Type - Rear Rigid Axle
Axle Type - Front Independent

Frame Type N/A

Brake Type 4-Wheel Disc
Rear Brake Rotor Diam x Thickness 13.7 in
Brake ABS System (Second Line) 4-Wheel
Brake ABS System 4-Wheel
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.8 in
Drum - Rear (Yes or ) N/A
Disc - Front (Yes or ) Yes

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 36 gal

Steering Type Rack-Pinion
Turning Diameter - Curb to Curb 47 ft
Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P275/65SR18
Spare Tire Size Full-Size
Rear Tire Size P275/65SR18

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Maximum Trailering Capacity 7700 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1925 lbs
Wt Distributing Hitch - Max Tongue Wt. 770 lbs
Wt Distributing Hitch - Max Trailer Wt. 7700 lbs
Fifth Wheel Hitch - Max Trailer Wt. 7700 lbs

Option Weight - Rear 0.00 lbs
Curb Weight - Front 3214 lbs
Gross Axle Weight Rating 7750.00 lbs
As Spec'd Payload 1764.00 lbs
Maximum Payload Capacity 1764.00 lbs
Gross Vehicle Weight Rating 7350.00 lbs
As Spec'd Curb Weight 5586.00 lbs
Base Curb Weight 5586 lbs
Option Weight - Front 0.00 lbs
Curb Weight - Rear 2372 lbs
Total Option Weight 0.00 lbs
Curb Weight 5586.00 lbs
Gross Combined Wt Rating 13500 lbs

Front Head Room 41 in
Cargo Box (Area) Height 22.4 in
Second Head Room 40.3 in
Second Shoulder Room 65.5 in
Passenger Capacity 5
Tailgate Width 60.3 in
Length, Overall w/rear bumper N/A in
Cargo Box Length @ Floor 66 in
Front Hip Room 60.5 in
Second Leg Room 43.5 in
Second Hip Room 64.6 in
Front Shoulder Room 65.9 in
Cargo Volume 55.4 ft³
Overhang, Front N/A in
Width, Max w/o mirrors 79.2 in
Cargo Box Width @ Floor 65.2 in
Length, Overall 231.8 in
Cargo Box Width @ Top, Rear 65.2 in
Height, Overall 75.9 in
Front Leg Room 41.4 in
Ground to Top of Load Floor 33.6 in
Ext'd Cab Cargo Volume N/A ft³
Length, Overall w/o rear bumper N/A in
Wheelbase 145 in
Cab to End of Frame N/A in
Cargo Box Width @ Wheelhousings 50 in
Ground Clearance, Rear 9.1 in
Ground Clearance, Front 9.1 in
Overhang, Rear w/o bumper N/A in

Fixed Antenna Standard
4 Speakers Standard
SYNC MyFord -inc: 4.2" center-stack audio and climate control screen Optional
Radio: AM/FM Stereo/Single-CD Player w/Clock -inc: auxiliary audio input jack, speed-compensated volume control and customer information display Optional
Radio w/Clock Standard
SiriusXM Satellite Radio -inc: Available in the 48 contiguous United States and D.C Optional
SYNC Voice Activated Communication & Entertainment -inc: 911 assist and vehicle health reports, SYNC Applink provides control of certain smartphone applications using SYNC voice commands, Connect to apps like Pandora and more w/your iPhone, Blackberry or Android platform mobile phone Optional

Body-Colored Rear Step Bumper Optional
Black Side Windows Trim Standard
Body-Colored Power Side Mirrors w/Convex Spotter and Manual Folding Optional
Galvanized Steel/Aluminum Panels Standard
Front Fog Lamps Optional
Perimeter/Approach Lights Standard
Gray Wheel Well Trim Optional
Deep Tinted Glass Optional
Manual Tailgate/Rear Door Lock Standard
Regular Box Style Standard
Tailgate Rear Cargo Access Standard
Tires: P275/65R18 OWL A/T (4) (STD) Optional
Wheels: 18" Machined-Aluminum (STD) Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Black Grille w/Body-Color Surround Optional
Body-Colored Door Handles Optional
Variable Intermittent Wipers Standard
Side Steps Optional
Fixed Rear Window w/Defroster Optional
Cargo Lamp w/High Mount Stop Light Standard
Steel Spare Wheel Standard
Auto On/Off Aero-Composite Halogen Headlamps w/Delay-Off Optional
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent and 2 Tow Hooks Optional

Keypad Optional
3 12V DC Power Outlets and 1 120V AC Power Outlet Optional
Power Rear Windows Standard
Full Cloth Headliner Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert, Cabback Insulator, Metal-Look Door Panel Insert and Chrome Interior Accents Optional
Cruise Control w/Steering Wheel Controls Optional
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints Optional
Full Floor Console w/Locking Storage, Full Overhead Console w/Storage, 3 12V DC Power Outlets and 1 120V AC Power Outlet Optional
Manual Air Conditioning Standard
Driver And Passenger Visor Vanity Mirrors Optional
Power Door Locks w/Autolock Feature Standard
Front Cigar Lighter(s) Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Standard
Rear Cupholder Standard
Front And Rear Map Lights Optional
4.2" LCD Productivity Screen in Instrument Cluster Optional
Front Center Armrest Optional
Perimeter Alarm Standard
3 12V DC Power Outlets Standard
Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins Standard
Cloth Bucket Seats -inc: manual driver and passenger lumbar, 6-way power adjuster (driver's side only), flow-through console and floor shifter Optional
6-Way Power Driver Seat -inc: Power Height Adjustment, Fore/Aft Movement, Cushion Tilt, Manual Recline and Manual Lumbar Support Optional
Leather/Metal-Look Gear Shifter Material Optional
Pickup Cargo Box Lights Standard
Front Seats w/Manual Driver Lumbar Optional
Securilock Anti-Theft Ignition (pats) Immobilizer Standard
Leather Steering Wheel Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Fade-To-Off Interior Lighting Standard
2 Seatback Storage Pockets Optional
Manual Tilt/Telescoping Steering Column Optional
60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat Standard
Full Carpet Floor Covering -inc: Vinyl/Rubber Front And Rear Floor Mats Optional
Analog Appearance Standard
4-Way Passenger Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support Optional
Outside Temp Gauge Optional
HVAC -inc: Underseat Ducts and Console Ducts Optional
Front Cupholder Standard
Compass Optional
Day-Night Auto-Dimming Rearview Mirror Optional
Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer Standard

HD Shock Absorbers Optional
3 Skid Plates Optional
Transmission: Electronic 6-Speed Automatic -inc: tow/haul mode (STD) Optional
155 Amp Alternator Standard
GVWR: 7,350 lbs Payload Package Standard
Electronic Locking w/3.55 Axle Ratio (STD) Optional
Trailer Wiring Harness Standard
Electric Power-Assist Speed-Sensing Steering Standard
Class IV Towing Equipment -inc: Hitch and Trailer Sway Control Optional
Single Stainless Steel Exhaust Standard
36 Gal. Fuel Tank Standard
Auto Locking Hubs Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Hill Descent Control and Hill Hold Control Optional
Double Wishbone Front Suspension w/Coil Springs Standard
78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection Standard
Electronic Transfer Case Standard
Solid Axle Rear Suspension w/Leaf Springs Standard
Transmission w/SelectShift Sequential Shift Control and HD Oil Cooler Optional
Front Anti-Roll Bar Standard
1700# Maximum Payload Standard
Engine: 5.0L V8 FFV (STD) Standard
Off-Road Suspension Optional
Part-Time Four-Wheel Drive Standard

AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Safety Canopy System Curtain 1st And 2nd Row Airbags Standard
Dual Stage Driver And Passenger Front Airbags Standard
Airbag Occupancy Sensor Standard
Rear Child Safety Locks Standard
ABS And Driveline Traction Control Standard
Side Impact Beams Standard
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Optional
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Low Tire Pressure Warning Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
