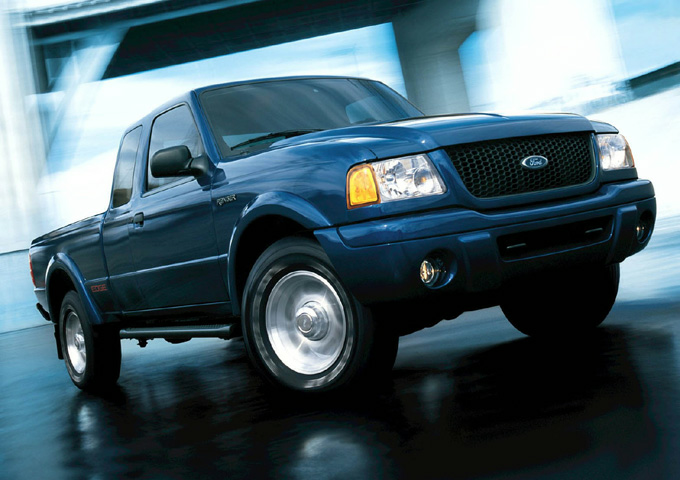

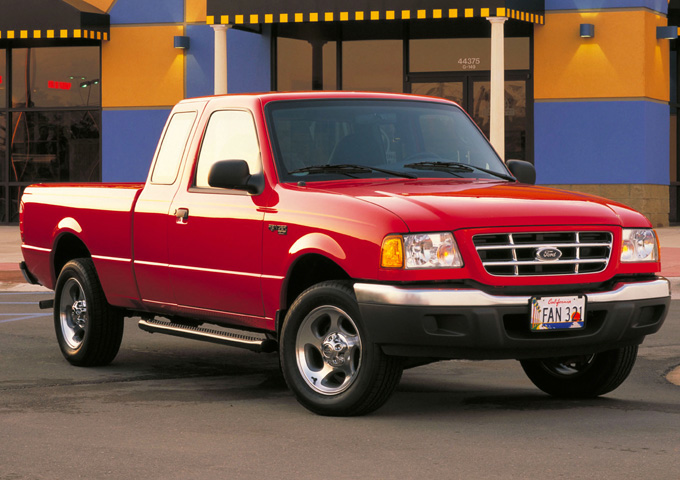

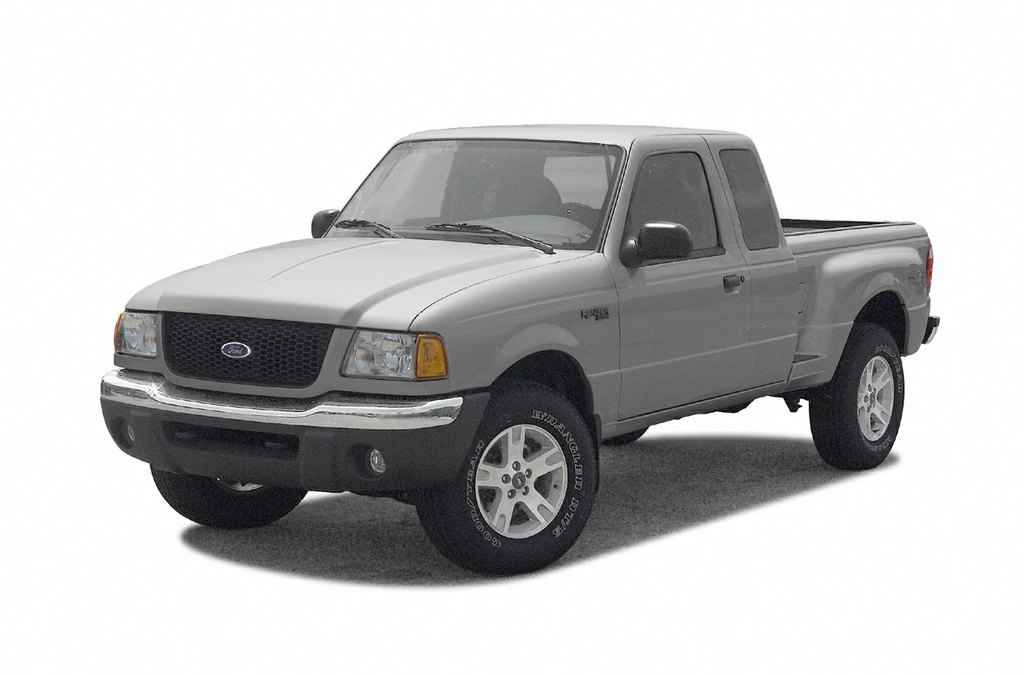

New 2003 Ford Ranger
Choose trim
Compare trims
Reg Cab 2.3L XL Reg Cab 3.0L XL Reg Cab LWB 3.0L XL Reg Cab 2.3L XLT Reg Cab 3.0L Edge Reg Cab 3.0L XLT 2dr Supercab 3.0L XL Reg Cab LWB 3.0L XLT 2dr Supercab 3.0L XLT 2dr Supercab 3.0L Edge 2dr Supercab 4.0L Edge 2dr Supercab 3.0L XLT Appearance 2dr Supercab 3.0L Tremor 2dr Supercab 4.0L XLT Value 4WD Reg Cab 3.0L Edge Plus 4WD 4dr Supercab 3.0L XLT Appearance 4dr Supercab 3.0L Edge Plus 2dr Supercab 4.0L XLT 4WD 4dr Supercab 4.0L XLT Appearance 4dr Supercab 3.0L Tremor Plus 4dr Supercab 4.0L Edge 4WD 4dr Supercab 4.0L XLT 4WD 4dr Supercb 4.0L XLT FX4 Lvl II 4WD 4dr Supercab 4.0L Edge Plus 4WD 4dr Supercb 4.0L XLT FX4 Off-Rd 4WD Shop options
Shop Cars.com
Browse cars & save your favorites
Dealers near you
Find & contact a dealership near you
Change location See all listings

Your message was sent. You'll receive a response shortly.

Key specifications

Highlights
72 in
Bed Length
Gas I4
Engine Type
23 City / 26 Hwy
MPG
143 hp
Horsepower
Engine
Gas I4
Engine Type
2.3L/138
Displacement
143 @ 5250
SAE Net Horsepower @ RPM
154 @ 3750
SAE Net Torque @ RPM
Suspension
Coil Spring
Suspension Type - Front
2-Stage Multi-Leaf
Suspension Type - Rear
Independent SLA
Axle Type - Front
Ford Semi-Floating
Axle Type - Rear
Weight & Capacity
N/A
Base Curb Weight
1,730 lbs
Curb Weight - Front
1,265 lbs
Curb Weight - Rear
0 lbs
Option Weight - Front
Electrical
540
Cold Cranking Amps @ 0° F (Primary)
95
Maximum Alternator Capacity (amps)
Brakes
Power
Brake Type
4-Wheel
Brake ABS System
Not Available
Brake ABS System (Second Line)
Yes
Disc - Front (Yes or )

Engine

Gas I4 Engine Type
2.3L/138 Displacement
143 @ 5250 SAE Net Horsepower @ RPM
154 @ 3750 SAE Net Torque @ RPM

Suspension

Coil Spring Suspension Type - Front
2-Stage Multi-Leaf Suspension Type - Rear
Independent SLA Axle Type - Front
Ford Semi-Floating Axle Type - Rear

Weight & Capacity

N/A Base Curb Weight
1,730 lbs Curb Weight - Front
1,265 lbs Curb Weight - Rear
0 lbs Option Weight - Front
0 lbs Option Weight - Rear
2,995 lbs As Spec'd Curb Weight
1,345 lbs As Spec'd Payload
1,345 lbs Maximum Payload Capacity
4,800 lbs Gross Combined Wt Rating
1,640 lbs Dead Weight Hitch - Max Trailer Wt.
164 lbs Dead Weight Hitch - Max Tongue Wt.
Not Available lbs Wt Distributing Hitch - Max Trailer Wt.
Not Available lbs Wt Distributing Hitch - Max Tongue Wt.
Not Available lbs Fifth Wheel Hitch - Max Trailer Wt.
Not Available lbs Fifth Wheel Hitch - Max Tongue Wt.
N/A Maximum Trailering Capacity
17 gal Fuel Tank Capacity, Approx
Not Available gal Aux Fuel Tank Capacity, Approx
4,850 lbs Gross Axle Weight Rating
2,995 lbs Curb Weight
0 lbs Total Option Weight
4,340 lbs Gross Vehicle Weight Rating

Electrical

540 Cold Cranking Amps @ 0° F (Primary)
95 Maximum Alternator Capacity (amps)

Brakes

Power Brake Type
4-Wheel Brake ABS System
Not Available Brake ABS System (Second Line)
Yes Disc - Front (Yes or )
Not Available Disc - Rear (Yes or )
11.28 x 1.02 in Front Brake Rotor Diam x Thickness
Not Available in Rear Brake Rotor Diam x Thickness
Yes Drum - Rear (Yes or )

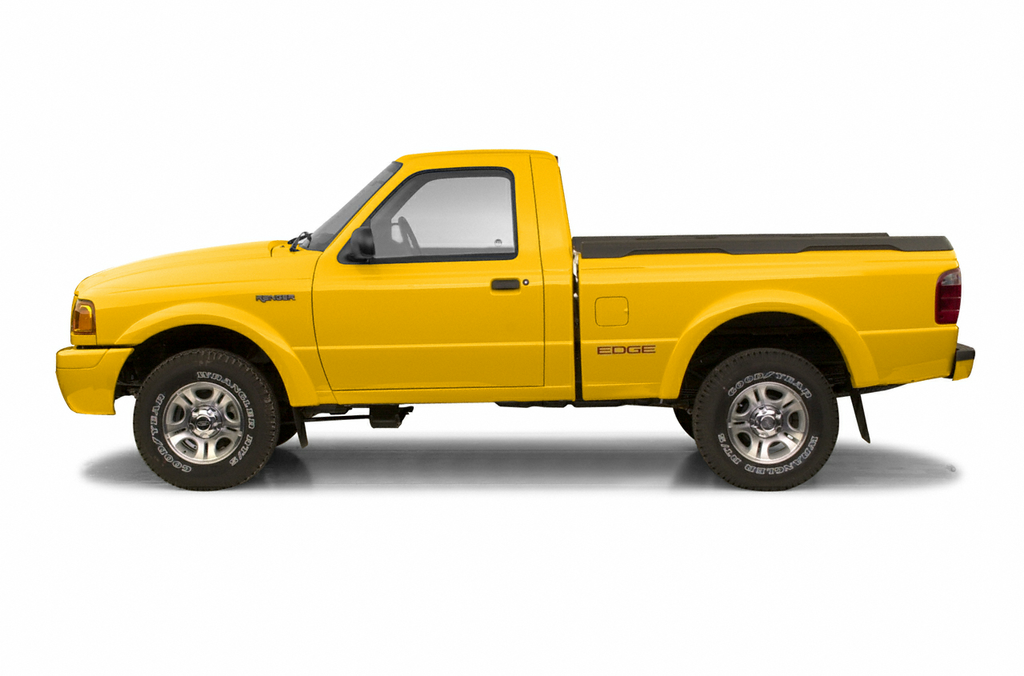

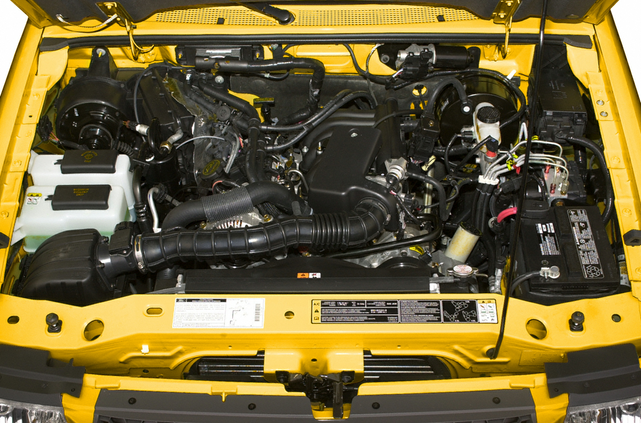

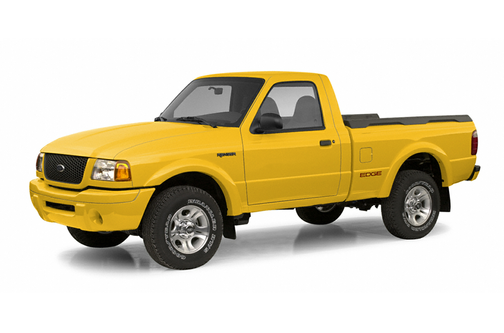

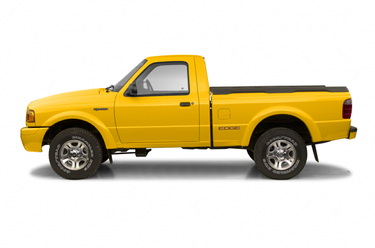

Photo & video gallery

2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger 2003 Ford Ranger

The good & the bad

This vehicle doesn't have any good or bad insights yet.

Use our comparison tool to look at this model side-by-side with other vehicles or view the full specifications list .

Start your comparison

Expert 2003 Ford Ranger review

our expert's take
Our expert's take
By
Full article
our expert's take

Ford’s financial woes have delayed progress on an all-new Ranger pickup, despite the upcoming threat of all-new Chevrolet and GMC small trucks. So what can the company do to continue to keep Ranger sales strong?

Smart marketing. Such as the test truck, the Ranger Tremor Plus. It’s essentially the same old Ranger, but add P235/70R-16 tires and alloy wheels, white-faced gauges and a 485-watt Pioneer Audiophile stereo system that can leave you bleeding from the brain, and you have something Ford dealers can sell as new.

In fact, Ford seems to think these special sound systems have a life beyond the Ranger. You can get a “Mach 1000” sound system in the Mustang, and you can get an Audiophile package on the Focus.

The Tremor comes only with a 154-horsepower, 3.0-liter V-6 engine, the medium-sized powerplant for Rangers, sized between the 143-horsepower, 2.3-liter four-cylinder, and the 207-horsepower, 4.0-liter V-6, and only with the five-speed automatic transmission.

The transmission is a very good one and helps maximize the engine’s available power. The Ranger’s four-cylinder is reasonably strong for its size, but the 3.0-liter V-6 is the standard engine for the extended cab model. The 4.0-liter is certainly the most powerful of the trio, but the 3.0-liter is fine unless you do much towing, or if you want four-wheel-drive. The Tremor comes only in rear-drive.

The Tremor also deletes the little flip-down rear jump seats to make room for some of the sound equipment. The Ranger is not available with four full doors – in the United States, anyway – and the extended cab uses a half-door design that opens front to rear. If you want four full doors and a back seat, Ford salespeople will point you to the Explorer Sport Trac.

Inside, the Tremor is reasonably roomy and surprisingly comfortable. Though the basic architecture of the Ranger hasn’t changed for years, engineers have done a good job in refining the suspension to offer nimble handling and a much smoother ride than Rangers had a few years ago.

The Ranger’s base model is the XL, and it’s for fleet sales. Upgrade to the Edge or the XLT and the truck gets nicer, and by the time you get to the Tremor, you have a pretty complete package that includes air conditioning, cruise control, a tilt steering wheel and power accessories.

As you upgrade, the prices rise, of course. The base Ranger lists for less than $14,000, but our Tremor started at $21,210, and with a few options and transportation, the bottom line was $21,945. Savvy marketing will continue to move Rangers, but when GM’s new small trucks arrive for 2004, it might take more than that.

2003 Ford Ranger review: Our expert's take
By

Ford’s financial woes have delayed progress on an all-new Ranger pickup, despite the upcoming threat of all-new Chevrolet and GMC small trucks. So what can the company do to continue to keep Ranger sales strong?

Smart marketing. Such as the test truck, the Ranger Tremor Plus. It’s essentially the same old Ranger, but add P235/70R-16 tires and alloy wheels, white-faced gauges and a 485-watt Pioneer Audiophile stereo system that can leave you bleeding from the brain, and you have something Ford dealers can sell as new.

In fact, Ford seems to think these special sound systems have a life beyond the Ranger. You can get a “Mach 1000” sound system in the Mustang, and you can get an Audiophile package on the Focus.

The Tremor comes only with a 154-horsepower, 3.0-liter V-6 engine, the medium-sized powerplant for Rangers, sized between the 143-horsepower, 2.3-liter four-cylinder, and the 207-horsepower, 4.0-liter V-6, and only with the five-speed automatic transmission.

The transmission is a very good one and helps maximize the engine’s available power. The Ranger’s four-cylinder is reasonably strong for its size, but the 3.0-liter V-6 is the standard engine for the extended cab model. The 4.0-liter is certainly the most powerful of the trio, but the 3.0-liter is fine unless you do much towing, or if you want four-wheel-drive. The Tremor comes only in rear-drive.

The Tremor also deletes the little flip-down rear jump seats to make room for some of the sound equipment. The Ranger is not available with four full doors – in the United States, anyway – and the extended cab uses a half-door design that opens front to rear. If you want four full doors and a back seat, Ford salespeople will point you to the Explorer Sport Trac.

Inside, the Tremor is reasonably roomy and surprisingly comfortable. Though the basic architecture of the Ranger hasn’t changed for years, engineers have done a good job in refining the suspension to offer nimble handling and a much smoother ride than Rangers had a few years ago.

The Ranger’s base model is the XL, and it’s for fleet sales. Upgrade to the Edge or the XLT and the truck gets nicer, and by the time you get to the Tremor, you have a pretty complete package that includes air conditioning, cruise control, a tilt steering wheel and power accessories.

As you upgrade, the prices rise, of course. The base Ranger lists for less than $14,000, but our Tremor started at $21,210, and with a few options and transportation, the bottom line was $21,945. Savvy marketing will continue to move Rangers, but when GM’s new small trucks arrive for 2004, it might take more than that.

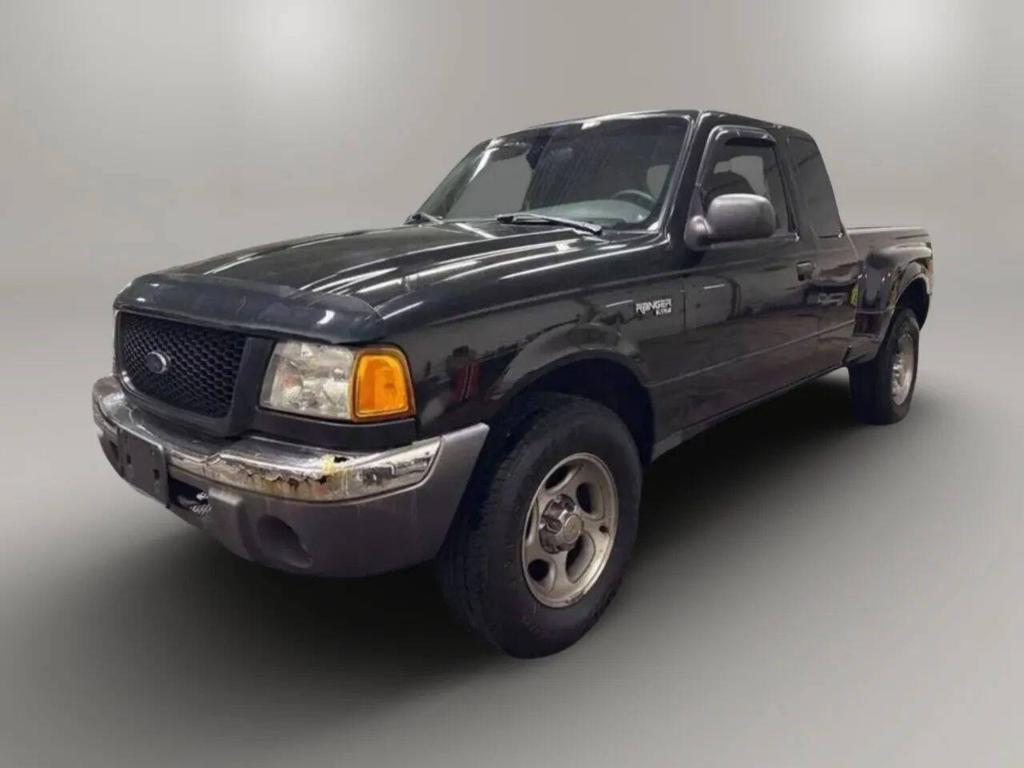

Available cars near you

Safety review

Based on the 2003 Ford Ranger base trim
NHTSA crash test and rollover ratings, scored out of 5.
Nhtsa rollover rating
3/5
Side driver
5/5

Factory warranties

New car program benefits

Basic
3 years / 36,000 miles
Corrosion
5 years
Powertrain
3 years / 36,000 miles
Roadside Assistance
3 years / 36,000 miles

Certified Pre-Owned program benefits

Age / mileage
Fords and many non-Ford vehicles up to 10 years old with less than 150,000 miles
Basic
90-Day / 4,000-Mile (whichever comes first) Comprehensive Limited Warranty
Dealer certification
139-point inspection
