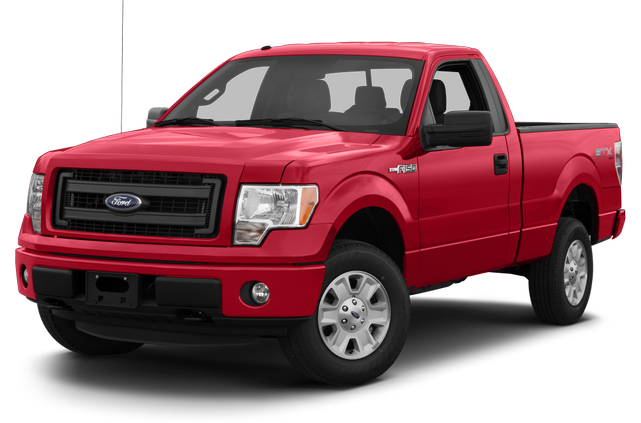

2013 Ford F-150 XLT specs & colors

Regular Cab Pickup

Change trim

MSRP
Change trim
$29,760
Starting MSRP
Current listing price

Showing the 2013 Ford F-150 2WD Reg Cab 145" XLT

Shop Now

Key specs

Color options

Interior

Boxster Red

Maldives Blue

Packages

$0

Starting MSRP

  • std equipment

$0

Starting MSRP

  • driver & passenger side secured & convenient storage
  • 5.5' pickup box

$1,310

Starting MSRP

  • pwr heated exterior mirrors w/integrated turn signals & driver side auto-dimming function
  • auto-dimming rearview mirror
  • pwr adjustable pedals

Mid equipment group

$1,310

Starting MSRP

  • pwr heated exterior mirrors w/integrated turn signals & driver side auto-dimming function
  • auto-dimming rearview mirror
  • pwr adjustable pedals
  • SiriusXM satellite radio
  • MyFord w/5-way steering wheel control switch
  • 4.2" LCD audio/climate control screen in center stack
  • 4.2" LCD productivity screen message center w/trip computer
  • leather-wrapped steering wheel
  • trailer tow pkg w/class IV trailer hitch receiver
  • 7-pin wiring harness
  • upgraded radiator
  • aux trans oil cooler
  • SelectShift auto trans

Specifications

Front Wheel Size 17 x 7.5 in
Front Wheel Material Aluminum
Rear Wheel Size 17 x 7.5 in
Spare Wheel Size 17 x 7.5 in
Spare Wheel Material Steel
Rear Wheel Material Aluminum

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) 155

Engine Type Gas/Ethanol V6
Engine Oil Cooler N/A
Displacement 3.7L/227
SAE Net Torque @ RPM 278 @ 4000
SAE Net Horsepower @ RPM 302 @ 6500

Cruising Range - City 442.00 mi
Fuel Economy Est-Combined 19 MPG
EPA Fuel Economy Est - City 17 MPG
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - Hwy 598.00 mi

Transfer Case Gear Ratio (:1), Low N/A
Reverse Ratio (:1) 3.40
Transfer Case Power Take Off N/A
Trans Power Take Off N/A
Fifth Gear Ratio (:1) 0.86
First Gear Ratio (:1) 4.17
Drivetrain Rear Wheel Drive
Second Gear Ratio (:1) 2.34
Trans Description Cont. Again N/A
Trans Description Cont. Automatic
Final Drive Axle Ratio (:1) N/A
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Model N/A
Trans Type 6
Third Gear Ratio (:1) 1.52
Sixth Gear Ratio (:1) 0.69
Fourth Gear Ratio (:1) 1.14

Axle Type - Front Long-Spindle
Suspension Type - Rear Live Axle
Suspension Type - Front Double-Wishbone
Axle Type - Rear Semi-Float Beam

Frame Type Fully Boxed

Front Brake Rotor Diam x Thickness 13.78 x 0.55 in
Rear Brake Rotor Diam x Thickness 13.7 x 0.413 in
Brake ABS System 4-Wheel
Drum - Rear (Yes or ) N/A
Brake ABS System (Second Line) N/A
Disc - Rear (Yes or ) Yes
Disc - Front (Yes or ) Yes
Brake Type Pwr

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 26.0 gal

Turning Diameter - Curb to Curb 47.0 ft
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall N/A ft

Spare Tire Size P235/75R17
Rear Tire Size P235/75R17
Front Tire Size P235/75R17

Wt Distributing Hitch - Max Tongue Wt. 840 lbs
Maximum Trailering Capacity N/A lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Wt Distributing Hitch - Max Trailer Wt. 5600 lbs
Fifth Wheel Hitch - Max Trailer Wt. 5600 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1400 lbs

Gross Vehicle Weight Rating 6750.00 lbs
As Spec'd Payload 1982.00 lbs
Curb Weight - Front 2782 lbs
Option Weight - Rear 0.00 lbs
Maximum Payload Capacity 1986.00 lbs
Gross Axle Weight Rating 7250.00 lbs
Option Weight - Front 0.00 lbs
Curb Weight 4764.00 lbs
Curb Weight - Rear 1982 lbs
Base Curb Weight N/A lbs
As Spec'd Curb Weight 4768.00 lbs
Total Option Weight 0.00 lbs
Gross Combined Wt Rating N/A lbs

Length, Overall w/o rear bumper 231.9 in
Wheelbase 144.5 in
Front Head Room 41.0 in
Cargo Box (Area) Height 22.4 in
Length, Overall N/A in
Front Leg Room 41.4 in
Ground Clearance, Rear N/A in
Cargo Box Length @ Floor 97.4 in
Cargo Box Width @ Wheelhousings 50.0 in
Passenger Capacity 3
Length, Overall w/rear bumper N/A in
Ext'd Cab Cargo Volume 17.4 ft³
Front Shoulder Room 66.6 in
Height, Overall 75.0 in
Cargo Box Width @ Floor 60.3 in
Second Head Room N/A in
Ground Clearance, Front N/A in
Second Leg Room N/A in
Overhang, Front 38.3 in
Cargo Volume 81.3 ft³
Overhang, Rear w/o bumper N/A in
Front Hip Room 60.5 in
Width, Max w/o mirrors 79.2 in
Ground to Top of Load Floor 34.7 in
Second Hip Room N/A in
Cab to End of Frame N/A in
Tailgate Width 60.3 in
Cargo Box Width @ Top, Rear 60.3 in
Second Shoulder Room N/A in

AM/FM stereo w/CD player -inc: clock Optional
SYNC voice activated communications & entertainment system -inc: Bluetooth capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, Applink *Additional SYNC services available w/annual subscription fee* Optional

Black front/rear stone cuffs Standard
Black pwr side mirrors Optional
Cargo lamp integrated w/high mount stop light Standard
Full size spare tire Standard
Removable tailgate w/key lock & lift assist Standard
Black door & tailgate handles Standard
Body-color front bumper fascia Optional
Under frame winch-type spare tire carrier w/safety catch & lock Standard
Variable interval wipers Standard
Fixed rear window Standard
Fog lamps Optional
Chrome front/rear step bumper Optional
Autolamp -inc: automatic on/off headlamps Optional
17" machined aluminum wheels w/painted accents Optional
P235/75R17 all-terrain BSW tires (STD) Standard
Chrome grille surround w/chrome "two-bar style" insert Optional
Rear privacy tint glass Optional

Deployable cupholder under center portion of seat Standard
Tilt steering column Standard
Dome light Standard
Fade-to-off interior lighting Optional
Driver side SecuriCode keyless entry keypad Optional
Cruise control Optional
Display center -inc: warning messages & text functions Standard
Outside temp gauge Optional
Front pwr point Standard
Cloth 40/20/40 split bench front seat w/manual driver lumbar Optional
Compass Optional
Manual air conditioning Standard
Pwr door locks w/autolock feature Optional
Driver & passenger door scuff plates Standard
Chrome ring w/obsidian vanes air conditioning registers Optional
Delayed accessory pwr Optional
Customer info display Optional
Driver & passenger covered visor vanity mirrors Optional
Remote keyless entry key Optional
Front passenger side A-pillar grab handle Standard
Illuminated entry Optional
Pwr windows Optional
Gauges -inc: fuel gauge, voltmeter, oil pressure, engine coolant temp, speedometer, tachometer, odometer Standard
Black urethane steering wheel Standard
Perimeter alarm Optional
SecuriLock passive anti-theft system (PATS) Standard
Color-coordinated carpet -inc: carpeted floor mats Optional

6750# GVWR, 1930# maximum payload Standard
Leaf spring rear suspension w/2-stage variable rear springs Standard
6-speed electronic automatic transmission w/OD & tow/haul mode (STD) Standard
Pwr front/rear disc brakes Standard
2-ton jack Standard
3.55 axle ratio (REQ: 99M or 99F Engine) Standard
78-amp/hr (750CCA) maintenance-free battery Standard
Trailer sway control Standard
(4) pickup box tie-down hooks Standard
8.0' pickup box Standard
Easy Fuel capless fuel filler system Standard
Pwr rack & pinion steering Standard
Long-spindle double wishbone front suspension w/coil-over-shock IFS Standard
3.7L V6 FFV engine (STD) Standard
Rear wheel drive Standard
Gas shock absorbers Standard

AdvanceTrac w/Roll Stability Control (RSC) Standard
Dual stage driver & passenger front airbags Standard
Dual stage driver & passenger seat-mounted side airbags Standard
Safety Canopy front side curtain airbags Standard
Dual note horn Standard
MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute Optional
SOS post crash alert system Standard
Anti-lock braking system (ABS) Standard
Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors Standard
Auto lock safety belt feature for child seats Standard
Hill start assist Standard
Tire pressure monitoring system Standard
