2013 Ford F-150 XL w/HD Payload Pkg specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$36,035
Starting MSRP
Current listing price

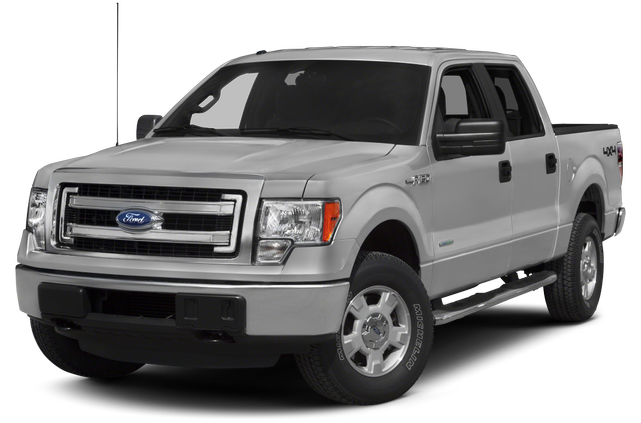

Showing the 2013 Ford F-150 4WD SuperCrew 157" XL w/HD Payload Pkg

Shop Now

Key specs

Color options

Interior

Steel Gray

Black

Crema / Black

Packages

$1,500

Starting MSRP

  • 8200# GVWR
  • LT245/75R17E all-terrain BSW tires
  • 17" high capacity 7-lug steel wheels

HD payload pkg

$1,500

Starting MSRP

  • 8200# GVWR
  • LT245/75R17E all-terrain BSW tires
  • 17" high capacity 7-lug steel wheels
  • HD shock absorbers
  • upgraded springs/radiator/aux trans oil cooler
  • 9.75" gear set
  • 3.73 limited-slip rear axle

$0

Starting MSRP

  • std equipment

$1,160

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • speed compensated volume control

Mid equipment group

$1,160

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • speed compensated volume control
  • cruise control
  • MyKey w/top speed limiter
  • audio volume limiter
  • early low fuel warning
  • programmable sound chimes
  • Beltminder w/audio mute
  • chrome front/rear bumpers
  • cloth 40/20/40 front seats
  • trailer tow pkg w/class IV trailer hitch receiver
  • 7-pin wiring harness
  • upgraded radiator
  • aux trans oil cooler
  • SelectShift auto trans
  • SYNC voice activated communications & entertainment system w/Bluetooth capability
  • steering wheel audio controls
  • USB port
  • audio input jack
  • 911 assist
  • vehicle health report
  • Applink
See all packages

$450

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • aux audio input jack

XL plus pkg

$450

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • aux audio input jack
  • speed compensated volume control
  • customer information display
  • cruise control
  • MyKey system w/top speed limiter
  • audio volume limiter
  • early low fuel warning
  • programmable sound chimes
  • Beltminder w/audio mute

$940

Starting MSRP

  • upgraded rear bumper
  • class IV trailer hitch receiver
  • 7-pin wiring harness

Max trailer tow pkg w/manual/pwr mirrors

$940

Starting MSRP

  • upgraded rear bumper
  • class IV trailer hitch receiver
  • 7-pin wiring harness
  • trailer brake controller
  • SelectShift auto trans
  • manual telescoping manual-folding heated trailer tow mirrors w/pwr glass
  • integrated turn signals & puddle lamps

Specifications

Spare Wheel Size 17 x 7.5 in
Rear Wheel Size 17 x 7.5 in
Spare Wheel Material Steel
Front Wheel Size 17 x 7.5 in
Front Wheel Material Steel
Rear Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) 155

SAE Net Horsepower @ RPM 360 @ 5500
Displacement 5.0L/302
Engine Type Gas/Ethanol V8
Engine Oil Cooler N/A
SAE Net Torque @ RPM 380 @ 4250

Cruising Range - City 504.00 mi
Fuel Economy Est-Combined 16 MPG
EPA Fuel Economy Est - Hwy 19 MPG
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City 14 MPG
Cruising Range - Hwy 684.00 mi

Transfer Case Gear Ratio (:1), High 1.00
Transfer Case Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Reverse Ratio (:1) 3.40
Second Gear Ratio (:1) 2.34
Trans Description Cont. Again N/A
Trans Type 6
Trans Description Cont. Automatic
Trans Power Take Off N/A
Fifth Gear Ratio (:1) 0.86
Transfer Case Model N/A
Drivetrain Four-Wheel Drive
First Gear Ratio (:1) 4.17
Fourth Gear Ratio (:1) 1.14
Sixth Gear Ratio (:1) 0.69
Transfer Case Gear Ratio (:1), Low 2.64
Third Gear Ratio (:1) 1.52

Suspension Type - Front Double-Wishbone
Suspension Type - Rear Live Axle
Axle Type - Rear Semi-Float Beam
Axle Type - Front Long-Spindle

Frame Type Fully Boxed

Rear Brake Rotor Diam x Thickness 13.7 x 0.413 in
Disc - Rear (Yes or ) Yes
Drum - Rear (Yes or ) N/A
Brake Type Pwr
Front Brake Rotor Diam x Thickness 13.78 x 0.55 in
Brake ABS System (Second Line) N/A
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes

Fuel Tank Capacity, Approx 36.0 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Ratio (:1), Overall N/A
Steering Type Pwr Rack & Pinion
Turning Diameter - Curb to Curb 50.4 ft
Turning Diameter - Wall to Wall N/A ft

Spare Tire Size LT245/75R17
Rear Tire Size LT245/75R17
Front Tire Size LT245/75R17

Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Trailer Wt. 9200 lbs
Maximum Trailering Capacity N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 9200 lbs
Wt Distributing Hitch - Max Tongue Wt. 1380 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Fifth Wheel Hitch - Max Tongue Wt. 2300 lbs

Total Option Weight 0.00 lbs
Option Weight - Front 0.00 lbs
Maximum Payload Capacity 2355.00 lbs
Curb Weight 5845.00 lbs
Gross Axle Weight Rating 8850.00 lbs
Base Curb Weight N/A lbs
As Spec'd Curb Weight 5855.00 lbs
Option Weight - Rear 0.00 lbs
Gross Combined Wt Rating N/A lbs
Gross Vehicle Weight Rating 8200.00 lbs
As Spec'd Payload 2345.00 lbs
Curb Weight - Rear 2499 lbs
Curb Weight - Front 3346 lbs

Cargo Box Width @ Floor 60.3 in
Length, Overall w/rear bumper N/A in
Ground Clearance, Front N/A in
Cargo Volume 65.5 ft³
Second Head Room 40.3 in
Passenger Capacity 6
Second Hip Room 64.6 in
Cargo Box Width @ Top, Rear 60.3 in
Second Shoulder Room 65.5 in
Length, Overall w/o rear bumper 243.9 in
Front Shoulder Room 65.9 in
Cargo Box Width @ Wheelhousings 50.0 in
Width, Max w/o mirrors 79.2 in
Wheelbase 156.5 in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Cargo Box Length @ Floor 78.8 in
Ground Clearance, Rear N/A in
Ground to Top of Load Floor 34.5 in
Length, Overall N/A in
Front Head Room 41.0 in
Tailgate Width 60.3 in
Second Leg Room 43.5 in
Overhang, Front 38.3 in
Height, Overall 76.5 in
Ext'd Cab Cargo Volume 55.4 ft³
Front Hip Room 60.5 in
Front Leg Room 41.4 in
Cargo Box (Area) Height 22.4 in

AM/FM stereo w/clock Standard

Variable interval wipers Standard
Rear solar tint glass Standard
17" 7-lug steel wheels Optional
(4) full-size doors Standard
Removable tailgate w/key lock & lift assist Standard
Black grille surround w/black "two-bar style" insert Standard
Under frame winch-type spare tire carrier w/safety catch & lock Standard
LT245/75R17E all-terrain BSW tires (STD) Optional
Black pwr side mirrors Standard
Black front/rear stone cuffs Standard
Argent front/rear step bumper Standard
Black door & tailgate handles Standard
Black front bumper fascia Standard
Cargo lamp integrated w/high mount stop light Standard
Fixed rear window Standard
Full size spare tire Standard

Rear pwr point Standard
Dome light Standard
Black ring w/black vanes air conditioning registers Standard
Front passenger side A-pillar grab handle Standard
Gauges -inc: fuel gauge, voltmeter, oil pressure, engine coolant temp, speedometer, tachometer, odometer Standard
Perimeter alarm Standard
Vinyl 40/20/40 split bench front seat Standard
Front pwr point Standard
Deployable cupholder under center portion of seat Standard
Display center -inc: warning messages & text functions Standard
Pwr door locks w/autolock feature Standard
Remote keyless entry key Standard
Driver & front passenger door scuff plates Standard
Tilt steering column Standard
Illuminated entry Standard
Sunvisors w/driver side strap, passenger mirror Standard
Pwr 1st & 2nd row windows Standard
SecuriLock passive anti-theft system (PATS) Standard
Black vinyl floor covering Standard
2nd row B-pillar grab handles Standard
Black urethane steering wheel Standard
Manual air conditioning Standard
60/40 flip-up rear split bench seat -inc: elongated seat cushions Standard
Overhead console Standard

6.5' pickup box Standard
3.73 limited-slip rear axle ratio Optional
Trailer sway control Standard
Pwr rack & pinion steering Standard
2-ton jack Standard
Pwr front/rear disc brakes Standard
6-speed electronic automatic transmission w/OD & tow/haul mode (STD) Standard
Front tow hooks Standard
Neutral towing capability Standard
Easy Fuel capless fuel filler system Standard
8200# GVWR, 2330# maximum payload Optional
Upgraded springs & radiator, auxiliary transmission oil cooler Optional
78-amp/hr (750CCA) maintenance-free battery Standard
Long-spindle double wishbone front suspension w/coil-over-shock IFS Standard
Leaf spring rear suspension w/2-stage variable rear springs Standard
9.75" gear set Optional
HD shock absorbers Optional
5.0L V8 FFV engine (STD) (REQ: 535 Trailer Tow Pkg) Optional
(4) pickup box tie-down hooks Standard
4-wheel drive -inc: electronic-shift-on-the fly transfer case (ESOF) Standard

Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors Standard
Safety Canopy front/rear outboard side curtain airbags Standard
Tire pressure monitoring system Standard
Anti-lock braking system (ABS) Standard
Dual stage driver & front passenger seat-mounted side airbags Standard
Auto lock safety belt feature for child seats Standard
Dual note horn Standard
Hill start assist Standard
SOS post crash alert system Standard
AdvanceTrac w/Roll Stability Control (RSC) Standard
Dual stage driver & passenger front airbags Standard
