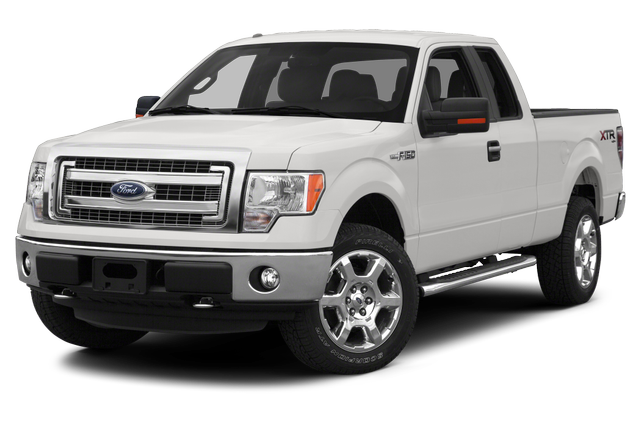

2013 Ford F-150 XL specs & colors

Extended Cab Pickup

Change trim

MSRP
Change trim
$27,895
Starting MSRP
Current listing price

Showing the 2013 Ford F-150 2WD SuperCab 145" XL

Shop Now

Key specs

Color options

Interior

Steel Gray

Black

Crema / Black

Packages

$2,310

Starting MSRP

  • pwr locks w/autolock
  • keyless entry key fob
  • pwr windows

Mid equipment group

$2,310

Starting MSRP

  • pwr locks w/autolock
  • keyless entry key fob
  • pwr windows
  • illuminated entry
  • black pwr mirrors
  • perimeter alarm
  • AM/FM stereo w/CD player
  • clock
  • speed compensated volume control
  • cruise control
  • MyKey w/top speed limiter
  • audio volume limiter
  • early low fuel warning
  • programmable sound chimes
  • Beltminder w/audio mute
  • chrome front/rear bumpers
  • cloth 40/20/40 front seats
  • trailer tow pkg w/class IV trailer hitch receiver
  • 7-pin wiring harness
  • upgraded radiator
  • aux trans oil cooler
  • SelectShift auto trans
  • SYNC voice activated communications & entertainment system w/Bluetooth capability
  • steering wheel audio controls
  • USB port
  • audio input jack
  • 911 assist
  • vehicle health report
  • Applink

$450

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • aux audio input jack

XL plus pkg

$450

Starting MSRP

  • AM/FM stereo w/CD player
  • clock
  • aux audio input jack
  • speed compensated volume control
  • customer information display
  • cruise control
  • MyKey system w/top speed limiter
  • audio volume limiter
  • early low fuel warning
  • programmable sound chimes
  • Beltminder w/audio mute

$0

Starting MSRP

  • std equipment
See all packages

$1,150

Starting MSRP

  • pwr locks w/autolock
  • keyless entry key fob
  • pwr windows

Pwr equipment group

$1,150

Starting MSRP

  • pwr locks w/autolock
  • keyless entry key fob
  • pwr windows
  • illuminated entry
  • black pwr mirrors
  • perimeter alarm

Specifications

Spare Wheel Size 17 x 7.5 in
Rear Wheel Material Steel
Front Wheel Material Steel
Front Wheel Size 17 x 7.5 in
Spare Wheel Material Steel
Rear Wheel Size 17 x 7.5 in

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) 155

Engine Oil Cooler N/A
SAE Net Horsepower @ RPM 302 @ 6500
SAE Net Torque @ RPM 278 @ 4000
Displacement 3.7L/227
Engine Type Gas/Ethanol V6

Cruising Range - Hwy 598.00 mi
Fuel Economy Est-Combined 19 MPG
EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - City 442.00 mi
EPA Fuel Economy Est - City 17 MPG
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Description Cont. Again N/A
Transfer Case Power Take Off N/A
Trans Description Cont. Automatic
Second Gear Ratio (:1) 2.34
Trans Power Take Off N/A
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
First Gear Ratio (:1) 4.17
Transfer Case Model N/A
Fifth Gear Ratio (:1) 0.86
Fourth Gear Ratio (:1) 1.14
Third Gear Ratio (:1) 1.52
Sixth Gear Ratio (:1) 0.69
Trans Type 6
Final Drive Axle Ratio (:1) N/A
Reverse Ratio (:1) 3.40

Axle Type - Rear Semi-Float Beam
Suspension Type - Front Double-Wishbone
Axle Type - Front Long-Spindle
Suspension Type - Rear Live Axle

Frame Type Fully Boxed

Disc - Rear (Yes or ) Yes
Brake ABS System (Second Line) N/A
Rear Brake Rotor Diam x Thickness 13.7 x 0.413 in
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.78 x 0.55 in
Drum - Rear (Yes or ) N/A
Brake Type Pwr

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 26.0 gal

Turning Diameter - Curb to Curb 47.0 ft
Steering Type Pwr Rack & Pinion
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A

Spare Tire Size P235/75R17
Rear Tire Size P235/75R17
Front Tire Size P235/75R17

Maximum Trailering Capacity N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. 5800 lbs
Wt Distributing Hitch - Max Tongue Wt. 870 lbs
Wt Distributing Hitch - Max Trailer Wt. 5800 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1450 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs

Base Curb Weight N/A lbs
Curb Weight 5043.00 lbs
As Spec'd Payload 1647.00 lbs
Curb Weight - Front 2884 lbs
Total Option Weight 0.00 lbs
As Spec'd Curb Weight 5053.00 lbs
Curb Weight - Rear 2159 lbs
Option Weight - Rear 0.00 lbs
Option Weight - Front 0.00 lbs
Maximum Payload Capacity 1657.00 lbs
Gross Vehicle Weight Rating 6700.00 lbs
Gross Combined Wt Rating N/A lbs
Gross Axle Weight Rating 7250.00 lbs

Length, Overall N/A in
Overhang, Front 38.3 in
Cargo Volume 65.5 ft³
Cargo Box Length @ Floor 78.8 in
Ground to Top of Load Floor 33.8 in
Cargo Box Width @ Wheelhousings 50.0 in
Second Leg Room 33.3 in
Cab to End of Frame N/A in
Height, Overall 75.2 in
Front Leg Room 41.4 in
Front Hip Room 60.5 in
Second Hip Room 65.4 in
Second Head Room 39.6 in
Length, Overall w/rear bumper N/A in
Tailgate Width 60.3 in
Overhang, Rear w/o bumper N/A in
Ext'd Cab Cargo Volume 40.9 ft³
Passenger Capacity 6
Ground Clearance, Front N/A in
Ground Clearance, Rear N/A in
Cargo Box Width @ Floor 60.3 in
Length, Overall w/o rear bumper 231.9 in
Width, Max w/o mirrors 79.2 in
Front Head Room 41.0 in
Wheelbase 144.5 in
Second Shoulder Room 65.7 in
Front Shoulder Room 65.9 in
Cargo Box (Area) Height 22.4 in
Cargo Box Width @ Top, Rear 60.3 in

AM/FM stereo w/clock Standard

Black front bumper fascia Standard
Fixed rear window Standard
P235/75R17 all-terrain BSW tires (STD) Standard
Under frame winch-type spare tire carrier w/safety catch & lock Standard
Rear solar tint glass Standard
17" gray styled steel wheels Standard
Black door & tailgate handles Standard
Variable interval wipers Standard
Removable tailgate w/key lock & lift assist Standard
Full size spare tire Standard
Black manual side mirrors Standard
Black front/rear stone cuffs Standard
Black grille surround w/black "two-bar style" insert Standard
Argent front/rear step bumper Standard
Cargo lamp integrated w/high mount stop light Standard

Tilt steering column Standard
Black ring w/black vanes air conditioning registers Standard
Dome light Standard
Black vinyl floor covering Standard
Black urethane steering wheel Standard
Display center -inc: warning messages & text functions Standard
60/40 flip-up rear split bench seat Standard
Driver & front passenger door scuff plates Standard
Rear pwr point Standard
Manual air conditioning Standard
Deployable cupholder under center portion of seat Standard
Vinyl 40/20/40 split bench front seat Standard
SecuriLock passive anti-theft system (PATS) Standard
Front pwr point Standard
Sunvisors w/driver side strap, passenger mirror Standard
Gauges -inc: fuel gauge, voltmeter, oil pressure, engine coolant temp, speedometer, tachometer, odometer Standard
Front passenger side A-pillar grab handle Standard

Long-spindle double wishbone front suspension w/coil-over-shock IFS Standard
(4) pickup box tie-down hooks Standard
Pwr front/rear disc brakes Standard
Rear wheel drive Standard
Easy Fuel capless fuel filler system Standard
6700# GVWR, 1600# maximum payload Standard
78-amp/hr (750CCA) maintenance-free battery Standard
6-speed electronic automatic transmission w/OD & tow/haul mode (STD) Standard
3.73 axle ratio (REQ: 99M Engine) Standard
3.7L V6 FFV engine (STD) Standard
Trailer sway control Standard
Leaf spring rear suspension w/2-stage variable rear springs Standard
6.5' pickup box Standard
Pwr rack & pinion steering Standard
2-ton jack Standard
Gas shock absorbers Standard

SOS post crash alert system Standard
AdvanceTrac w/Roll Stability Control (RSC) Standard
Safety Canopy front/rear outboard side curtain airbags Standard
Dual note horn Standard
Dual stage driver & passenger front airbags Standard
Auto lock safety belt feature for child seats Standard
Hill start assist Standard
Anti-lock braking system (ABS) Standard
Tire pressure monitoring system Standard
Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors Standard
Dual stage driver & front passenger seat-mounted side airbags Standard
