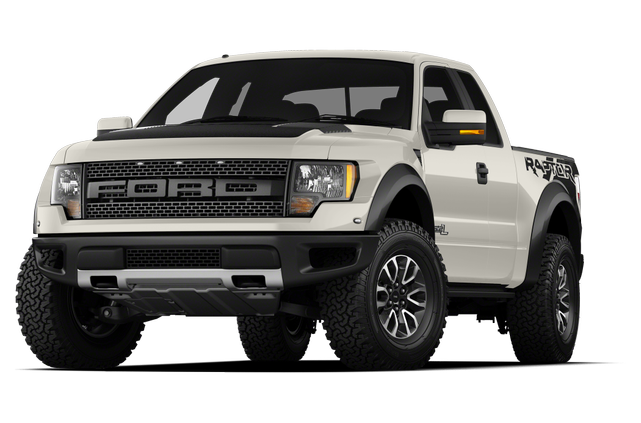

2013 Ford F-150 SVT Raptor specs & colors

Extended Cab Pickup

Change trim

MSRP
Change trim
$44,035
Starting MSRP
Current listing price

Showing the 2013 Ford F-150 4WD SuperCab 133" SVT Raptor

Shop Now

Key specs

Color options

Interior

Ebony

Red / Black

Black

Packages

$900

Starting MSRP

$595

Starting MSRP

  • rear view camera
  • trailer brake controller

$0

Starting MSRP

  • std equipment
See all packages

$4,760

Starting MSRP

  • heated/cooled 10-way pwr 40/console/40 front seats w/driver seat memory
  • dual-zone electronic auto temp control
  • HID headlamps

Luxury equipment group

$4,760

Starting MSRP

  • heated/cooled 10-way pwr 40/console/40 front seats w/driver seat memory
  • dual-zone electronic auto temp control
  • HID headlamps
  • pwr adjustable pedals w/memory
  • voice-activated navigation system w/in-dash screen & SD card for map/POI storage
  • integrated SiriusXM Travel Link w/6-month subscription
  • pwr tilt/telescopic steering column
  • pwr-folding heated exterior mirrors w/integrated turn signals & body-color skull caps
  • driver side auto-dimming exterior mirror
  • mirror memory
  • rearview camera
  • remote start
  • Sony AM/FM stereo w/CD player
  • HD Radio
  • media hub w/(2) USB ports
  • audio/video input jacks
  • SD card reader
  • SYNC services 3-year prepaid subscription w/GPS based turn-by-turn driving directions & traffic reports & info services
  • MyFord Touch w/5-way steering wheel control switch
  • 8" LCD touch screen in center stack
  • trailer brake controller
  • universal garage door opener

Specifications

Spare Wheel Material Steel
Front Wheel Size 17 x 8.5 in
Front Wheel Material Aluminum
Spare Wheel Size 17 x 7.5 in
Rear Wheel Size 17 x 8.5 in
Rear Wheel Material Aluminum

Maximum Alternator Capacity (amps) 155
Cold Cranking Amps @ 0° F (Primary) 750

Displacement 6.2L/379
SAE Net Torque @ RPM 434 @ 4500
SAE Net Horsepower @ RPM 411 @ 5500
Engine Type Gas V8
Engine Oil Cooler N/A

Fuel Economy Est-Combined 13 MPG
EPA Fuel Economy Est - City 11 MPG
Estimated Battery Range N/A mi
Cruising Range - City 396.00 mi
EPA Fuel Economy Est - Hwy 16 MPG
Cruising Range - Hwy 576.00 mi

Trans Description Cont. Automatic
Trans Type 6
Third Gear Ratio (:1) 1.52
Transfer Case Gear Ratio (:1), Low 2.64
Trans Power Take Off N/A
Fourth Gear Ratio (:1) 1.14
Transfer Case Model N/A
Final Drive Axle Ratio (:1) N/A
Second Gear Ratio (:1) 2.34
Transfer Case Power Take Off N/A
Sixth Gear Ratio (:1) 0.69
Fifth Gear Ratio (:1) 0.86
Reverse Ratio (:1) 3.40
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.17
Transfer Case Gear Ratio (:1), High 1.00
Drivetrain Four-Wheel Drive

Axle Type - Rear Semi-Float Beam
Suspension Type - Front Double-Wishbone
Suspension Type - Rear Live Axle
Axle Type - Front Long-Spindle

Frame Type Fully Boxed

Front Brake Rotor Diam x Thickness 13.78 x 0.55 in
Brake ABS System (Second Line) N/A
Rear Brake Rotor Diam x Thickness 13.7 x 0.413 in
Drum - Rear (Yes or ) N/A
Disc - Rear (Yes or ) Yes
Brake Type Pwr
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes

Fuel Tank Capacity, Approx 36.0 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 44.6 ft
Turning Diameter - Wall to Wall N/A ft

Rear Tire Size LT315/70R17
Spare Tire Size LT315/70R17
Front Tire Size LT315/70R17

Wt Distributing Hitch - Max Tongue Wt. 900 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 6000 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs

Maximum Payload Capacity 1046.00 lbs
Gross Axle Weight Rating 7400.00 lbs
Total Option Weight 0.00 lbs
As Spec'd Payload 1042.00 lbs
Gross Vehicle Weight Rating 7050.00 lbs
As Spec'd Curb Weight 6008.00 lbs
Curb Weight - Front 3414 lbs
Gross Combined Wt Rating N/A lbs
Curb Weight 6004.00 lbs
Option Weight - Front 0.00 lbs
Base Curb Weight N/A lbs
Option Weight - Rear 0.00 lbs
Curb Weight - Rear 2590 lbs

Second Head Room 39.6 in
Ext'd Cab Cargo Volume 40.9 ft³
Cargo Volume 55.4 ft³
Height, Overall 78.5 in
Cargo Box Width @ Wheelhousings 50.0 in
Front Leg Room 41.4 in
Second Hip Room 65.4 in
Length, Overall w/o rear bumper 220.6 in
Passenger Capacity 6
Ground Clearance, Front N/A in
Width, Max w/o mirrors 86.3 in
Length, Overall N/A in
Front Head Room 41.0 in
Wheelbase 133.3 in
Cargo Box Width @ Top, Rear 60.3 in
Ground Clearance, Rear N/A in
Overhang, Rear w/o bumper N/A in
Length, Overall w/rear bumper N/A in
Front Hip Room 60.5 in
Cargo Box Width @ Floor 60.3 in
Cab to End of Frame N/A in
Front Shoulder Room 65.9 in
Cargo Box (Area) Height 22.4 in
Ground to Top of Load Floor 36.4 in
Tailgate Width 60.3 in
Second Leg Room 33.3 in
Cargo Box Length @ Floor 67.0 in
Second Shoulder Room 65.7 in
Overhang, Front 38.0 in

AM/FM stereo w/CD player -inc: clock Standard
SiriusXM satellite radio *N/A in AK or HI* Standard
SYNC voice activated communications & entertainment system -inc: Bluetooth capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, Applink *Additional SYNC services available w/annual subscription fee* Standard

Unique front/rear wheel lip moldings Standard
LT315/70R17 all-terrain BSW tires Standard
Pwr sliding rear window Standard
Rear privacy tint glass Standard
Flared front fenders w/air extractors Standard
Full size spare tire Standard
Integrated marker lights Standard
Cast aluminum running boards Standard
17" cast aluminum wheels w/painted & machined finish Standard
Removable tailgate w/key lock & lift assist Standard
Variable interval wipers Standard
Brick wall front grille Standard
Headlamps & tail lamps w/black surround Standard
Pwr side mirrors w/body-color skull caps Standard
Unique front/rear bumper w/painted foundry finish Standard
Hood w/air extractors Standard
Under frame winch-type spare tire carrier w/safety catch & lock Standard
Body-color front bumper fascia Standard

Illuminated entry Standard
Front pwr point Standard
Tilt steering column Standard
Remote keyless entry key Standard
MyFord -inc: 5-way steering wheel control switch, 4.2" LCD audio/climate control screen in center stack, 4.2" LCD productivity screen message center w/trip computer Standard
Cruise control Standard
Unique leather-wrapped steering wheel w/thumb pads Standard
Pwr 1st & 2nd row windows Standard
Console top switches -inc: hill decent, easy off-road mode, aux switch pack Standard
Unique 60/40 flip-up rear split bench seat Standard
Color-coordinated carpet -inc: unique front/rear rubber floor mats w/SVT logo on front mats Standard
Front flow-through console w/floor shifter Standard
Front passenger side A-pillar grab handle Standard
Rear pwr point Standard
Gauges -inc: fuel gauge, voltmeter, oil pressure, engine coolant temp, speedometer, tachometer, odometer Standard
Driver side SecuriCode keyless entry keypad Standard
Unique leather/cloth bucket seats w/6-way pwr driver seat, seat back bolsters Standard
Perimeter alarm Standard
Pwr door locks w/autolock feature Standard
SecuriLock passive anti-theft system (PATS) Standard
Rear window defroster Standard
Manual air conditioning Standard
Unique IP center stack & door trim applique finish Standard

Trailer sway control Standard
6-speed electronic automatic transmission w/OD & tow/haul mode (STD) Standard
6.2L EFI V8 engine (STD) Standard
Pwr rack & pinion steering Standard
4-wheel drive -inc: electronic-shift-on-the fly transfer case (ESOF) Standard
4.10 front axle ratio w/Torsen differential/4.10 electronic-locking rear axle ratio Standard
Hill decent/off-road mode Standard
2-ton jack Standard
7050# GVWR, 980# maximum payload Standard
78-amp/hr (750CCA) maintenance-free battery Standard
5.5' pickup box Standard
Pwr front/rear disc brakes Standard
Flared pickup box outers Standard
Steering rack travel/boost curve Standard
Unique dual outlet muffler Standard
HD front/engine skid plates Standard
Trailer tow pkg -inc: class IV trailer hitch receiver, 7-pin wiring harness, upgraded radiator, aux trans oil cooler, SelectShift auto trans Standard
Front/rear high performance off-road/fox racing shock absorbers Standard
Front/rear tow hooks Standard
Long travel suspension w/unique front upper/lower control arms Standard
Unique tie rods Standard

AdvanceTrac w/Roll Stability Control (RSC) Standard
Dual stage driver & passenger front airbags Standard
Hill start assist Standard
Tire pressure monitoring system Standard
MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute Standard
Safety Canopy front/rear outboard side curtain airbags Standard
Hill descent control Standard
Auto lock safety belt feature for child seats Standard
Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors Standard
Dual note horn Standard
Reverse sensing system Standard
Anti-lock braking system (ABS) Standard
SOS post crash alert system Standard
Dual stage driver & front passenger seat-mounted side airbags Standard
