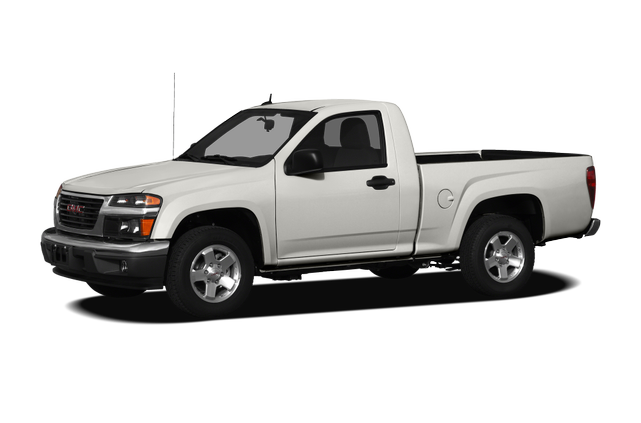

2012 GMC Canyon SLE1 specs & colors

Regular Cab Pickup

Change trim

MSRP

Change trim

$25,305

Starting MSRP
Current listing price

Showing the 2012 GMC Canyon 4WD Reg Cab SLE1

Shop Now

Color options

Exterior

Interior

Ebony

Ebony / Light Cashmere

Packages

Specifications

Estimated Battery Range	N/A mi
Cruising Range - City	342.00 mi
EPA Fuel Economy Est - Hwy	24 MPG
Cruising Range - Hwy	456.00 mi
EPA Fuel Economy Est - City	18 MPG
Fuel Economy Est-Combined	20 MPG

Final Drive Axle Ratio (:1)	N/A
Trans Description Cont.	Automatic
Trans Type	4
Drivetrain	4-Wheel Drive
Fourth Gear Ratio (:1)	0.70
Third Gear Ratio (:1)	1.00
Second Gear Ratio (:1)	1.63
Transfer Case Gear Ratio (:1), High	1.00
First Gear Ratio (:1)	3.06
Transfer Case Gear Ratio (:1), Low	2.48
Reverse Ratio (:1)	2.29
Transfer Case Model	T150

Dead Weight Hitch - Max Trailer Wt.	3100 lbs
Maximum Trailering Capacity	N/A lbs
Dead Weight Hitch - Max Tongue Wt.	310 lbs
Wt Distributing Hitch - Max Tongue Wt.	465 lbs
Wt Distributing Hitch - Max Trailer Wt.	3100 lbs

Option Weight - Rear	0.00 lbs
Total Option Weight	0.00 lbs
As Spec'd Curb Weight	3685.00 lbs
Option Weight - Front	0.00 lbs
Gross Axle Weight Rating	5746.00 lbs
Gross Combined Wt Rating	7000 lbs
Maximum Payload Capacity	1465.00 lbs
As Spec'd Payload	1465.00 lbs
Gross Vehicle Weight Rating	5150.00 lbs
Curb Weight - Rear	1563 lbs
Curb Weight - Front	2122 lbs
Curb Weight	3685.00 lbs
Base Curb Weight	N/A lbs

Ground Clearance, Rear	10.2 in
Front Leg Room	44.0 in
Front Shoulder Room	57.1 in
Passenger Capacity	3
Cargo Box Length @ Floor	72.8 in
Front Hip Room	53.3 in
Height, Overall	67.9 in
Second Leg Room	N/A in
Second Hip Room	N/A in
Tailgate Width	52.4 in
Ground to Top of Load Floor	35.7 in
Cargo Box Width @ Floor	57.2 in
Length, Overall	N/A in
Cargo Box Width @ Wheelhousings	42.6 in
Overhang, Front	33.9 in
Wheelbase	111.3 in
Length, Overall w/rear bumper	N/A in
Width, Max w/o mirrors	68.6 in
Cargo Volume	44.0 ft³
Overhang, Rear w/o bumper	N/A in
Ground Clearance, Front	10.2 in
Second Head Room	N/A in
Front Head Room	39.6 in
Cargo Box (Area) Height	18.6 in
Second Shoulder Room	N/A in
Length, Overall w/o rear bumper	192.4 in
Cab to End of Frame	N/A in

Suspension Package, Heavy-Duty	Standard
Coat hook, driver-side rear	Standard
Tire, compact spare (Not available with (Z71) High-Stance Off-Road Suspension Package.)	Optional
GVWR, 5150 lbs. (2336 kg) (4WD Regular Cab models only. Refer to the Engine and Axle section for compatibility requirements. Must specify.)	Optional
Warning tones headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active	Standard
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, engine temperature, tachometer and Driver Information Center	Standard
Bumpers, front and rear chrome with a Dark Smoke Gray pad on the rear step-style bumper	Standard
Steering, power, rack-and-pinion	Standard
Front underbody shield (Standard on 4WD models. Included and only available with (LH9) 5.3L V8 SFI engine and (Z71) High Stance Off-Road Suspension Package on 2WD Crew Cab models.)	Optional
Air conditioning, single-zone manual	Standard
Four wheel drive	Standard
Floor covering, Ebony carpeting	Standard
Power outlets, 2 auxiliary, covered, 12-volt	Standard
Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)	Standard
Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders	Standard
Mirrors, outside power-adjustable, manual-folding, body-color	Optional
Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 4 cargo tie-downs, tailgate, 2-position (Locking feature not available on Regular or Extended Cab models.)	Standard
OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)	Standard
Bluetooth for Phone (Deleted when (UE0) OnStar delete is ordered.)	Standard
Wheels, 4 - 16" x 6" (40.6 cm x 15.2 cm) aluminum (Included and only available on 2WD models with (LH9) 5.3L V8 SFI engine. Packaged on 4WD Regular and Extended Cab models. Standard on 4WD Crew Cab models. Not available on 2WD Regular or Extended Cab models.)	Optional
Cruise control	Standard
Wipers, front intermittent with washers	Standard
Suspension, front independent with torsion bar (Not available on 2WD Regular Cab models. Standard on 4WD models. Included with (Z71) High Stance Off-Road Suspension Package. Included on 2WD Extended and Crew Cab models with (Z85) Heavy-Duty Suspension Package and (LH9) 5.3L V8 SFI engine.)	Optional
Tires, P235/75R16 all-season, blackwall (Not available on 2WD Regular Cab models. Standard on 4WD models with (Z85) Heavy-Duty Suspension Package and (ZCY) compact spare tire or (ZNF) P235/75R16 on-/off-road blackwall spare tire. Included and only available on 2WD models with (LH9) 5.3L V8 SFI engine, (Z85) Heavy-Duty Suspension Package and (ZNF) P235/75R16 on-/off-road blackwall spare tire.)	Optional
Safety belts, 3-point, driver and right-front passenger, adjustable (center position lap belt with bench seat only)	Standard
Audio system feature, uplevel speaker system	Standard
Tire Pressure Monitor	Standard
Power Convenience Package with power windows, power door locks with lockout protection, Remote Keyless Entry, (DE6) outside power-adjustable, manual-folding mirrors and (DF5) inside rearview auto-dimming mirror with compass and temperature display	Optional
Audio system, AM/FM stereo with CD/MP3 player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab	Optional
Door trim, integral armrests and driver- and front passenger-side map pockets with padded cloth inserts	Standard
Assist handle, front passenger (Regular and Extended Cab models only.)	Optional
Daytime Running Lamps with automatic exterior lamp control	Standard
Theft-deterrent system, vehicle, PASSlock	Standard
Mirror, inside rearview auto-dimming with compass and outside temperature display	Optional
Recovery hooks, 2 front, frame-mounted (Not available on 2WD Regular Cab models. Standard on 4WD models. Included and only available with (Z71) High-Stance Off-Road Suspension Package on 2WD Extended and Crew Cab models.)	Optional
Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror	Standard
Air bags, frontal, driver and right-front passenger with Passenger Sensing System (A note about child safety: Always use safety belts and the correct child restraint for your child's age and size. Even with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See your vehicle Owner's Handbook for more information.)	Standard
Transmission, 4-speed automatic, electronically controlled with overdrive (Refer to the Engine and Axle section for compatibility requirements. Must specify.)	Optional
Seats, front 60/40 split-bench with (J) Deluxe Cloth, manual recliners, integral outboard head restraints, armrest with integral storage and dual cup holders**	Standard
Fog lamps, front, halogen	Optional
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver and front passenger-side glass)	Optional
Engine, 3.7L DOHC 5-cylinder SFI (242 hp [180.4 kW] @ 5600 rpm), 242 lb-ft [326.7 N-m] @ 4600 rpm) (Standard on 4WD Regular and Crew Cab models. Refer to the Engine and Axle section for compatibility requirements. Must specify.)	Optional
Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection	Standard
Differential, automatic locking rear (Standard on 4WD. Standard on Crew Cab models. Available on 2WD Extended Cab models.)	Optional
Alternator, 125 amps	Standard
Brakes, 4-wheel antilock, front disc/rear drum	Standard
Fascia, front Dark Smoke Gray	Standard
Suspension, rear semi-floating axle with 2-stage multi-leaf springs	Standard
Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)	Standard
StabiliTrak (Includes traction control.)	Standard
OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock, Turn-by-Turn Navigation with OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)	Standard
Air dam, Ebony	Standard
SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)	Optional
Rear axle, 3.73 ratio (Refer to the Engine and Axle section for compatibility requirements. Must specify.)	Standard
Tailgate, 2-position	Standard
Floor mats, rubberized-vinyl front and rear	Standard
Air bags, head curtain side-impact, front and rear outboard seating positions with Passenger Sensing System (Head Curtain Side Air Bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. A note about child safety: Always use safety belts and the correct child restraint for your child's age and size. Even with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See your vehicle Owner's Handbook for more information.)	Standard
Bedliner	Standard
Transfer case, Insta-Trac electronic shift with dash-mounted controls (4WD models only.)	Standard
Steering column, Tilt-Wheel	Standard
Steering wheel, leather-wrapped	Standard

Compare trims

Wondering which trim is right for you?

Our 2012 GMC Canyon trim comparison will help you decide.

Spare Wheel Material	Steel
Front Wheel Size	16 x 6 in
Spare Wheel Size	Compact in
Rear Wheel Size	16 x 6 in
Rear Wheel Material	Aluminum
Front Wheel Material	Aluminum

SAE Net Horsepower @ RPM	242 @ 5600
Engine Type	Gas I5
SAE Net Torque @ RPM	242 @ 4600
Displacement	3.7L/226

Axle Type - Rear	Semi-Floating
Suspension Type - Front	Torsion Bar
Suspension Type - Rear	2-Stage Multi-Leaf
Axle Type - Front	Independent

Brake ABS System	4-Wheel
Front Brake Rotor Diam x Thickness	11.2 x 1.6 in
Disc - Front (Yes or )	Yes
Drum - Rear (Yes or )	Yes
Brake Type	Pwr

Steering Ratio (:1), Overall	N/A
Steering Type	Pwr
Turning Diameter - Wall to Wall	N/A ft
Turning Diameter - Curb to Curb	40.7 ft

Cold Cranking Amps @ 0° F (Primary)	590
Maximum Alternator Capacity (amps)	125

Spare Tire Size	Compact
Rear Tire Size	P235/75R16
Front Tire Size	P235/75R16
