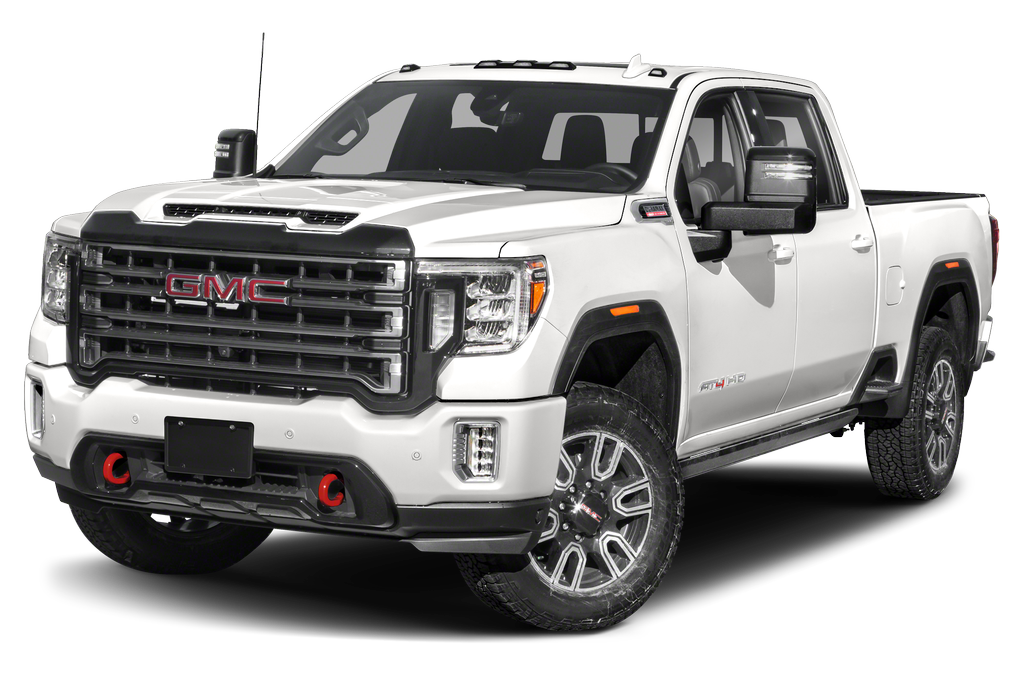

GMC Sierra 3500

Starts at:
$43,400
2WD Reg Cab 142" Pro 2WD Double Cab 162" Pro 4WD Reg Cab 142" Pro 2WD Crew Cab 159" Pro 2WD Crew Cab 172" Pro 4WD Double Cab 162" Pro 2WD Reg Cab 142" SLE 4WD Crew Cab 159" Pro 4WD Crew Cab 172" Pro 2WD Double Cab 162" SLE 4WD Reg Cab 142" SLE 2WD Crew Cab 159" SLE 2WD Crew Cab 172" SLE 4WD Double Cab 162" SLE 4WD Crew Cab 159" SLE 4WD Crew Cab 172" SLE 2WD Crew Cab 159" SLT 2WD Crew Cab 172" SLT 4WD Crew Cab 159" SLT 4WD Crew Cab 172" SLT 4WD Crew Cab 159" AT4 4WD Crew Cab 172" AT4 4WD Crew Cab 159" Denali 4WD Crew Cab 172" Denali Compare all trims
New 2023 GMC Sierra 3500
2WD Reg Cab 142" Pro 2WD Double Cab 162" Pro 4WD Reg Cab 142" Pro 2WD Crew Cab 159" Pro 2WD Crew Cab 172" Pro 4WD Double Cab 162" Pro 2WD Reg Cab 142" SLE 4WD Crew Cab 159" Pro 4WD Crew Cab 172" Pro 2WD Double Cab 162" SLE 4WD Reg Cab 142" SLE 2WD Crew Cab 159" SLE 2WD Crew Cab 172" SLE 4WD Double Cab 162" SLE 4WD Crew Cab 159" SLE 4WD Crew Cab 172" SLE 2WD Crew Cab 159" SLT 2WD Crew Cab 172" SLT 4WD Crew Cab 159" SLT 4WD Crew Cab 172" SLT 4WD Crew Cab 159" AT4 4WD Crew Cab 172" AT4 4WD Crew Cab 159" Denali 4WD Crew Cab 172" Denali Compare all trims

Your message was sent. You'll receive a response shortly.

Key specifications

Highlights
20,000 lbs
Towing Capacity
98 in
Bed Length
Gas V8
Engine Type
401 hp 445 hp
Horsepower
Engine
Gas V8
Engine Type
6.6L/-TBD-
Displacement
401 @ 5200
SAE Net Horsepower @ RPM
464 @ 4000
SAE Net Torque @ RPM
Suspension
N/A
Axle Type - Rear
Independent
Axle Type - Front
3-Stage Multi-Leaf
Suspension Type - Rear
Short/Long Arm w/Torsion Bars
Suspension Type - Front
Weight & Capacity
10,750 lbs
Gross Vehicle Weight Rating
0 lbs
Total Option Weight
6,339 lbs
Curb Weight
11,650 lbs
Gross Axle Weight Rating
Safety
Standard
Stability Control
Standard
Backup Camera
Entertainment
Standard
Apple CarPlay®/Android Auto®
Standard
Bluetooth®
Electrical
720
Cold Cranking Amps @ 0° F (Primary)
170
Maximum Alternator Capacity (amps)
Brakes
N/A
Drum - Rear (Yes or )
14.1 x 1.3 in
Rear Brake Rotor Diam x Thickness
14 x 1.6 in
Front Brake Rotor Diam x Thickness
Yes
Disc - Rear (Yes or )

Engine

Gas V8 Engine Type
6.6L/-TBD- Displacement
401 @ 5200 SAE Net Horsepower @ RPM
464 @ 4000 SAE Net Torque @ RPM

Suspension

N/A Axle Type - Rear
Independent Axle Type - Front
3-Stage Multi-Leaf Suspension Type - Rear
Short/Long Arm w/Torsion Bars Suspension Type - Front

Weight & Capacity

10,750 lbs Gross Vehicle Weight Rating
0 lbs Total Option Weight
6,339 lbs Curb Weight
11,650 lbs Gross Axle Weight Rating
N/A Aux Fuel Tank Capacity, Approx
36 gal Fuel Tank Capacity, Approx
N/A Base Curb Weight
3,440 lbs Curb Weight - Front
2,899 lbs Curb Weight - Rear
0 lbs Option Weight - Front
0 lbs Option Weight - Rear
6,352 lbs As Spec'd Curb Weight
4,398 lbs As Spec'd Payload
4,411 lbs Maximum Payload Capacity
24,000 lbs Gross Combined Wt Rating
5,000 lbs Dead Weight Hitch - Max Trailer Wt.
500 lbs Dead Weight Hitch - Max Tongue Wt.
14,500 lbs Wt Distributing Hitch - Max Trailer Wt.
1,450 lbs Wt Distributing Hitch - Max Tongue Wt.
17,200 lbs Fifth Wheel Hitch - Max Trailer Wt.
4,300 lbs Fifth Wheel Hitch - Max Tongue Wt.
20,000 lbs Maximum Trailering Capacity

Safety

Standard Stability Control
Standard Backup Camera

Entertainment

Standard Apple CarPlay®/Android Auto®
Standard Bluetooth®

Electrical

720 Cold Cranking Amps @ 0° F (Primary)
170 Maximum Alternator Capacity (amps)

Brakes

N/A Drum - Rear (Yes or )
14.1 x 1.3 in Rear Brake Rotor Diam x Thickness
14 x 1.6 in Front Brake Rotor Diam x Thickness
Yes Disc - Rear (Yes or )
Yes Disc - Front (Yes or )
N/A Brake ABS System (Second Line)
4-Wheel Brake ABS System
Pwr Brake Type

Photo & video gallery

2023 GMC Sierra 3500 2023 GMC Sierra 3500 2023 GMC Sierra 3500 2023 GMC Sierra 3500 2023 GMC Sierra 3500

Factory warranties

Basic
3 years / 36,000 miles
Corrosion
3 years / 36,000 miles
Powertrain
5 years / 60,000 miles
Roadside Assistance
5 years / 60,000 miles

Design your vehicle

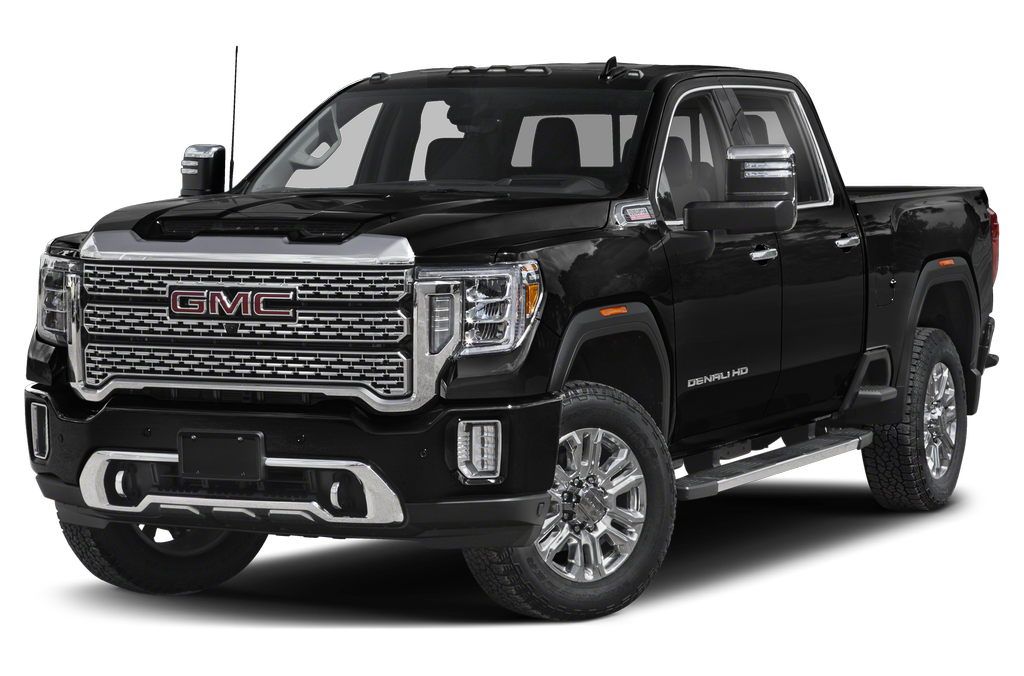

Black 2023 GMC Sierra 3500
